CS-974A1 Motorcycle Scooter Smart Three Gear Temperature Control Electric Hand Grip Cover Heated ...

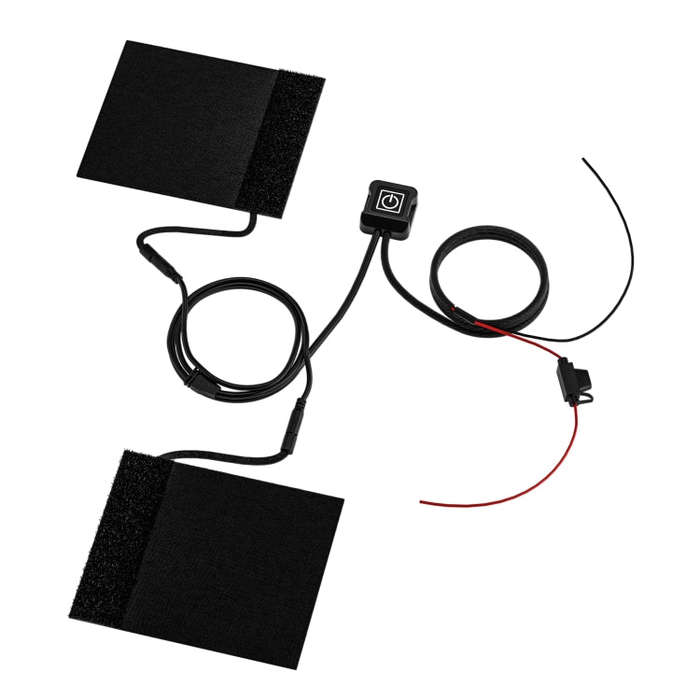

1. Cable length: 108CM (heating film to switch), 146CM (switch to electric door lock)
2. Product material: composite fiber heating wire + black non-woven fabric, (L bracket) stainless steel
3. Input voltage: DC12V
4. Power: high-end 20W, mid-range 15W, low-end 10W
5. Installation method: 3M glue sticking and fixing, L bracket lens holder fixing
6. Wiring method: red connect to the positive pole, black connect to the negative pole (the lamp does not turn on when it is connected reversely, only heating)
7. Operating instructions: power on: red light, blue light and green light each flash once and then go out
8. Standby: the red light is breathing and flashing, the temperature reaches a certain temperature and it will automatically turn to blue
9. Working status: indicator light is always on (high-end: red light is always on, mid-range: blue light is always on, low-end, green light is always on)
10. Switch gears: click the switch button to switch gears
11. Note: the positive and negative poles are connected reversely, the switch cannot be used, and the heating element directly heats up
12. Kevlar material, faster heating, more uniform heating, successfully passed 8000 wear tests
13. Built-in intelligent temperature control chip, three-speed adjustable temperature, intelligent temperature control is safer
14. 10 seconds rapid heating, large heating area

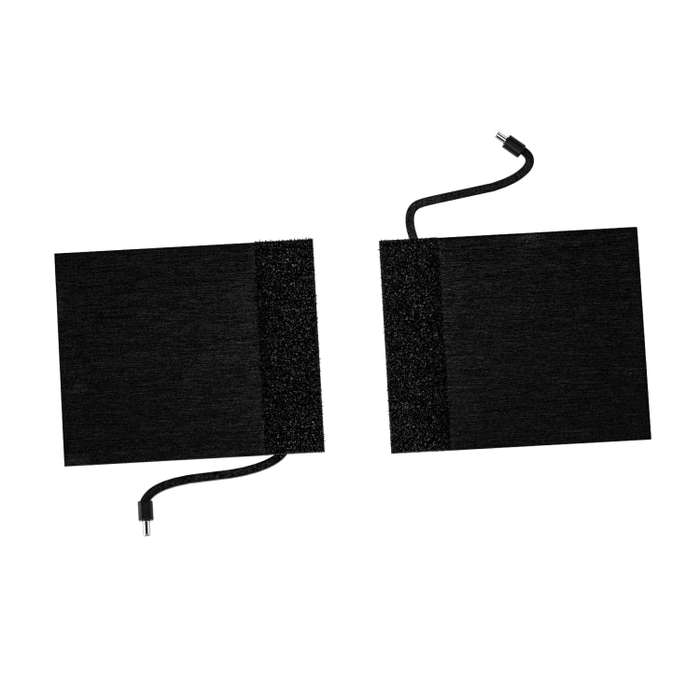

15. The heating sheet is fixed by hook and loop fastener, which is convenient and quick
16. IP67 waterproof rating, even if the switch and handle cover are soaked in water, they can work normally. When the handle cover needs to be cleaned, only unplug the plug and wash with water, which is very convenient

Pay attention:
1. Please select the appropriate gear according to the ambient temperature. When the hand temperature is too low to accurately sense the temperature of the electric hand grip under low temperature conditions, please use the low or middle gear first to prevent high temperature burn
3. This product can only be installed on the handlebar of a motorcycle to be powered on. Before installation, you can use a battery to test whether the product is properly powered on.
4. It is strictly forbidden to work with electricity (air burn) when not riding, in order to prevent the temperature of the electric heating handlebar cover from being too high and damaging the original handlebar.
5. It is recommended to connect the electric door lock wire. Most models have black positive pole and green negative pole. It is recommended to use a multimeter to measure the specific situation.
