Specifications:

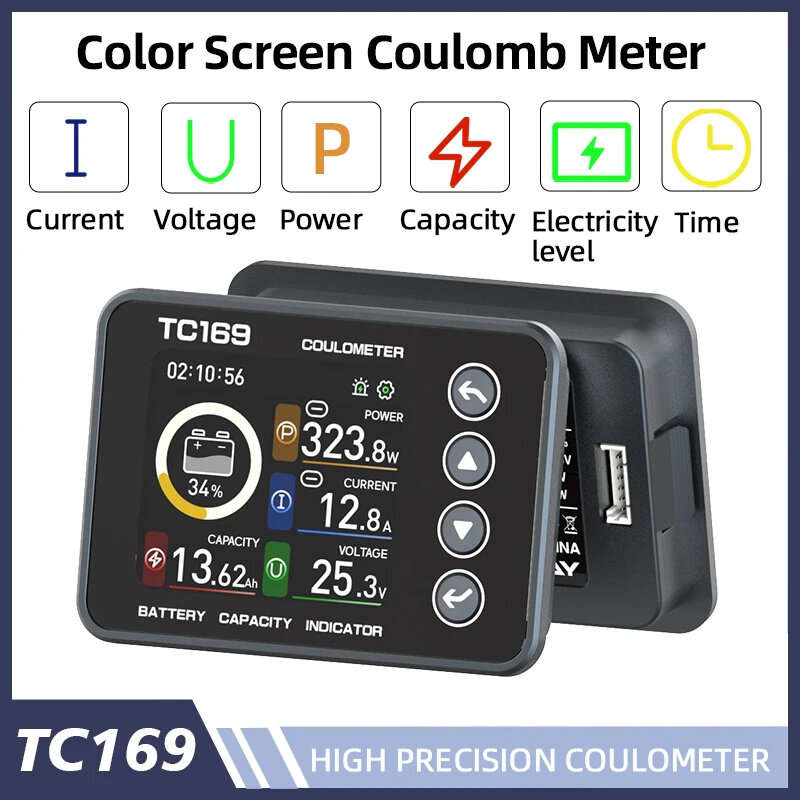

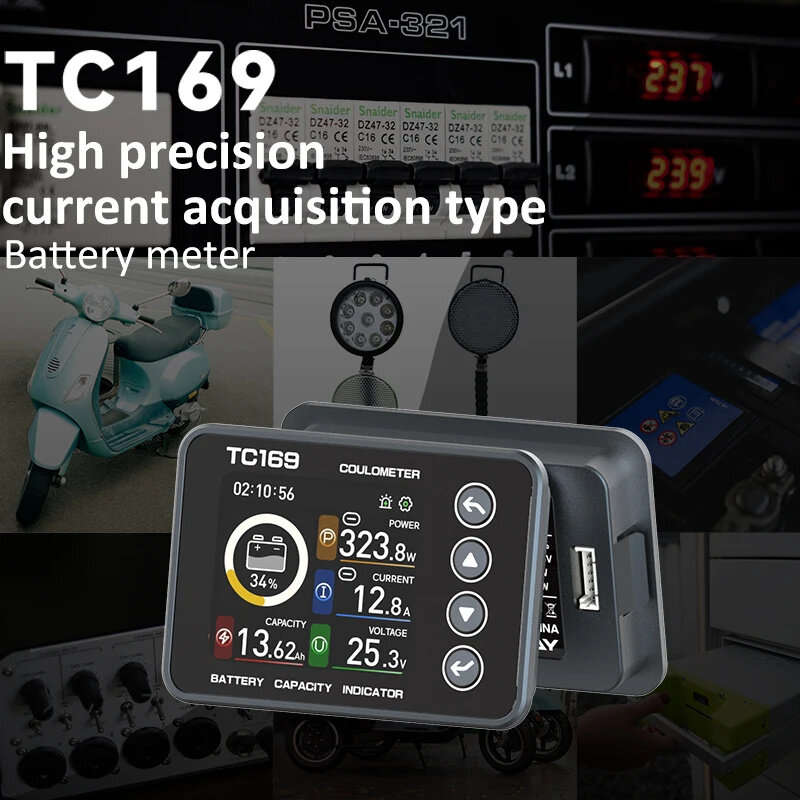

Model: TC169
Voltage Applicable Range: 6-60V
Display Screen: 280 x 240 pixels high color gamut
Current Applicable Range: CS30: 0-30A, CS50: 0-75A
Maximum Current Resolution: 1mA (0.001A)
Display Content: Current, voltage, SOC (percentage), capacity, power, remaining time, sampling temperature, charging and discharging status
Working Power Consumption: 200-300mW
Sleep Power Consumption: 5.0-50mW
Features:
Highly Accurate Monitoring: Precisely measures voltage, current, power, capacity, and remaining time, keeping you informed of battery status.
Color Display: High-resolution 280 x 240 pixel color screen offers clear real-time data visualization.

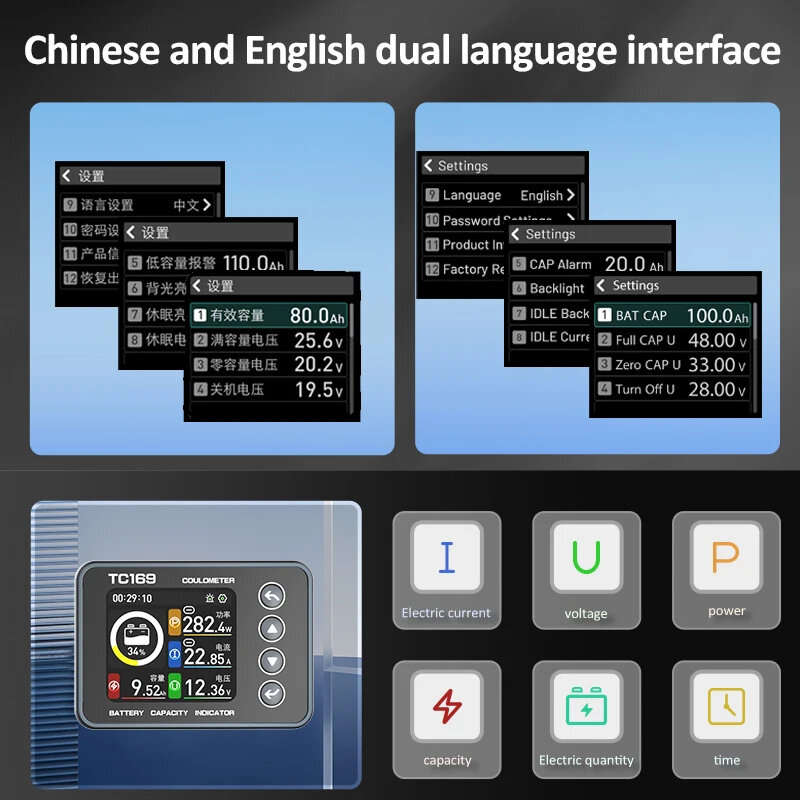

Customizable Settings: Supports custom low capacity alarms, zero/full capacity voltage settings, and brightness adjustments.
Multiple Current Ranges: Available in CS30 (0-30A) and CS50 (0-75A) models to suit different applications.
Energy Efficient: Low working power consumption (200-300mW) and extremely low sleep power consumption (5.0-50mW).
Package Included:
Type A:
1 x Battery Tester (0~30A)
1 x B+ Connection Wire
1 x Plug Connection Wire
2 x Copper Nose
1 x User Manual
Type B:
1 x Battery Tester (0~75A)
1 x B+ Connection Wire
1 x 2m Shield Wire
1 x User Manual
