CSR8645 HIFI bluetooth 4.0 12V Receiver Board for Car Amplifier Speaker Dual 5W Speaker Audio Lossle

Features:

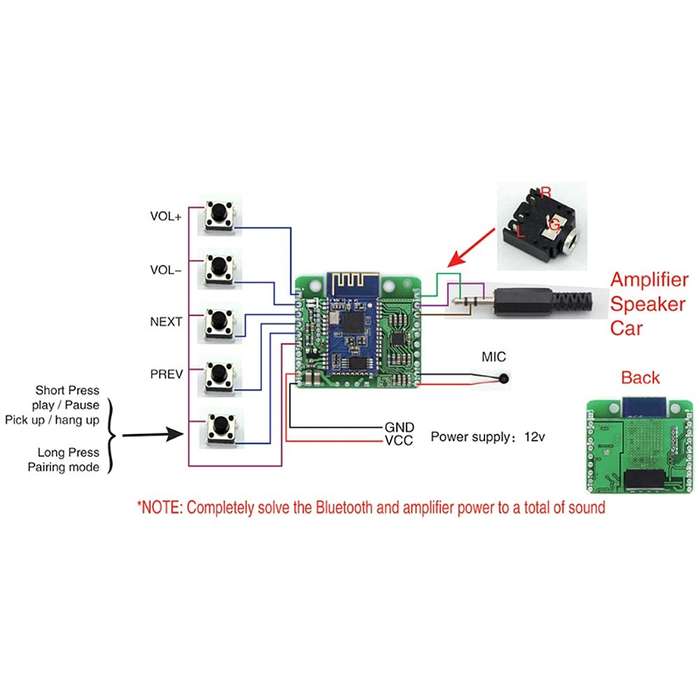

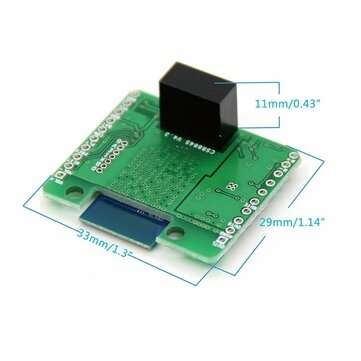

GND and VCC are 12V power supply Using TI amp TPA6132,better sound quality GND and BAT are powered by a 3.7V lithium battery With call function,CSR8645 low power consumption, power on the boot,the default volume of the largest OUTL,AGND,OUTR for the balanced output,can be directly connected headphones,amplifiers,audio and other input devices COM is the common side of the key,the other end of the key are then VOL+,VOL-, PREV,NEXT,PLY M + and M- is the positive and negative of the microphone Can be connected at the same time two mobile phones (the only way: boot automatically back to the chain of the final match the phone, the penultimat pair of mobile phone to be manually connected) Size:3.3x2.9cm/1.3x1.14inch
Package Included:
1x CSR8645 Amplifier Board
