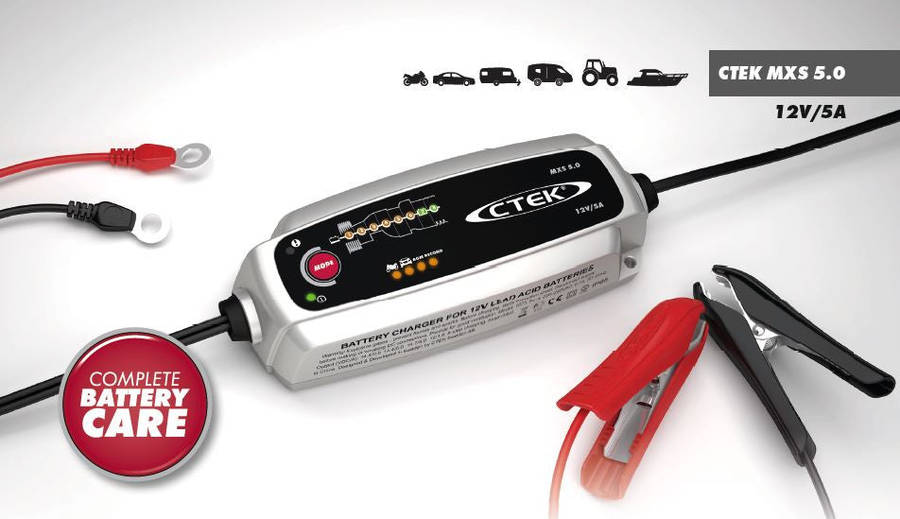

CTEK MXS 5.0

The MXS 5.0 is an advanced microprocessor controlled battery charger
with automatic temperature compensation built in providing unrivalled
performance on lead-acid batteries from 1.2Ah up to 110Ah. The MXS 5.0
solves a broad range of battery problems and is the ideal charger for the
user with high demands. Features of the MXS 5.0 include diagnosis of
battery condition to establish if it can receive and retain charge, patented
automatic desulphation step and a special reconditioning step that will
revive and restore deeply discharged and stratified batteries. AGM option
is perfect for maximising performance and life of most Stop - Start batteries.
The built in temperature compensation ensures ideal charging performance
even in the most extreme conditions. Patented Float/Pulse maintenance
makes the MXS 5.0 ideal for long - term maintenance. The entire process of
battery testing, charging and maintenance is easily followed on the clear
LED display.
The MXS 5.0 is a fully automatic "connect and forget" 12V charger with
8 charging steps and offers selectable programmes. The
RECOND and AGM options operate individually or together in both
programmes providing great flexibility for the user. Wide charging
range on all lead-acid battery types from 1.2Ah up to110Ah with additional
maintenance capability to 160Ah. Splash proof and dust proof (IP65). The
MXS 5.0 is easy and safe to use, protects vehicle electronics, is spark-free,
reverse polarity protected and short circuit proof. The MXS 5.0 features a
5- year warranty.

TECHNICAL DATA
CHARGING VOLTAGE 14.4/14.7/15.8V
CHARGING CURRENT Max 5A
TYPE OF CHARGER 8 step, fully automatic charging cycle
TYPE OF BATTERY 12V lead-acid batteries
BATTERY CAPACITY 1.2110Ah, up to 160Ah for maintenance
INSULATION IP65 (splash and dust proof)
TEMPERATURE COMP. Built In
