cudy 10-Port Unmanaged PoE+ Switch

cudy 10-Port Unmanaged PoE+ Switch

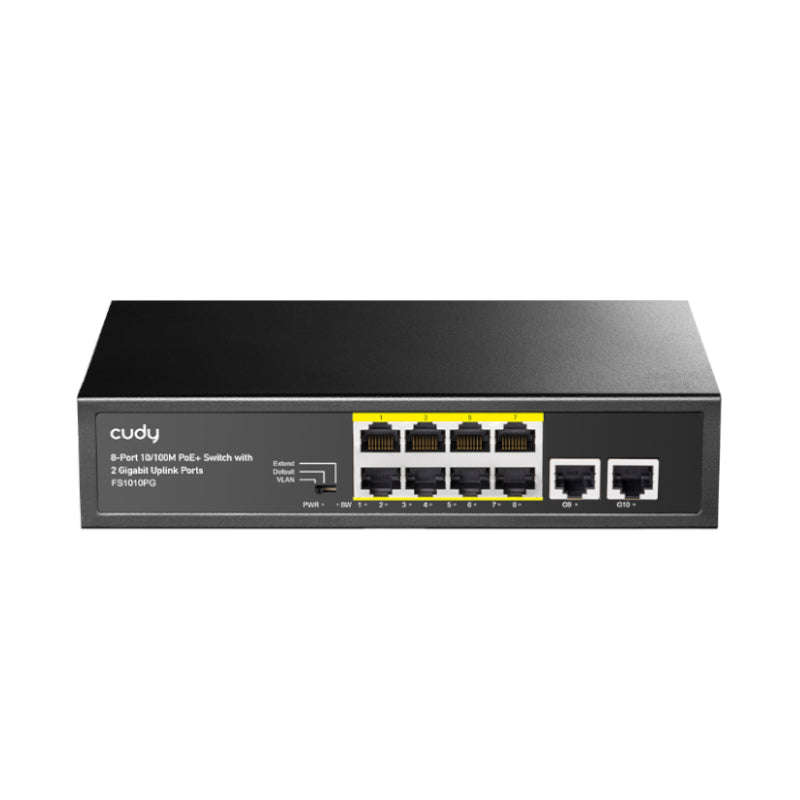

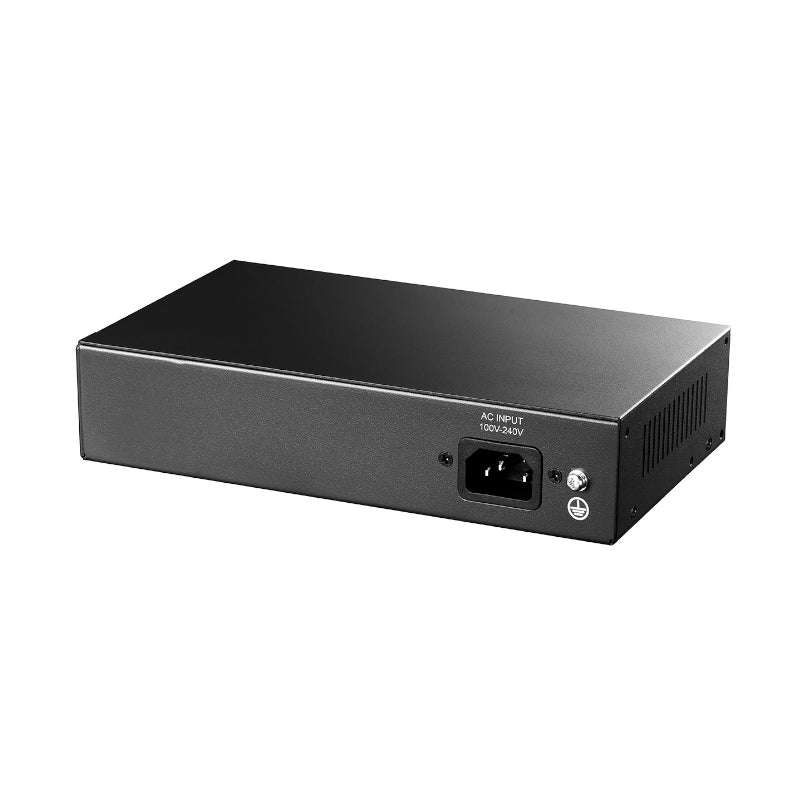

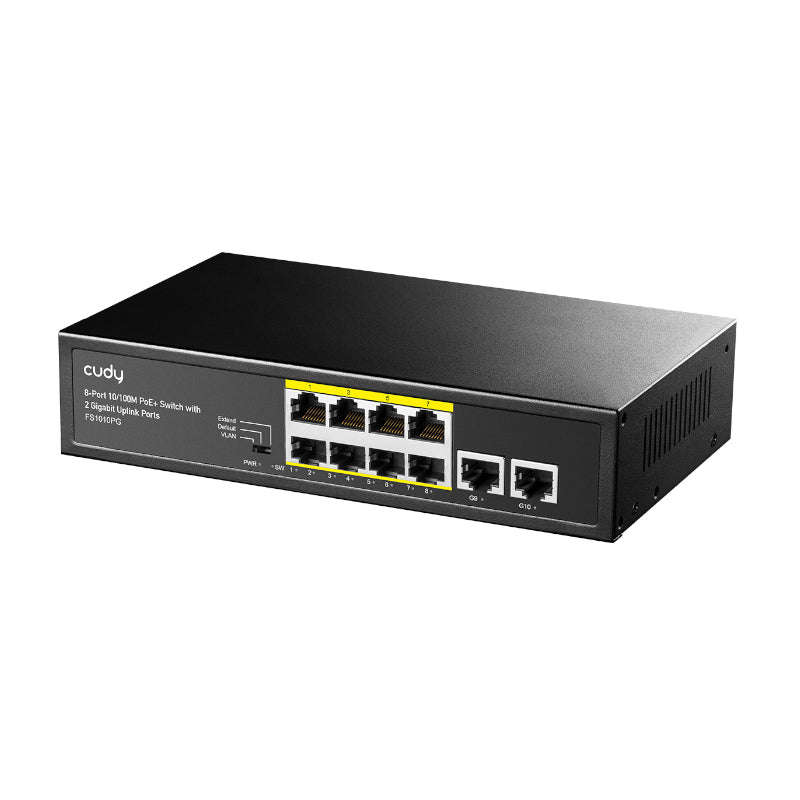

The Cudy FS1010PG 10-Port 10/100M PoE+ Switch allows you to manage your home or office network with ease. It features 8 Ethernet PoE ports and 2 uplink ports. Its RJ-45 connectors support any 10/100Mbps Ethernet devices and its compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy FS1010PG works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a built-in fan and venting holes to help dissipate heat quickly and ensure stable product operation. The Cudy FS1010PG can also be easily mounted to a wall or onto a rack to make installation more convenient.

Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

FEATURES:
Support IEEE802.3at and IEEE802.3af Standard
120W PoE power output totally, up to 32W for one PoE port
Support IEEE802.3x full-duplex and half-duplex ow control
Support VLAN and CCTV Function
Panel lights to monitor working state and help fault analysis
Perfect security mechanism
Line-speed forwarding intelligent identication

SPECIFICATIONS:
PoE standard: IEEE802.3af/at
Interface: 10 x 10/100Mbps The RJ45 port through consultation
Key function: CCTV&VLAN
PoE port: 1~8 port
PoE Total: 120W
Power supply: 120W
RJ45 PoE power supply: Mode A, Anode1/2, Cathode3/6
PoE output-port: Max 32W
Indicator: PWR, LNK/ACT, PoE
Network media:
10BASE-T: UTP category 3, 4, 5 cable(100m)
100BASE-TX: UTP category 5, 5e cable(100m)
MAC Address Table: 8K, Automatic study, automatic updates
Jumbo frame: 1528Bytes
Packet Neck Scarfer: 2M bit
Transfer Mode: Store-and-forward
Packet forwarding rate: 1.48Mpps
Bandwidth: 2M bit
Fan: Fanless
Mains Input: 100~240V AC, 50/60Hz
Green energy saving: Support IEEE802.3az)
Surge Protection: 4KV
MTBF: >50000 hour
Electrostatic standard: Contact 4KV, air 6KV
Colour: Grey
Product Dimensions: 22 x 15 x 4.4 cm
Product Weight: 1000g

WHAT'S IN THE BOX:
Cudy FS1010PG 10-Port 10/100M PoE+ Switch Grey x1
Power Adapter x1
