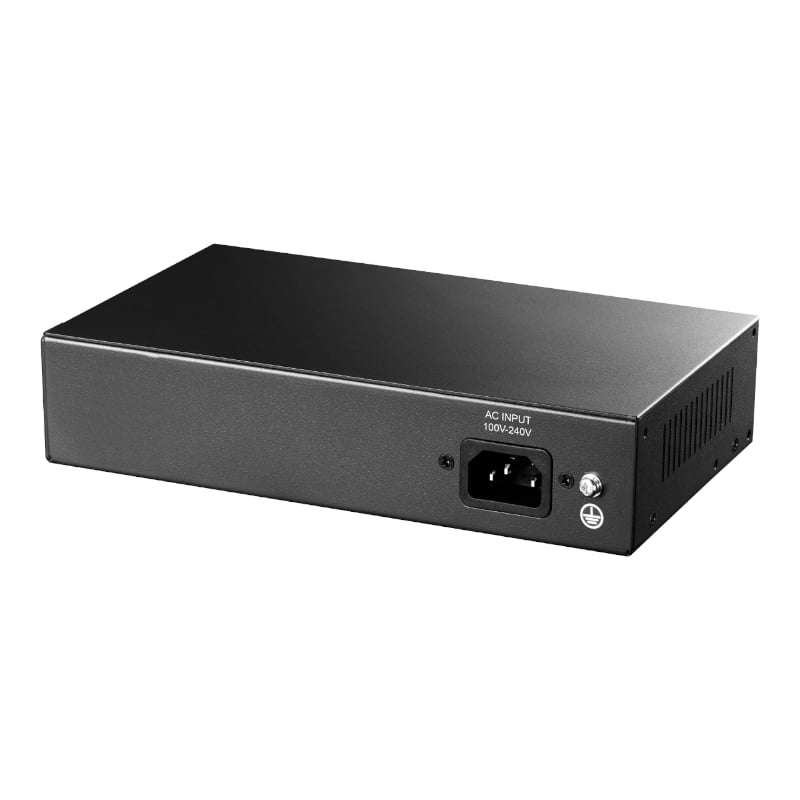

Cudy 10-Port Unmanaged PoE+ Switch

The Cudy FS1010P 10-Port 10/100M PoE+ Switch makes it easy to manage your homeor office network. It ensures safe operation for non-standard PoE devices whileconforming to the IEEE802.3af/at standards, with a total PoE power capacity of120 W and the ability to deliver up to 30 W of power to a single PoE port.The PoE watchdog feature monitors the connectivity status of remote PoE devicesin real-time. If an issue with a remote PoE device is detected, the PoE switchimmediately performs a restart to restore normal operation.It's a simple, plug-and-play solution that's really easy to use. Its fanlessdesign ensures silent operation, and the long-lasting metal case provideslongevity and excellent heat dissipation, making it suited for a variety ofsituations.The pin assignment is as follows: 1/2 (positive), 3/6 (negative), making itcompatible with a wide range of devices. It works well with IP cameras in boththe home and workplace, VoIP phones for professional conferences, and WiFiaccess points for office and commercial applications.FEATURES: * Support IEEE802.3at and IEEE802.3af Standard * 120W PoE power output, up to 32W for one PoE port * Support IEEE802.3x full duplex and half duplex ow control * Support VLAN and CCTV Function * Panel lights to monitor working state and help fault analysis * Perfect security mechanism * Line-speed forwarding intelligent identicationSPECIFICATIONS: * PoE standard: IEEE802.3af/at * Interface: 10*10/100Mbps The RJ45 port through consultation * Key function: CCTV&VLAN * PoE port: 1~8 port * PoE Total: 120W * Power supply: 120W * RJ45 PoE power supply: Mode A, Anode1/2, Cathode3/6 * PoE output-port: Max 32W * Indicator: PWR, LNK/ACT, PoE * Network media: * 10BASE-T: UTP category 3, 4, 5 cable(100m) * 100BASE-TX: UTP category 5, 5e cable(100m)； * MAC Address Table: 8K, Automatic study, automatic updates * Jumbo frame: 1528Bytes * Packet Neck Scarfer: 2M bit * Transfer Mode: Store-and-forward * Packet forwarding rate: 1.48Mpps * Bandwidth: 2M bit * Fan: Fanless * Mains Input: 100~240V AC, 50/60Hz * Surge Protection: ±4KV * MTBF: >50000 hour * Electrostatic standard: Contact 4KV, air 6KV * Colour: Grey * Product Dimensions: 20 x 18 x 4.4 cm * Product Weight: 1000gWHAT'S IN THE BOX: * Cudy FS1010P 10-Port 10/100M PoE+ Switch - Grey x1 * Power Adapter x1
