Cudy 16 Port Gigabit PoE 190W 2SFP Combo Switch | GS1020PS2

Cudy 16 Port Gigabit PoE 190W 2SFP Combo Switch | GS1020PS2

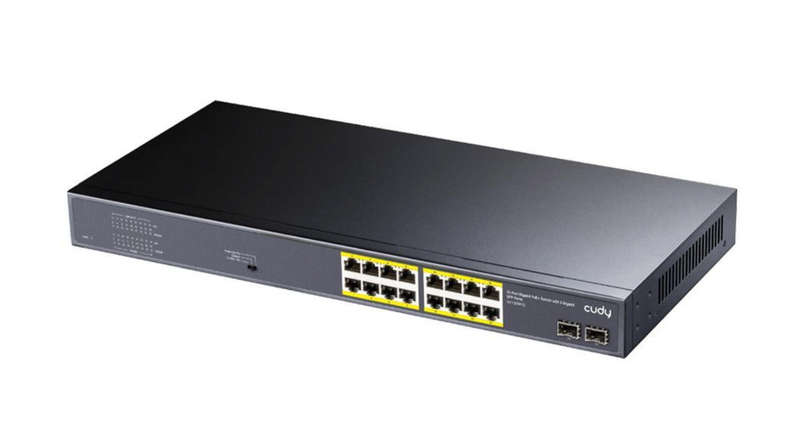

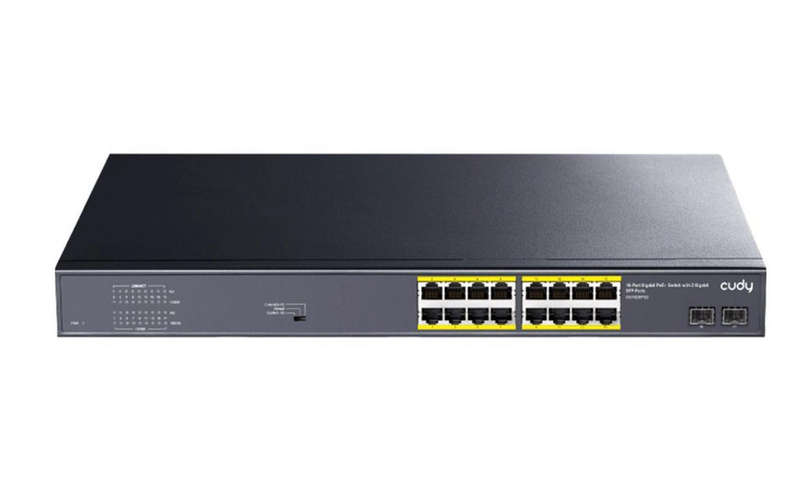

Cudy's CD-FS1020PS is a 16 Port Gigabit switch with 16x 802.3af/at PoE ports and 2x SFP Combo Uplink ports.
The switch offers a 190W PoE budget, up to 30W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-16 while Extender mode increases the transmission distance on ports 1-16 to 250m at 10Mbps.
The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.

Ethernet Ports: 16x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 10W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~16

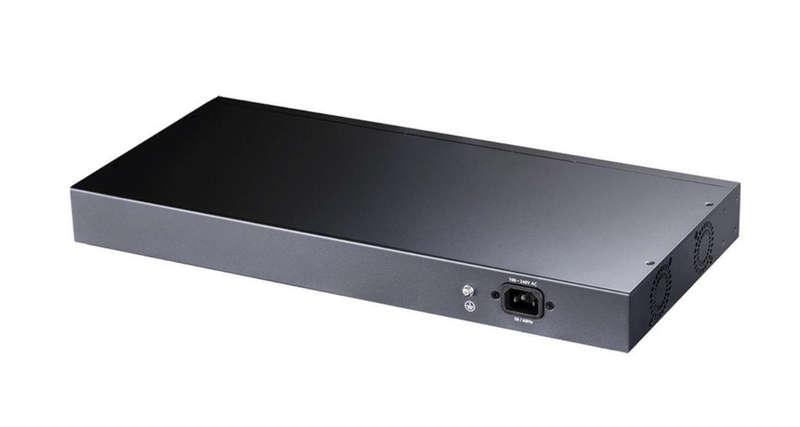

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps (Combo)
Supported Voltage Range: 100-240V

Dimensions: 440 x 210 x 40mm
Weight: 3.2kg

Zoom in on Data sheet picture for more details.

SKU CD-GS1020PS
Manufacturer Product Code GS1020PS2

What's in the box
1 X Cudy 16 Port Gigabit PoE 190W 2SFP Combo Switch | GS1020PS2
