| Brand | Cudy |
|---|

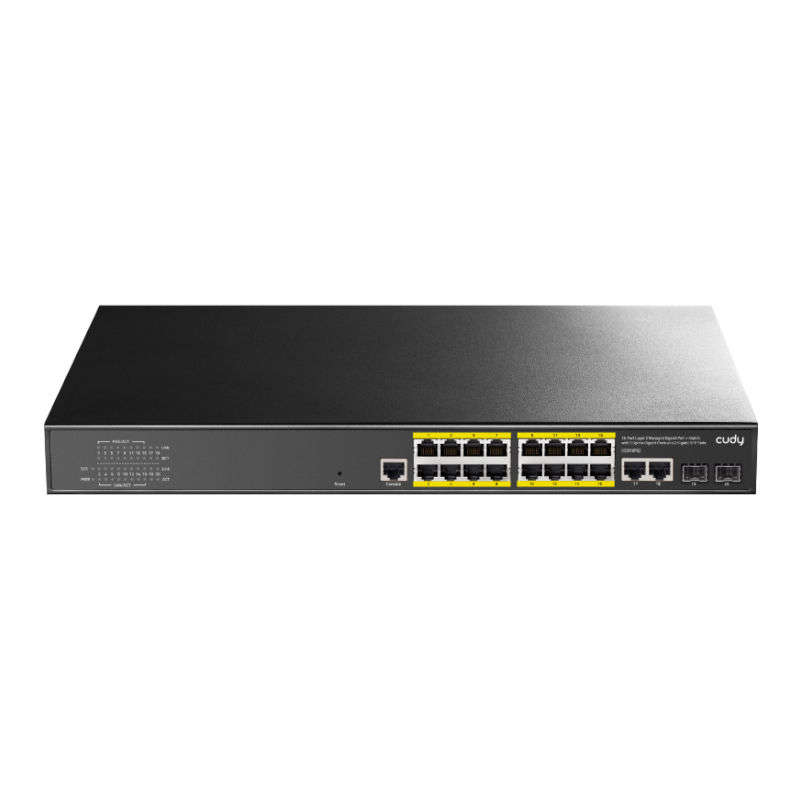

| Model | Cudy 16 Port Layer 2 Managed Gigabit PoE Switch |
|---|
| AC Input | AC100-240V, 50/60Hz |
|---|
| Ethernet Port | 16 x 10/100/1000Mbps PoE Port, 2 x 1000Mbps SFP Port, 2 x 1000Mbps Uplink Port, 1 x RJ45 Console Port |
|---|
| Bandwidth | 40Gbps |
|---|
| Packet Forwarding rate | 19.76Mpps |
|---|
| DDR SDRAM | 128MB |
|---|
| Flash Memory | 16MB |
|---|
| Packet Neck Scarfer Memory | 4M |
|---|
| MAC Address | 8K |
|---|
| Jumbo frame | 9.6Kbytes |
|---|
| VLANs | 4096 |
|---|
| IEEE 802.3 | Ethernet MAC Protocol |
|---|
| IEEE 802.3i | 10BASE-T Ethernet |
|---|
| IEEE 802.3u | 100BASE-TX Fast Ethernet |
|---|
| IEEE 802.3ab | 1000BASE-T Gigabit Ethernet |
|---|
| IEEE 802.3z | 1000BASE-X Gigabit Ethernet (optical ber) |
|---|
| IEEE 802.3ad | Standard method for performing link aggregation |
|---|
| IEEE 802.3x | Flow control |
|---|
| IEEE 802.1ab | LLDP/LLDP-MED (Link Layer Discovery Protocol) |
|---|
| IEEE 802.1p | LAN Layer QoS/CoS Protocol Trafc Prioritization (Multicast ltering function) |
|---|
| IEEE 802.1q | VLAN Bridge Operation |
|---|
| IEEE 802.1x | Client/Server Access Control and Authentication Protocol |
|---|
| IEEE 802.1d | STP |
|---|
| IEEE 802.1s | MSTP |
|---|
| IEEE 802.1w | RSTP |
|---|
| PoE protocol | IEEE802.3af (15.4 W), IEEE802.3at (30 W) |
|---|
| Network Media | 10BASE-T: Cat3, 4, 5 or above UTP(100 M), 100BASE-TX: Cat5 or above UTP(100 M), 1000BASE-TX: Cat5 or above UTP(100 M) |
|---|
| Fiber Medium | Multi-mode Fiber: 50/125, 62.5/125, 100/140um, Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
|---|
| Working Environment | Operating temperature: -20~50°C, Storage temperature: -40~85°C, Operating Humidity: 10%~90%, No condensation, Storage Humidity: 5%~90%, No condensation, Working height: Up to 10,000 feet, Storage height: Up to 10,000 feet |
|---|
| Indicator | PWR, SYS, PoE, Link/ACT |
|---|
| PWR (Power Indicator) | Lighting: Powered, Un-Light: No Power |
|---|
| SYS (System Indicator) | Flashing: System Start-up, Lighting: System Running |
|---|
| PoE | Lighting: PoE on, Un-Light: PoE off |
|---|
| Link/ACT | Lighting: Link connection, Flashing: Data transmission, Un-Light: Link disconnect |
|---|
| VLAN | 1-16 ports are isolated from each other, and the PoE Watchdog function is open (hardware takes precedence over software) |
|---|
|
