Cudy 16-Port Unmanaged PoE+ Switch - Rack Mount

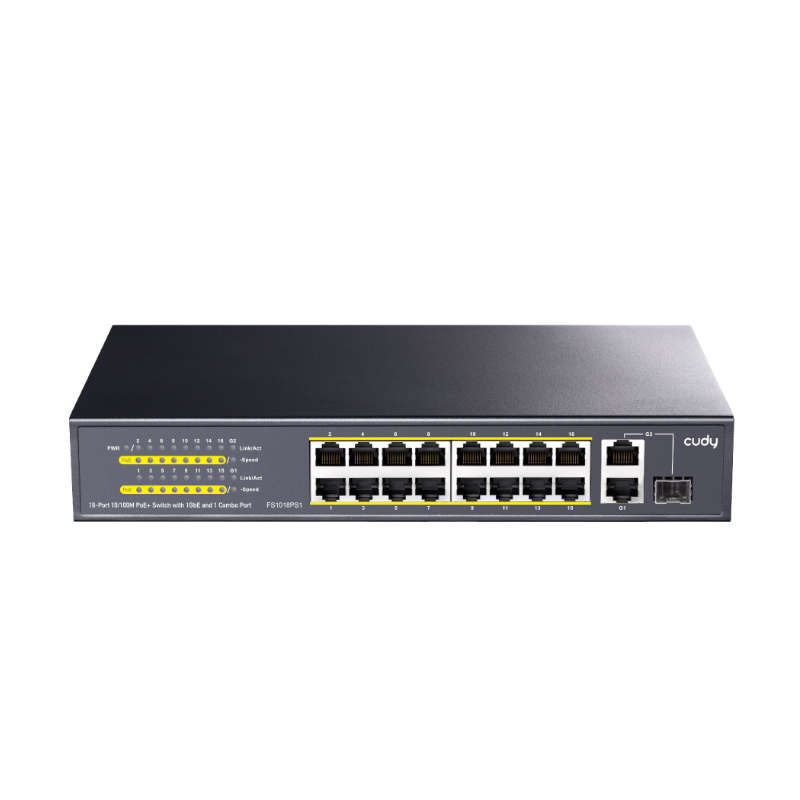

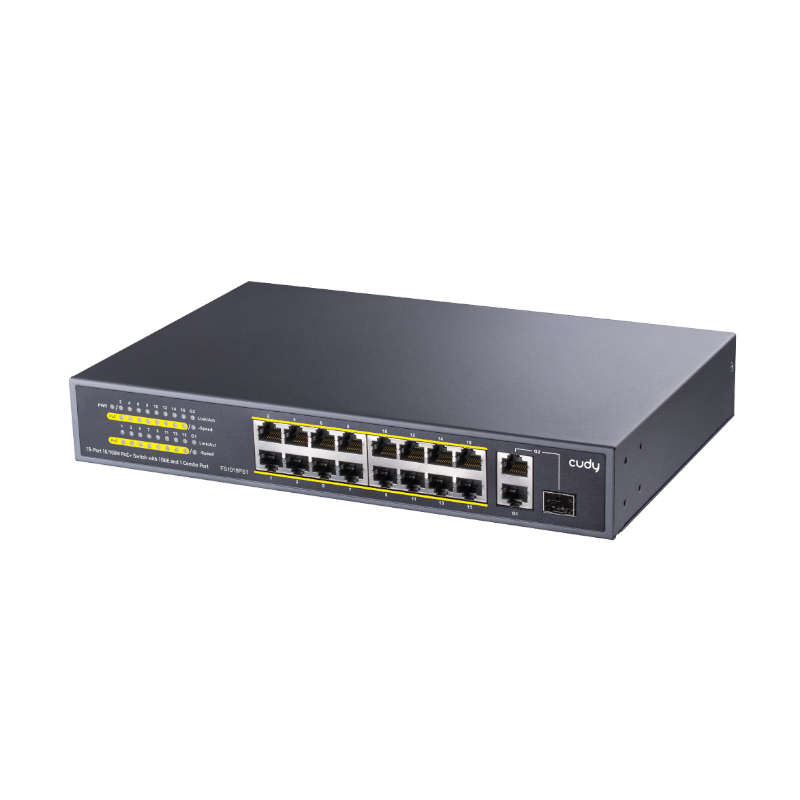

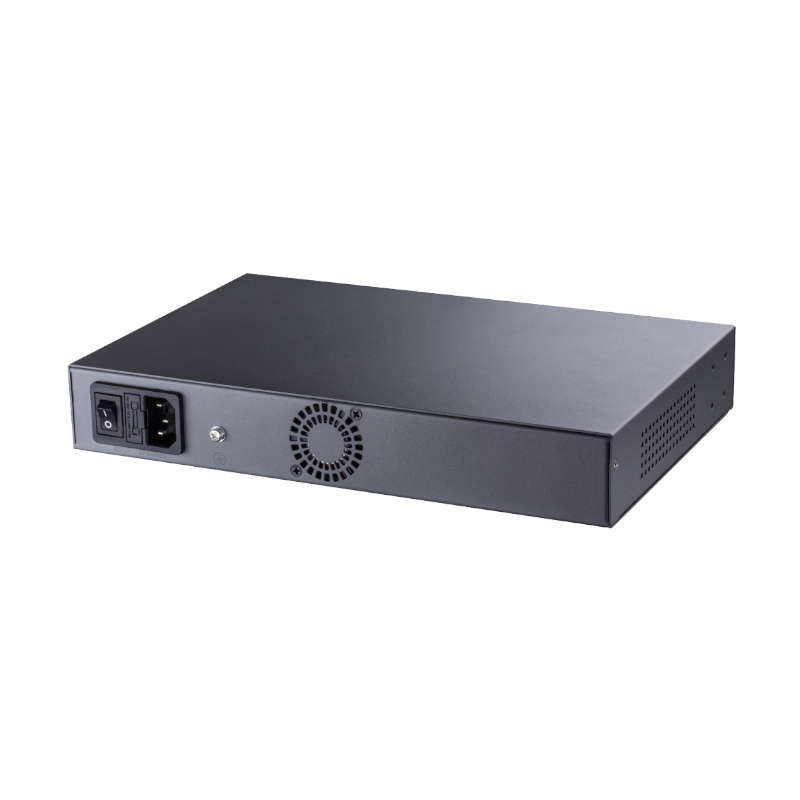

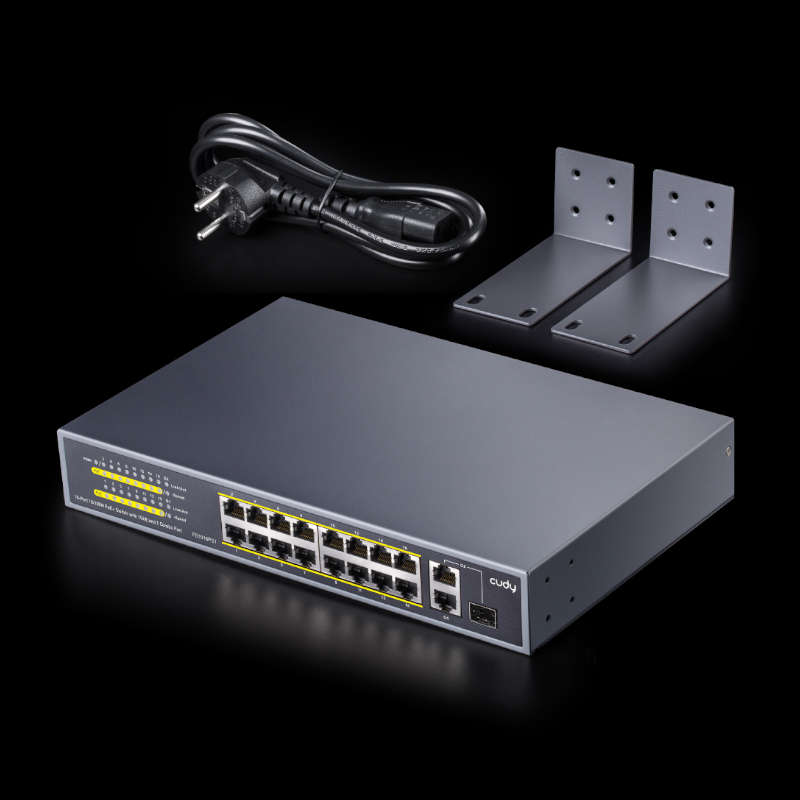

The Cudy FS1018PS1 18-Port 10/100M PoE+ Switch is a security surveillance Ethernet switch aimed at high definition surveillance and security. It supports bandwidth speeds of up to 7.2Gbps and features 16 PoE ports and 2 uplink ports. It also complies with IEEE802.3af/at Standard speeds for great performance.The 18 port switch supports 120W total PoE power and up to 30W for one PoE port. It uses Auto-sensing technology to automatically detect how much power is needed depending on the cable used. For additional protection, it features Port-Power-Prioritization technology which ensures continuous power supply of key nodes. In addition to this, it also offers lightning protection with an electrostatic standard of 6KV for contact and 8KV for air.Used for many applications the Cudy FS1018PS1 works with IP Cameras for home, office or small businesses.�Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a built-in fan and venting holes to ensure stable product operation.FEATURES:Provides 16 PoE injectors and total 210W power;Input: AC100~240 V Output: DC50V 210W;High back-plane bandwidth 7.2Gbps;Surge protection for power port and data potsIdeal for installations of 8 PoE devicesSPECIFICATIONS:PowerPower Supply: Built-in power supplyVoltage Range: AC100~240VConsumption: 190W for 16 PoEEthernetSpeed1~16 Port: 10/100/MbpsG1(combo):10/100/1000Mbps & 1.25bpsG2:10/100/1000MbpsTransmission Distance100Meter(328ft)for RJ-45The distance is determined by the optical moduleThe optical module is optionalNetwork Switch:Ethernet Standard: IEEE 802.3 802.3u 802.3ab 802.3af/atSwitching Capacity: 7.2GTransfer Rate:14880 pps for 10Mbps148800 pps for 100Mbps1488000 pps for 1000MbpsMAC Adsress: 4K MAC sddress tableLink/ACT:On(Green): The port is connectingBlinks: The port is receiving or transmitting data.Off: The port is not linked successfully with the devicePOEOn(Orange): PD is connectedOff: No PD is connected or power forwarding failsPoE Pin Assignment: V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6)Colour: GreyProduct Dimensions: 28 x 18 x 4.4 cmWHAT'S IN THE BOX:Cudy FS1018PS1 18-Port 10/100M PoE+ Switch - Grey x1Power Adapter x1
