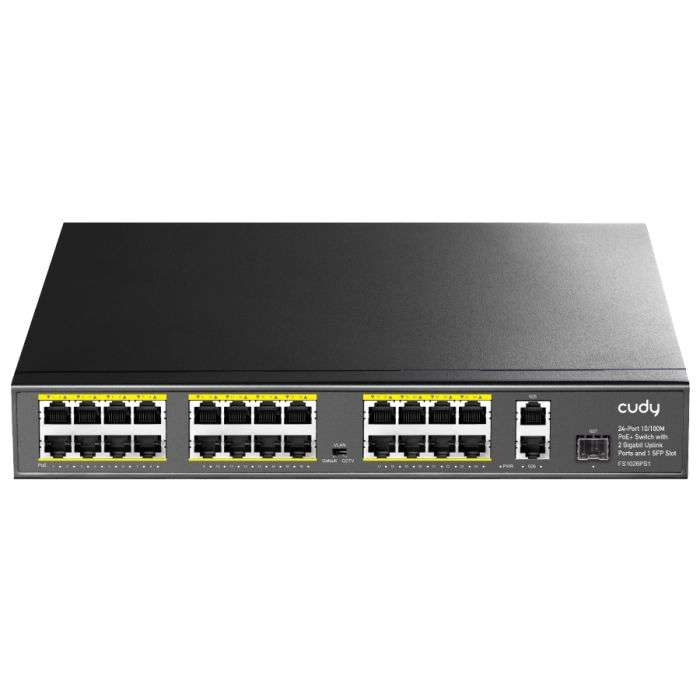

Cudy 24 Port Fast Ethernet PoE 290W 2 Gigabit 1SFP Switch | FS1026PS1

Cudy's CD-FS1026PS is a 26-Port Fast Ethernet switch with 24x 802.3af/at PoE ports, 2x Gigabit, and 1x SFP Uplink ports. The switch offers a 290W PoE budget, up to 30W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-24 while Extender mode increases the transmission distance on ports 1-24 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.

SKU CD-FS1026PS
Manufacturer Cudy
Manufacturer Product Code FS1026PS1

Specifications:

Ethernet Ports: 24x 10/100 ; 2x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 10W

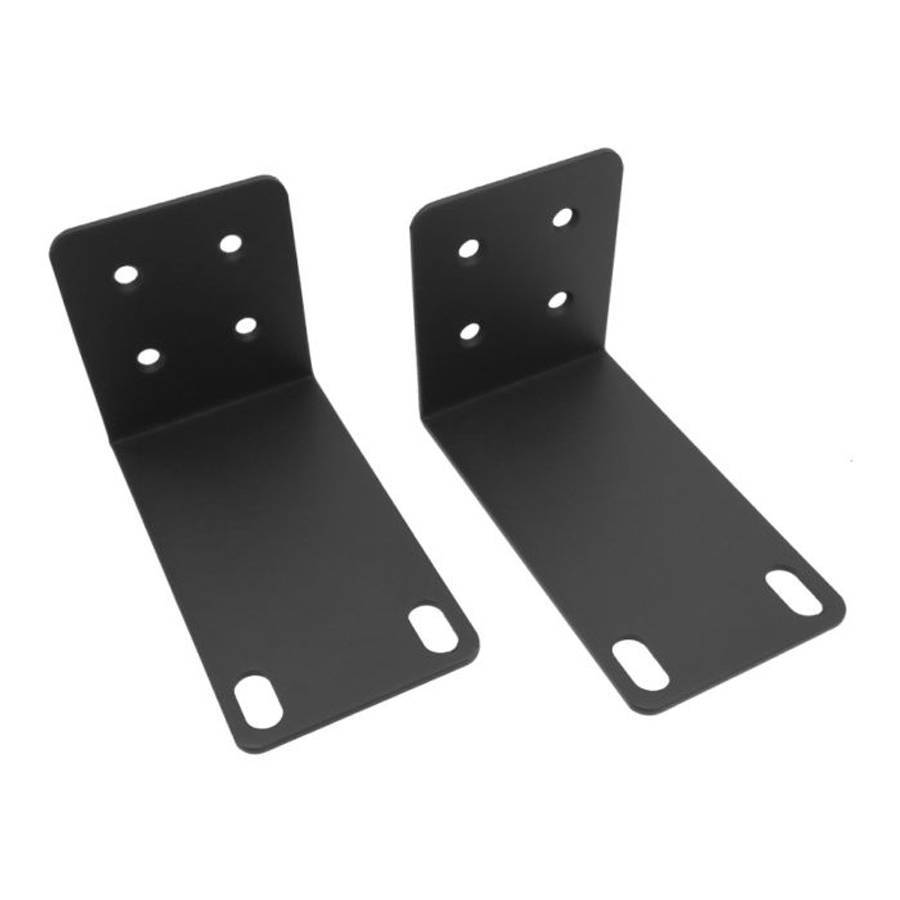

Mounting: Rack-Mount
Operating System: None
Operating Temperature: -20°C to 50°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~24

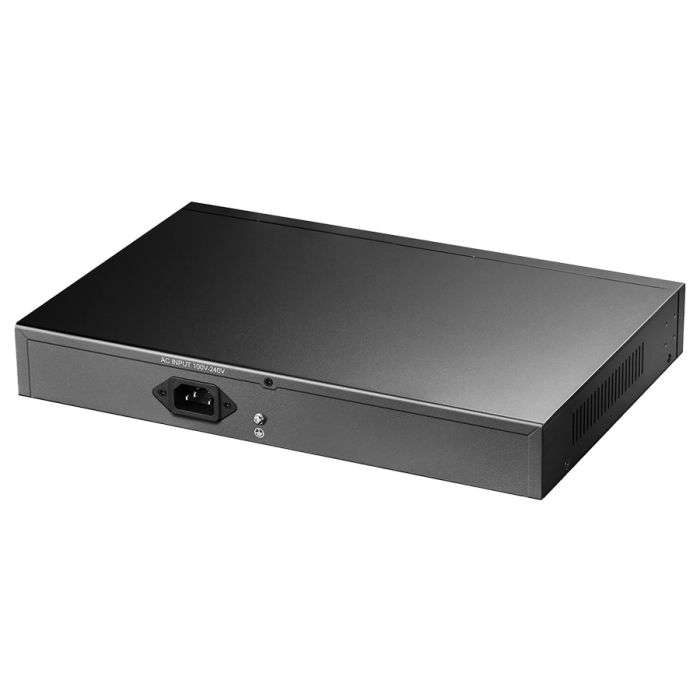

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 100-240V

Dimensions: 320 x 210 x 50mm
Weight: 1.9kg
