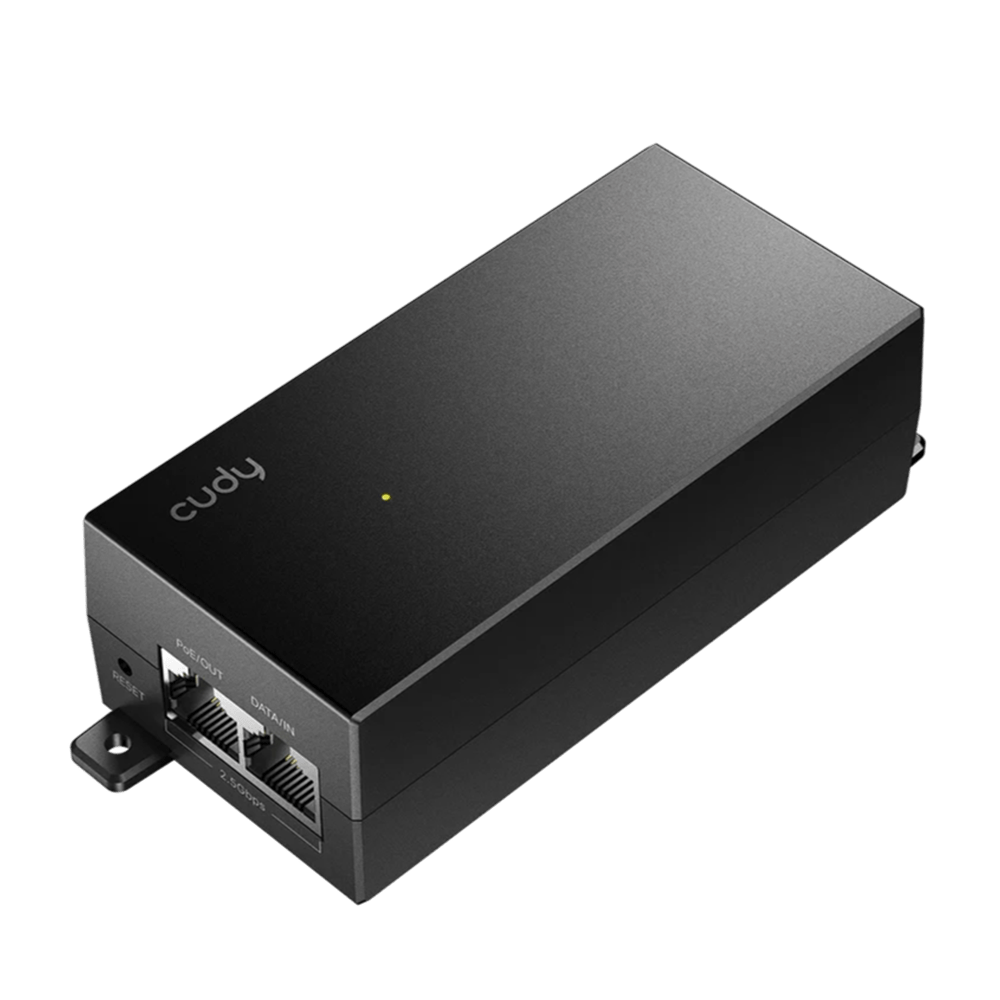

Cudy 30W 2.5Gbps Gigabit PoE+ Injector

2.5Gbps data throughput | Up to 30W PoE output | IEEE 802.3at/af compliant | Wall-mountable design | Built-in surge protection

The Cudy POE200H is a 2.5Gbps PoE injector designed for installers and network administrators who need to power PoE devices such as IP cameras, access points, and VoIP phones without replacing their existing switch. Plug your network cable into the DATA/IN port and connect the PoE/OUT port to your device: the injector combines data and up to 30W of power over a single Cat. 5e or higher cable, reaching up to 100 metres at both Gigabit and 2.5 Gbps speeds. IEEE 802.3at/af compliance ensures broad compatibility with standard PoE devices, while built-in surge protection and ESD protection safeguard connected equipment. The compact plastic housing supports both desktop and wall-mount installation, keeping it tidy in any rack room or ceiling void.

Features

• 2.5GbE uplink and downlink ports support speeds of 10/100/1000/2500 Mbps
• Delivers up to 30W of PoE power output at 54V compatible with IEEE 802.3at and 802.3af devices
• 100-metre transmission distance over Cat. 5e or higher cable at both Gigabit and 2.5 Gbps
• Mode A pin assignment on the downlink port
• Power and PoE status LEDs for at-a-glance monitoring
• Surge protection (Power: DM 4kV, CM 4kV; RJ45: CM 4kV) and Level 3 ESD protection
• Supports desktop and wall-mount installation
• Wide AC input range: 100240V 50/60Hz

Specifications

• Accessory Type: PoE Injector
• Standard / Category: IEEE 802.3at/af
• Colour: Black
• Warranty: 24 months
• Product Dimensions: 12.3 x 5.1 x 3.5 cm

What's in the Box

• Cudy 30W 2.5Gbps PoE Injector (POE200H) Black x1
• Power Cord x1
• Installation Guide x1
