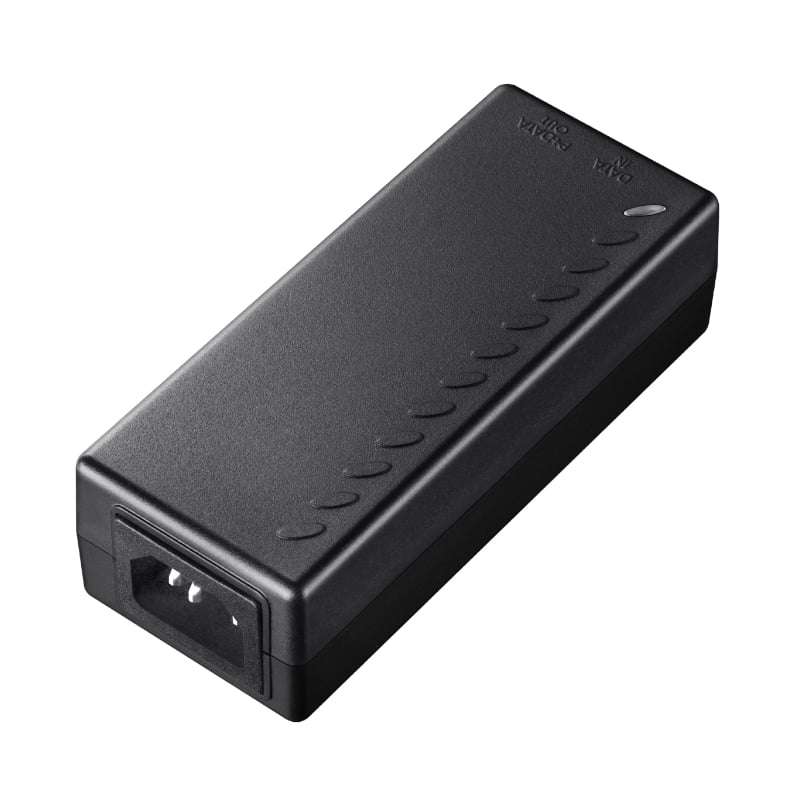

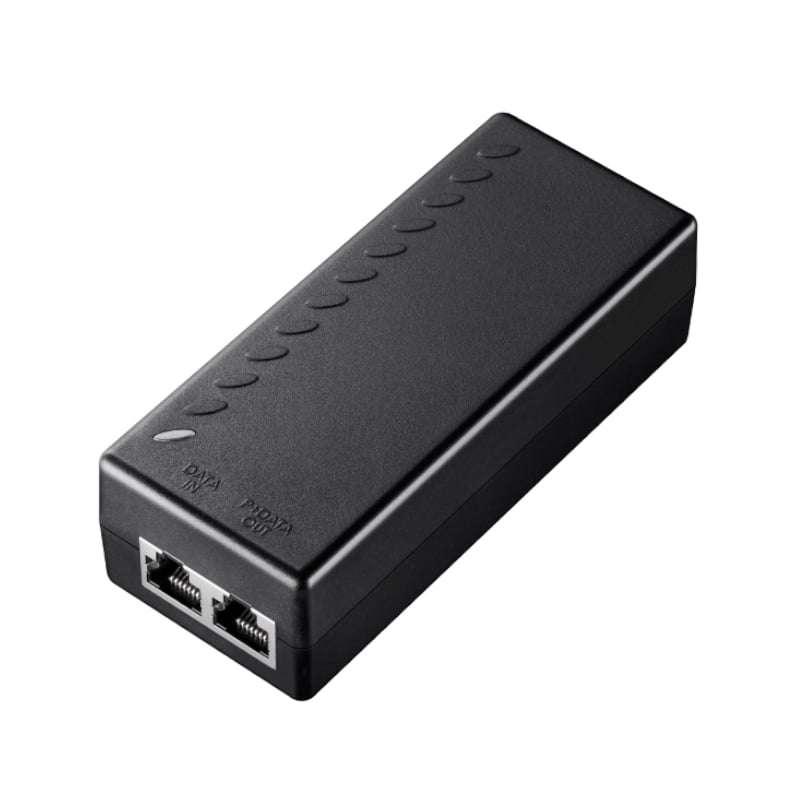

Cudy 30W Gigabit PoE+ Injector

Product Highlights

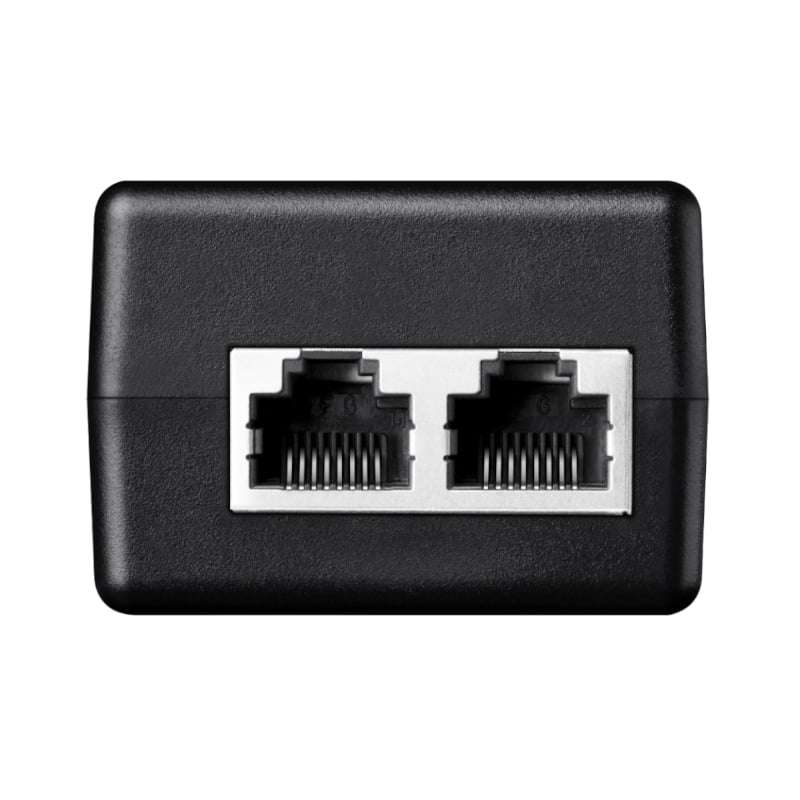

The Cudy POE200 30W Gigabit PoE+/PoE Injector allows you to easily supply power and data to a single PoE device. It features a Gigabit Ethernet input port and a Gigabit PoE output port. It's a great option for small surveillance systems or a VOIP phone or a WiFi AP.

The 2 port switch supports 30W total PoE power on the PoE output port. It complies with IEEE802.3af/at Standard speeds for great performance. The Injector is powered by an AC power adapter and can be easily mounted to a wall.

Used for many applications the Cudy POE200 works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses. Its simple plug and play interface makes it incredibly easy to use.

FEATURES:

• Up to 30W Power Supply
• Supports 10/100/1000 Base-T applications
• LED indicators power input and PoE output
• Internal AC/DC converter no need for an external power brick
• Easy plug-and-play installation
• Muti-protection

SPECIFICATIONS:

• No. of channels: 1
• Pass-Through Data Rates: 10/100/1000Mbps
• Power over Ethernet Output:
  • Pin Assignment and Polarity: 1/2 (-), 3/6 (+)
  • Output Power Voltage: 54Vdc
  • User Port Power: 30W max
• Input Power Requirements:
  • AC Input Voltage: 100 to 240 VAC
  • AC Input Current: 0.5A 100-240 VAC
  • AC Frequency: 50 to 60 Hz
• Indicators:
  • System Indicator: AC Power
  • User Indicator: Channel Power
• Connectors: Shielded RJ-45, EIA 568A and 568B
• Protection
  • Over-current protection
  • Over-load protection
  • Over-voltage protection
  • Anti-interference protection
• Product Dimensions: 12.1 x 5 x 3.6 cm

WHAT'S IN THE BOX :

• • Cudy POE200 30W Gigabit PoE+/PoE Injector Black x1
  • Power Adapter x1
