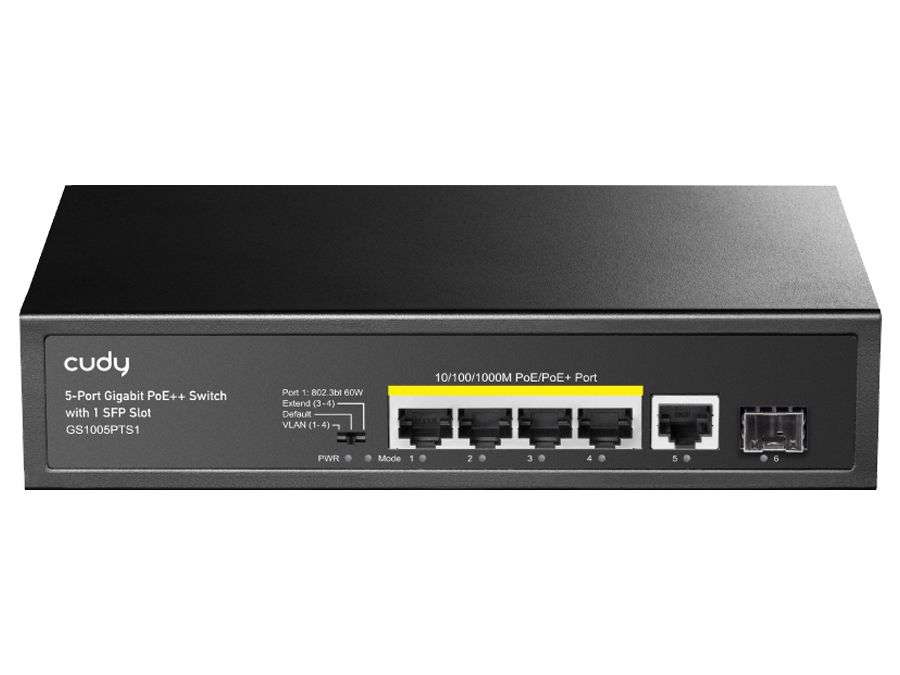

Cudy's CD-GS1005PT is a 5-Port Gigabit switch with 4x 802.3af/at PoE ports, 1x SFP and 1x Gigabit Uplink ports. The switch offers a 115W PoE budget with up to 60W (802.3bt) on port 1 and 30W on ports 2~4. Both VLAN and Extender modes are supported with the integrated toggle switch. VLAN mode enables port isolation on ports 1-4 while Extender mode increases the transmission distance on ports 1-4 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.
Specifications:
Ethernet Ports: 5x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: -20°C to 50°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~4

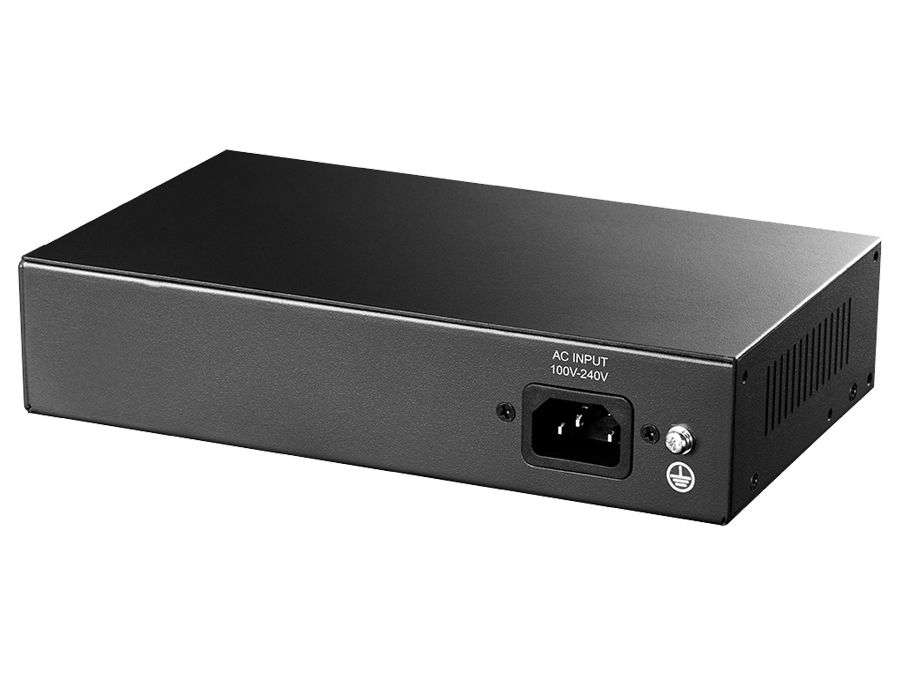

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 200 x 112 x 40mm
Weight: 600g
