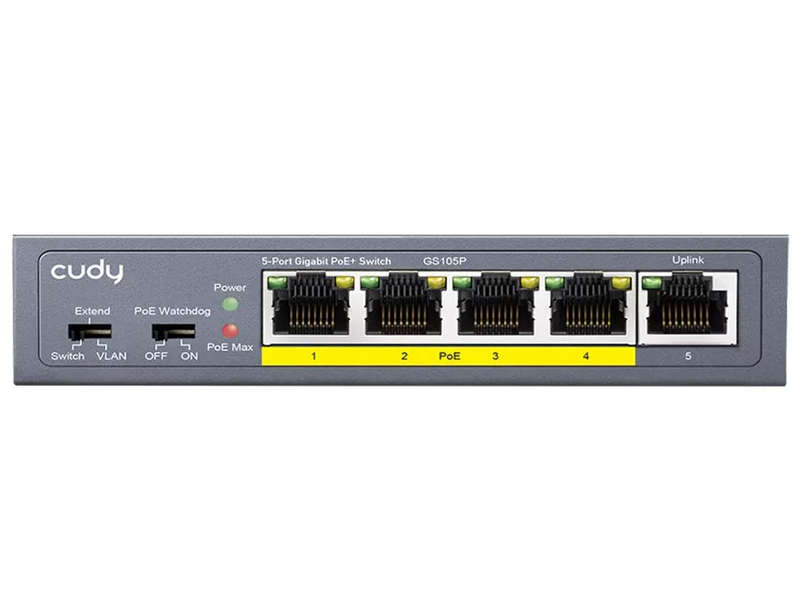

Cudy's CD-GS105P is a 5 Port Gigabit switch with 4x 802.3af/at PoE ports, 1x Gigabit Uplink port and a 31W PoE Budget. Both VLAN and Extender modes are supported with the integrated toggle switch. VLAN mode enables port isolation on ports 1-4, while Extender mode increases the transmission distance on ports 1-4 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when enabled. If an error is detected on the device, the switch immediately restarts the port.
Specifications:
Ethernet Ports: 5x 10/100/1000
Hardware Button: VLAN; Extender; Watchdog
Max. Power Consumption: 5W

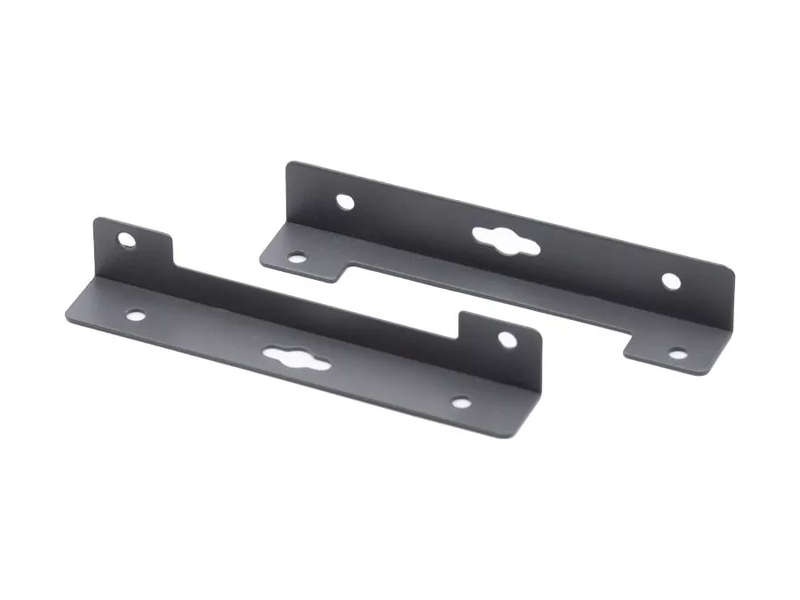

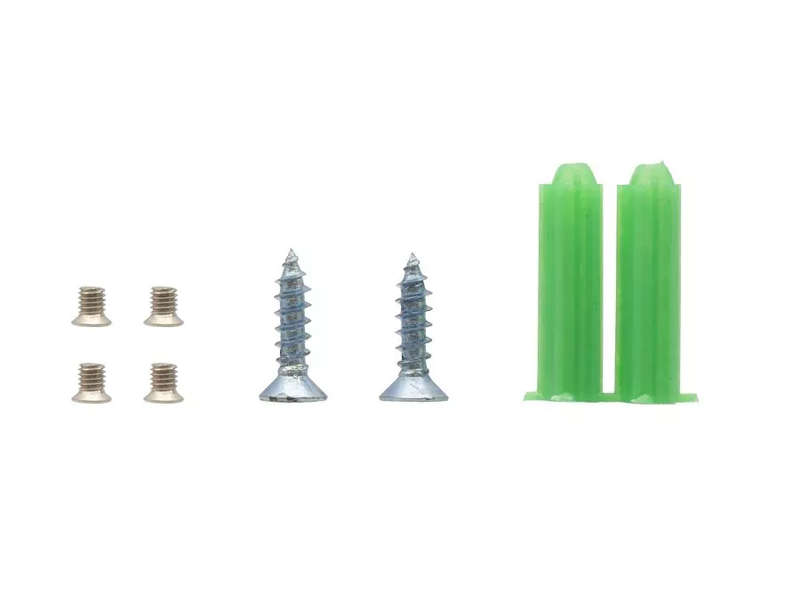

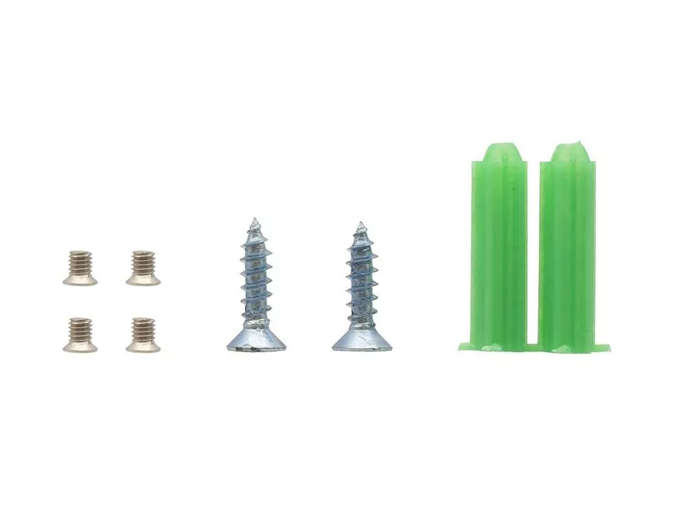

Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~4
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100-240V
Dimensions: 119 x 85 x 28mm
Weight: 254g
