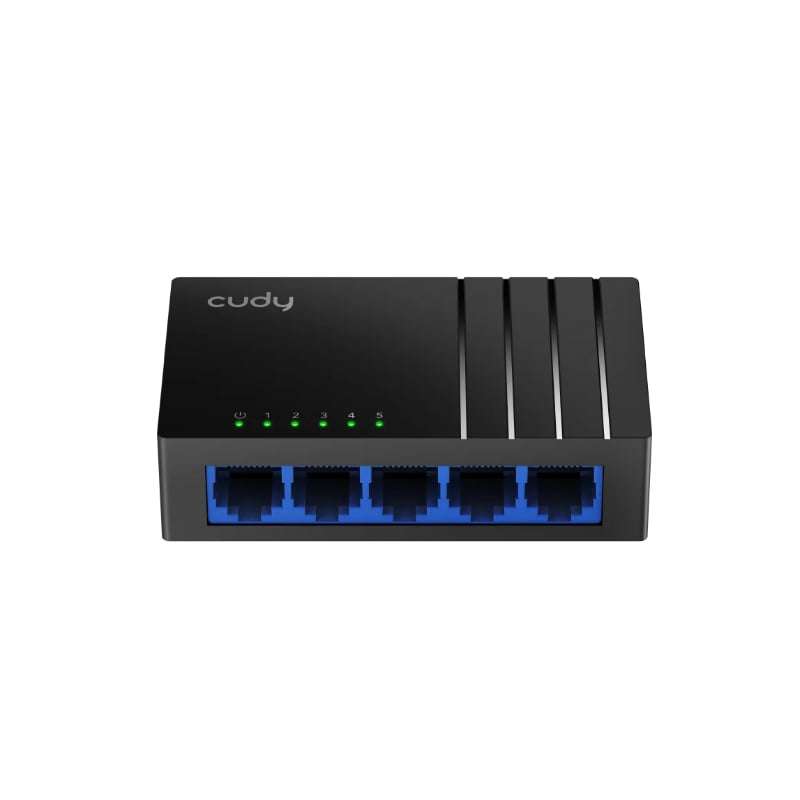

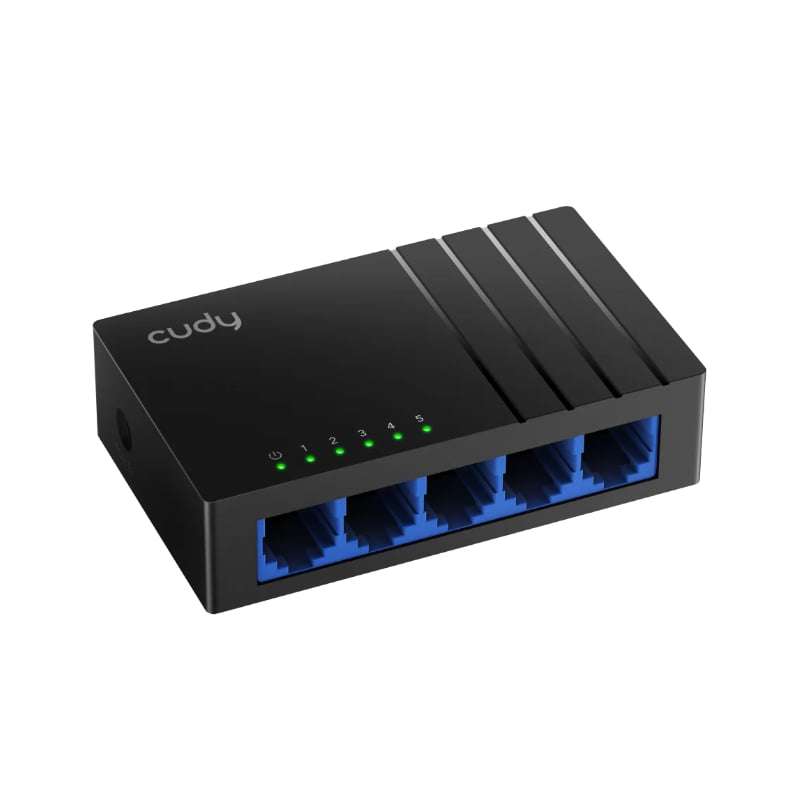

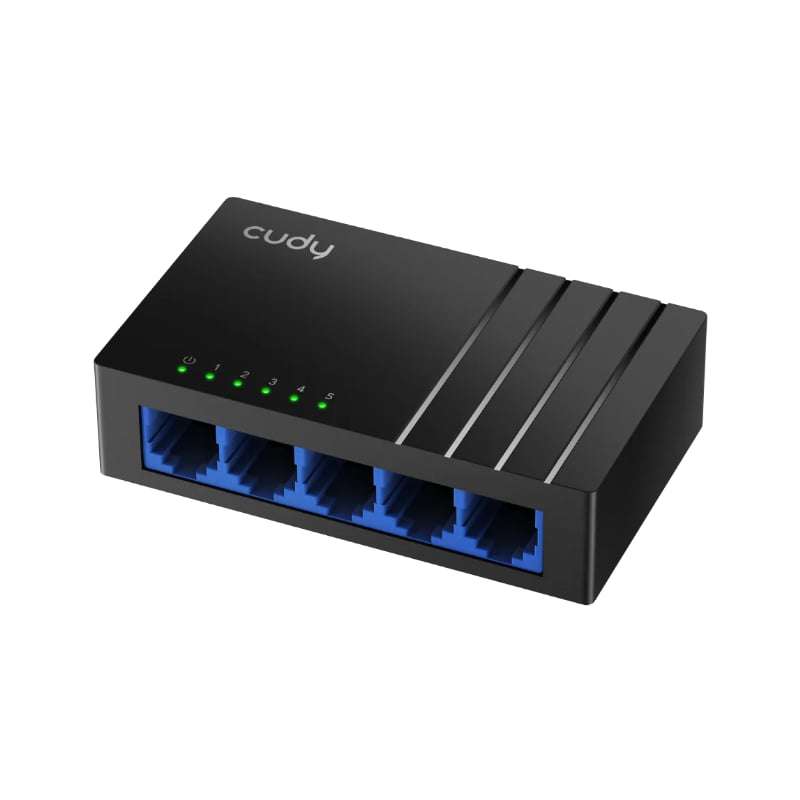

Cudy 5-Port Gigabit Desktop Switch

FEATURES:

5× Gigabit Ethernet Ports

Max 140m Gigabit Transmission

3 Mbit Packet Buffer

Max 2W, Idle 1.4W

 Desktop, Wall-Mount

SPECIFICATIONS:

 802.3 Network Protocol:

802.3x Flow Control

802.3i 10 Mbps over Twisted Pair

802.3u 100 Mbps over Twisted Pair

802.3ab 1 Gbps over Twisted Pair

Interfaces

Gigabit RJ45 Ports: 5

LED: Power/Speed/Link/ACT of Each Ethernet Port

Power Input: DC Jack

Performance

Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps/ Cat. 5 or higher cable: 100 meters at 100 Mbps/ Cat. 5e or higher cable: 140 meters at Gigabit

MAC Address Table: 2048

Max Switching Capacity: 10 Gbps

Max Forwarding Rate: 7.44 Mpps

Jumbo Frame: 15 KB

Packet Buffer: 3 Mbit

Power:

 Basic Power Saving: True

 Power Methods: DC

DC: 5V 0.55A

Max Power Consumption (W): 2W

Idle Power Consumption (W): 1.4W

Reliability:

Lightning/Surge Protection: 2kV

ESD Air Protection: 8kV

ESD Contact Protection: 4kV

Environment:

Operating Temperature: 0 ~ 40 (32 ~104 )

Storage Temperature: -40 ~ 70 (-40 ~ 158 )

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing

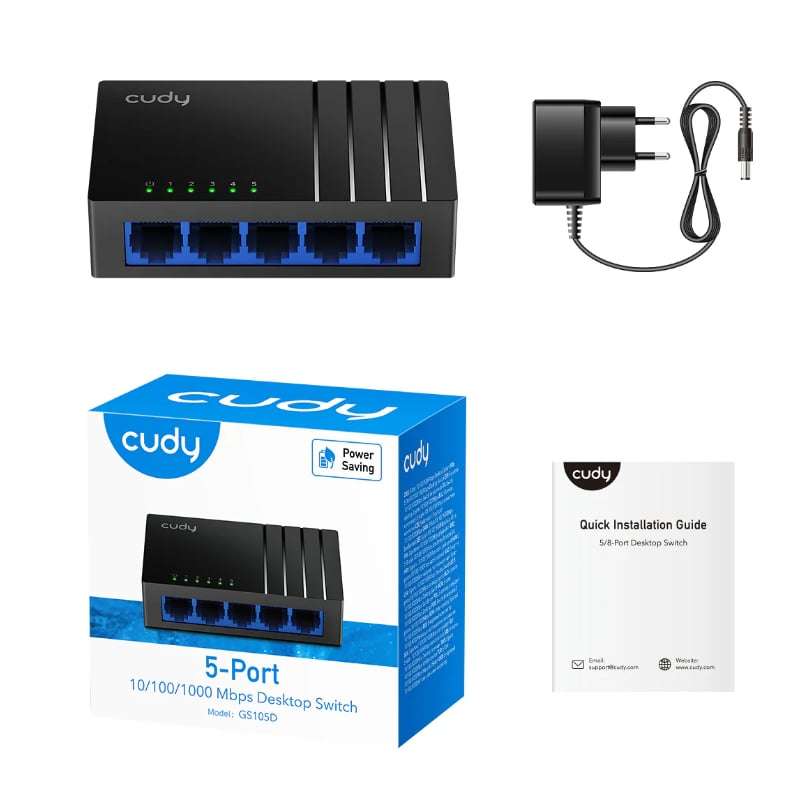

WHATS IN THE BOX:

Cudy GS105D 5-Port Gigabit Desktop Switch Black x1

Power Adapter x1

Quick Install Guide x1
