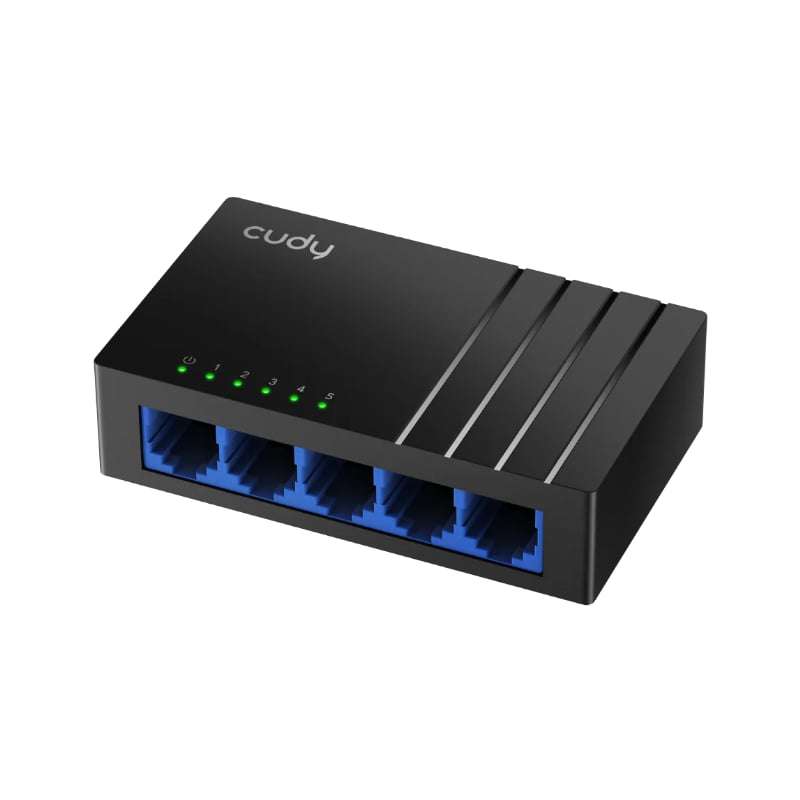

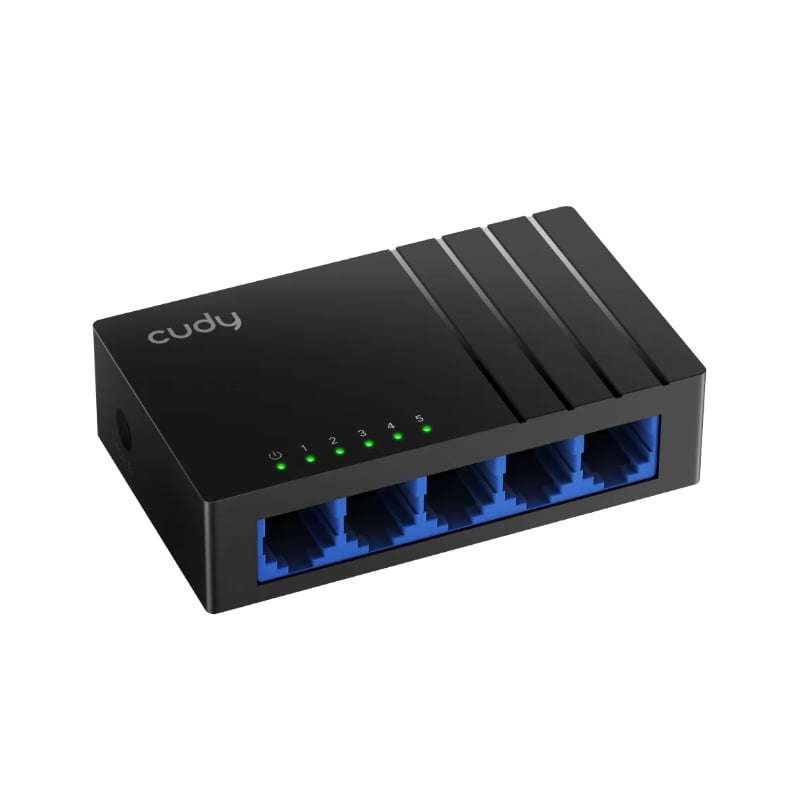

Cudy 5-Port Gigabit Desktop Switch

The Cudy GS105D 5-Port Gigabit Desktop Switch provides five 10/100/1000 Mbps non-blocking Ethernet ports allow for instant data transfer without mutual interference. 170 metres of Gigabit transmission adds 70% more distance than a standard switch, simplifying wiring for larger premises. Reduce power consumption when Ethernet ports are idle, resulting in lower networking facility electricity costs. The casing has two mounting holes on the bottom to accommodate wall-mounting scenarios. Most home network distribution boxes can accommodate a compact size. The wave line and blue ports create a modern appearance.
FEATURES:

5× Gigabit Ethernet Ports
Max 140m Gigabit Transmission
3 Mbit Packet Buffer
Max 2W, Idle 1.4W
 Desktop, Wall-Mount

SPECIFICATIONS:

 802.3 Network Protocol:
802.3x Flow Control
802.3i 10 Mbps over Twisted Pair
802.3u 100 Mbps over Twisted Pair
802.3ab 1 Gbps over Twisted Pair
Interfaces
Gigabit RJ45 Ports: 5
LED: Power/Speed/Link/ACT of Each Ethernet Port
Power Input: DC Jack
Performance
Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps/ Cat. 5 or higher cable: 100 meters at 100 Mbps/ Cat. 5e or higher cable: 140 meters at Gigabit
MAC Address Table: 2048
Max Switching Capacity: 10 Gbps
Max Forwarding Rate: 7.44 Mpps
Jumbo Frame: 15 KB
Packet Buffer: 3 Mbit
Power:
 Basic Power Saving: True
 Power Methods: DC
DC: 5V 0.55A
Max Power Consumption (W): 2W
Idle Power Consumption (W): 1.4W
Reliability:
Lightning/Surge Protection: 2kV
ESD Air Protection: 8kV
ESD Contact Protection: 4kV
Environment:
Operating Temperature: 0 ~ 40 (32 ~104 )
Storage Temperature: -40 ~ 70 (-40 ~ 158 )
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing

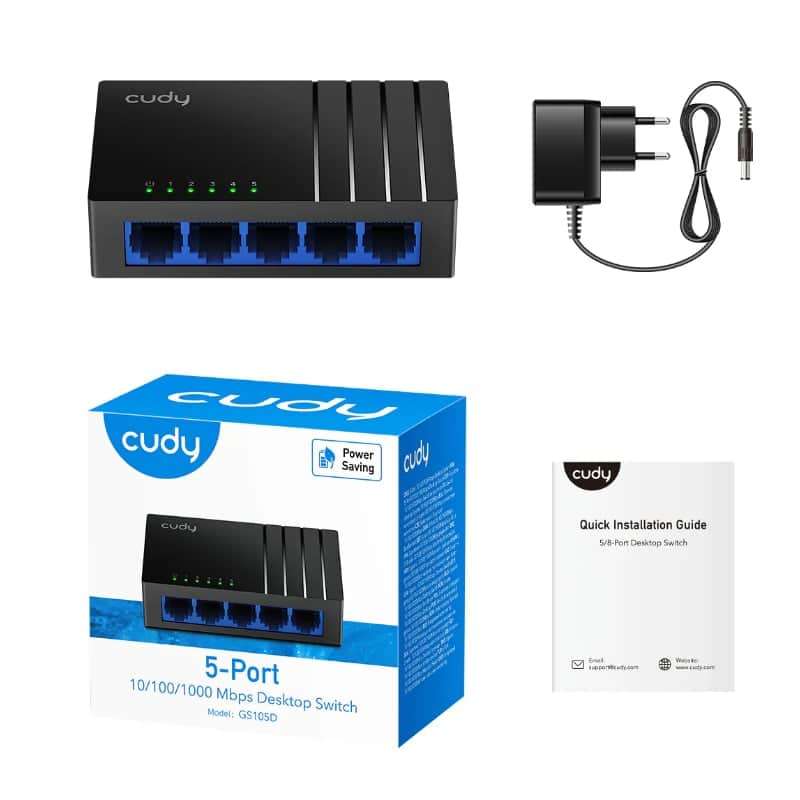

WHAT'S IN THE BOX:

Cudy GS105D 5-Port Gigabit Desktop Switch Black x1
Power Adapter x1
Quick Install Guide x1
