Cudy 5-Port Gigabit Metal Switch

FEATURES:

Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards

5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware

Non-blocking switching architecture enables full wire-speed packets forwarding and filtering

Store-and-Forward switching method

Supports 16K MAC address auto-learning and auto-ageing

SPECIFICATIONS:

Standard configuration: 5 10/100/1000M RJ-45 adaptive ports

Switching Capacity: 10Gbps

Throughput: 7.44Mpps

Packet Neck Scarfer: 1M

MAC Address: 1K

Jumbo Frame: 2K

Transfer Mode: Store and forward

MTBF: 100000 hour

Network protocol:

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT)

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Network Medium

10Base-T: Cat3, 4, 5 or above UTP(100m)

100Base-TX: Cat5  or above UTP(100m)

1000Base-TX: Cat5 or above UTP(100m)

LED Indicators:

PWR (Power indicator)

Link (Network Link)

LOOP (Loop alarm)

VLAN: Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5

Default: Default mode, Support loop alarm

Extend: Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode,  port 5 as an uplink port

Power Voltage:

Power Input Voltage: AC 100-240 V

Switch Input Voltage: DC 5V

Product Dimensions: 8.7 x 5.4 x 2.3 cm

Product Weight: 200g

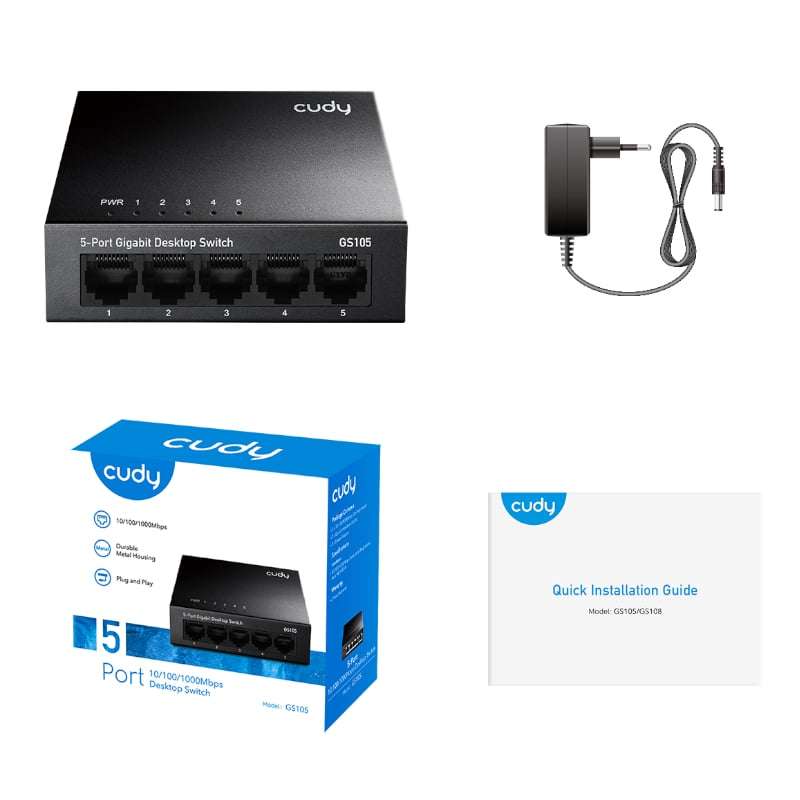

WHATS IN THE BOX:

Cudy GS105 5-Port Gigabit Desktop Switch Black x1

Power Adapter x1

Quick Install Guide x1
