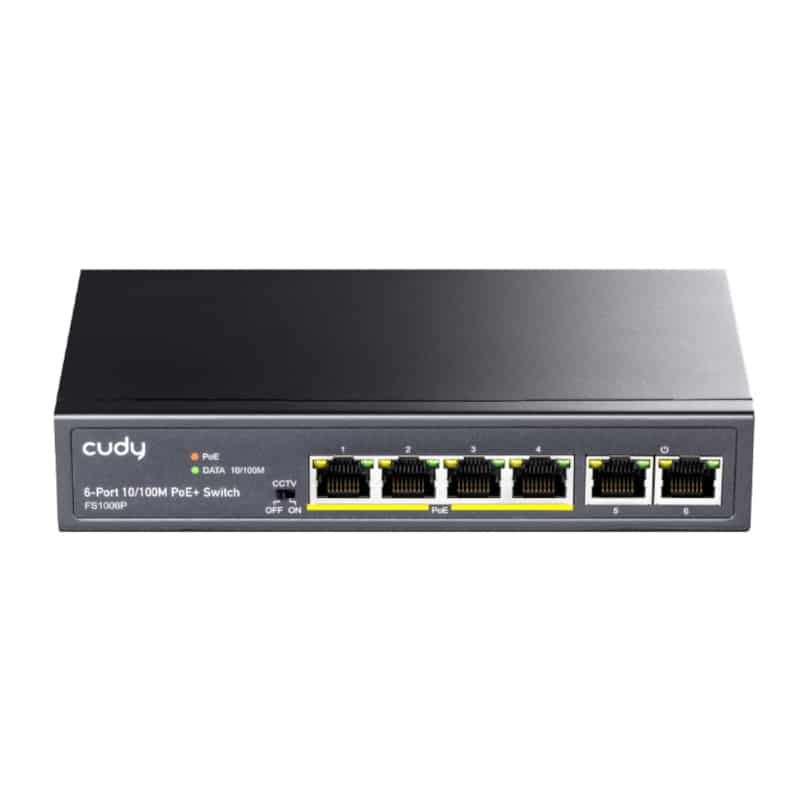

The Cudy 6-Port 10/100M PoE+ Switch allows you to easily manage your home or office network. It features 4 Ethernet PoE ports with 2 x uplink ports as well. Its PoE RJ-45 connectors support any 10/100Mbps Ethernet devices, and it's compliant with IEEE 802.3af/802.3at network standards. Used for many applications the Cudy 6 Port PoE+ Switch works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a CCTV/VLAN mode for additional security, this allows the ports to be isolated from one another and can extend the range of your network for longer distances.

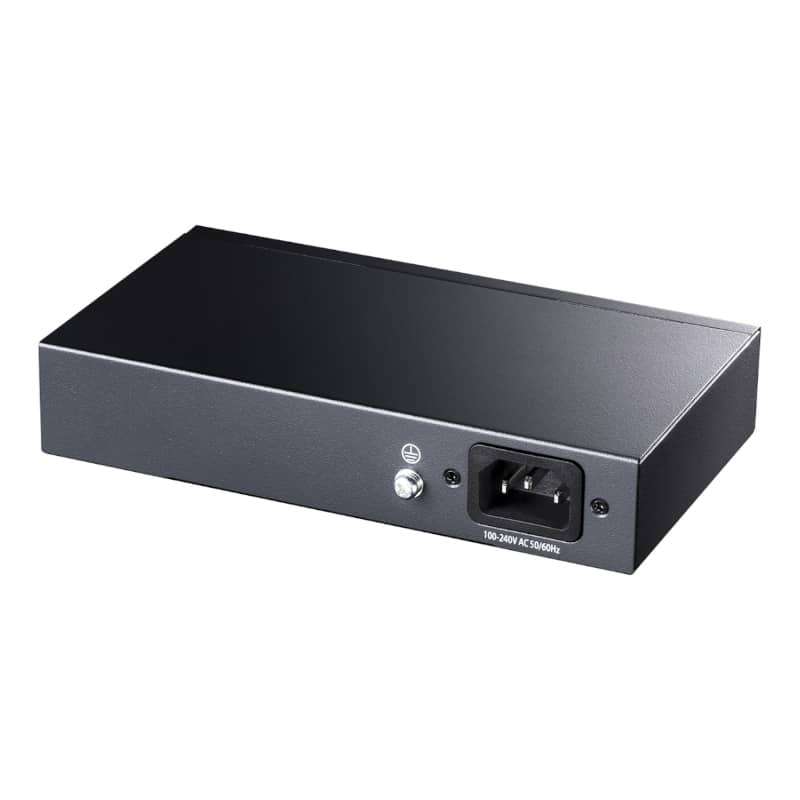

Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation. It also supports rack mounting as well as wall mounting, and even desktop mount support thanks to its mounting slots underneath the device.
FEATURES:
4 x PoE 10/100M ports
2 x Uplink ports
Complies with IEEE802.3af/at Standard
Supports PoE power up to 32W for each PoE port
Auto-detect non-PoE devices and PoE devices
Power prioritization guarantee power supply of key nodes
CCTV/VLAN mode switch, remote power and data up to 250m
Supports IEEE802.3 x full duplex / half duplex ow control
Supports storage and forwarding for Data Exchange
SPECIFICATIONS:
PoE standard: IEEE802.3af/at
Interface: 6*10/100Mbps RJ45 port
Key function: CCTV
PoE port: 1-4
PoE Total: 60W
Power supply: 65W
RJ45 PoE power supply: Mode A Anode1/2 Cathode3/6
PoE output-port: Max 32W
Indicator: PWR, LNK/ACT, PoE
Network media: 10BASE-T: UTP category 3, 4, 5 cable(100m); 100BASE-TX: UTP category 5, 5e cable(100m)
MAC Address Table: 2K, Automatic study, automatic updates
Jumbo frame: 1528K Bytes
Packet buffer: 768K bit
Transfer Mode: Store-and-forward
Packet forwarding rate: 0.89Mpps
Bandwidth: 1.2Gbps
Fan: Fanless
Machine weight: <1kg
Input Voltage: AC 100-240V 50/60Hz
Output Voltage: DC:55V/1.5A
Operating Temperature: 0°C ~ 40 °C
Storage Temperature: -40 °C ~ 70 °C
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Surge Protection: ±4KV
Certification: CE, FCC Class A
MTBF: >50000 hour
Electrostatic standard: Contact 4KV, air 6KV
Product Dimensions: 16.8 x 9.3 x 3.2 cm
WHAT'S IN THE BOX:
Cudy 6-Port 10/100M PoE+ Switch x1
Power Cable x1
User Manual x1
