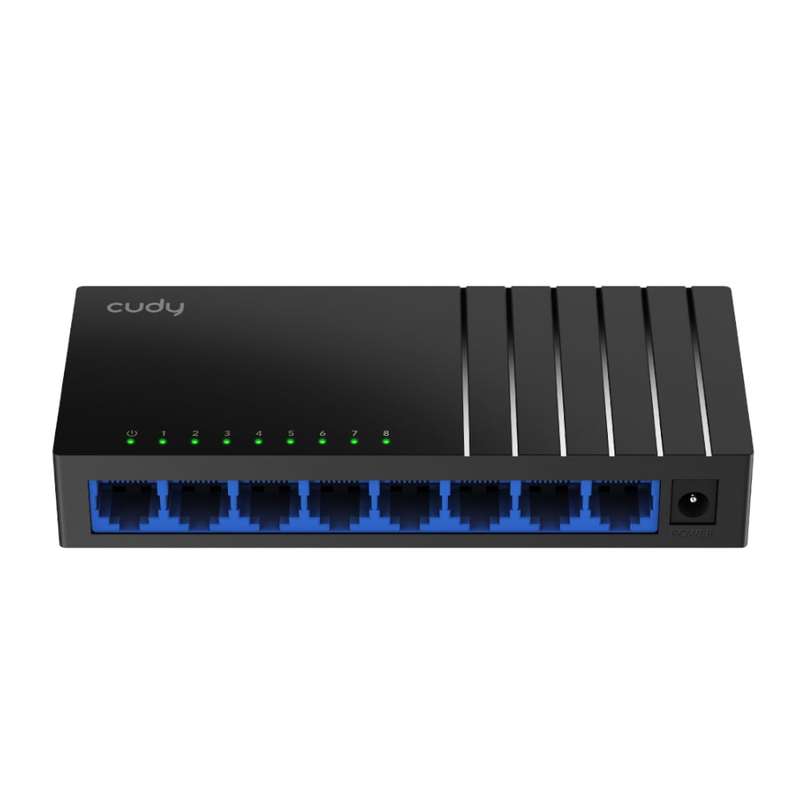

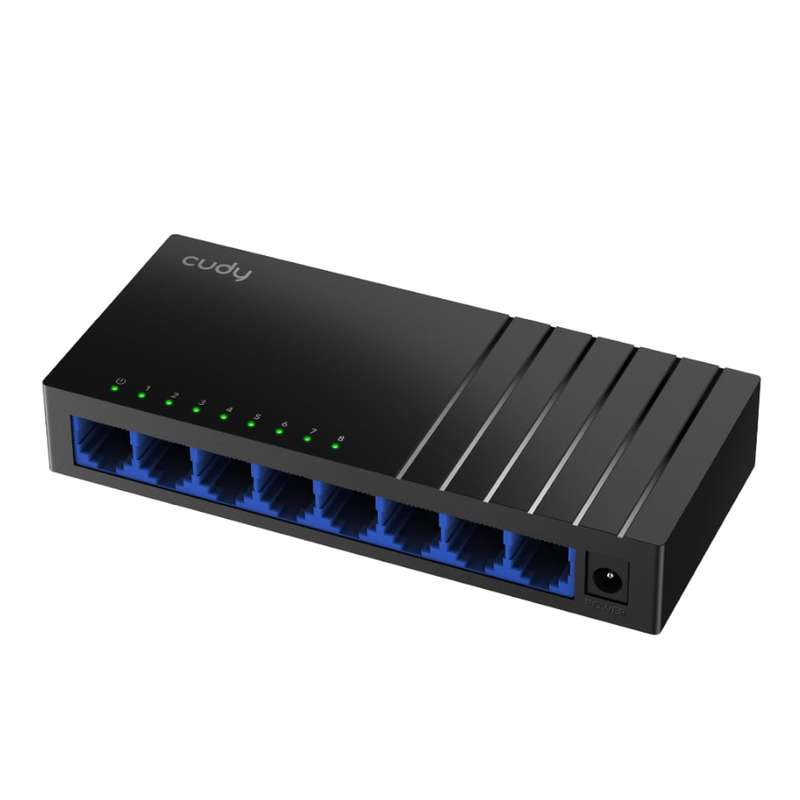

Cudy 8-Port Gigabit Desktop Switch

The Cudy 8-Port Gigabit Desktop Switch is a reliable and power-efficient solution for connecting office computers to a wired network. With eight fast Ethernet ports and a 140m maximum transmission distance, it ensures seamless and extended connectivity. The switch features a 448 Kbit packet buffer to prevent packet loss, enhancing network reliability. Its compact design allows for easy placement in telecommunications or cable boxes, and it includes two mounting holes for convenient wall-mounting. Consuming only 1W at maximum power and 0.25W in standby, this switch is super power-efficient, making it ideal for both desktop and wall-mounted installations.

FEATURES:

• 8xFast Ethernet Ports
• Max 140m Transmission
• 448 Kbit Packet Buffer
• Max 1W, Idle 0.25W power consumption
• Desktop, Wall-Mount

SPECIFICATIONS:

• 802.3 Network Protocol:
• 802.3i 10Mbps over Twisted Pair
• 802.3u 100Mbps over Twisted Pair
• Interfaces
• 10/100Mbps RJ45 Ports: 8
• LED: Power/Speed/Link/ACT of Each Ethernet Port
• Power Input: DC Jack
• Performance
• Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10Mbps/ Cat. 5 or higher cable: 100 meters at 100Mbps
• MAC Address Table: 512
• Max Switching Capacity: 1.6Gbps
• Max Forwarding Rate: 1.1904Mpps
• Packet Buffer: 448 Kbit
• Power:
• Basic Power Saving: True
• Power Methods: DC
• DC: 5V 0.55A
• Max Power Consumption (W): 1W
• Idle Power Consumption (W): 0.25W
• Environment:
• Operating Temperature: 0 degC ~ 40 degC (32 degF ~104 degF)
• Storage Temperature: -40 degC ~ 70 degC (-40 degF ~ 158 degF)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

WHAT'S IN THE BOX:

• Cudy GS108D 8-Port Gigabit Desktop Switch - White x1
• Power Adapter x1
• Quick Install Guide x1
