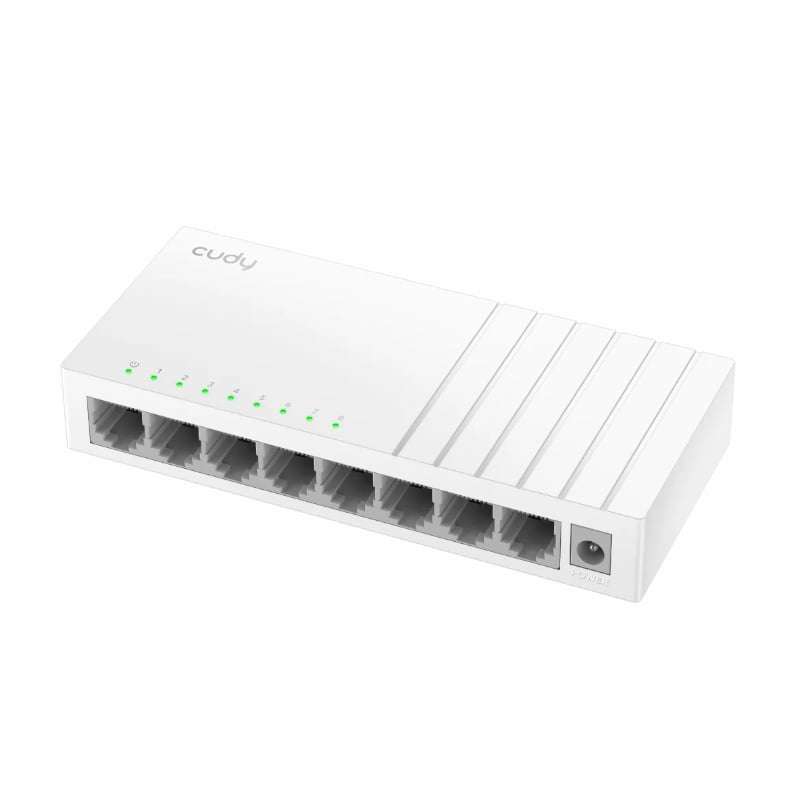

Cudy 8-Port Gigabit Desktop Switch

The Cudy 8-Port Gigabit Desktop Switch is a reliable and power-efficient solution for connecting office computers to a wired network. With eight fast Ethernet ports and a 140m maximum transmission distance, it ensures seamless and extended connectivity. The switch features a 448 Kbit packet buffer to prevent packet loss, enhancing network reliability. Its compact design allows for easy placement in telecommunications or cable boxes, and it includes two mounting holes for convenient wall-mounting. Consuming only 1W at maximum power and 0.25W in standby, this switch is super power-efficient, making it ideal for both desktop and wall-mounted installations.
FEATURES:

8×Fast Ethernet Ports
Max 140m Transmission
448 Kbit Packet Buffer
Max 1W, Idle 0.25W power consumption
Desktop, Wall-Mount

SPECIFICATIONS:

 802.3 Network Protocol:
802.3i 10 Mbps over Twisted Pair
802.3u 100 Mbps over Twisted Pair
Interfaces
 10/100 Mbps RJ45 Ports: 8
LED: Power/Speed/Link/ACT of Each Ethernet Port
Power Input: DC Jack
Performance
Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps/ Cat. 5 or higher cable: 100 meters at 100 Mbps
MAC Address Table: 512
Max Switching Capacity: 1.6 Gbps
Max Forwarding Rate: 1.1904 Mpps
Packet Buffer: 448 Kbit
Power:
 Basic Power Saving: True
 Power Methods: DC
DC: 5V 0.55A
Max Power Consumption (W): 1W
Idle Power Consumption (W): 0.25W
Environment:
Operating Temperature: 0 ~ 40 (32 ~104 )
Storage Temperature: -40 ~ 70 (-40 ~ 158 )
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing

WHAT'S IN THE BOX:

Cudy GS108D 8-Port Gigabit Desktop Switch White x1
Power Adapter x1
Quick Install Guide x1
