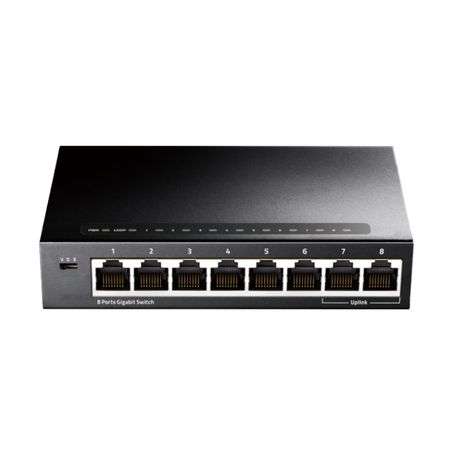

Cudy 8-Port Gigabit Metal Switch

The Cudy GS108 8-Port Gigabit Desktop Switch allows you to manage your home network with ease. It supports bandwidth speeds of up to 16Gbps and features 6 Ethernet ports and 2 uplink ports. Its high-speed RJ-45 connectors support any 10/100/1000Mbps Ethernet devices.

For additional protection, it features a VLAN mode which helps isolate the ports from each other. The IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Used for many applications the Cudy GS105 works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features an Extend mode for longer distances up to 250 meters.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation.

FEATURES:

• Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
• 8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
• Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
• Store-and-Forward switching method
• Supports 16K MAC address auto-learning & auto-ageing

SPECIFICATIONS:

• Standard configuration: 8 10/100/1000M RJ-45 adaptive ports
• Switching Capacity: 16Gbps
• Throughput: 11.9Mpps
• Packet Buffer: 2.5M
• MAC Address: 1K
• Jumbo Frame: 2K
• Transfer Mode: Store and forward
• MTBF: 100000 hour
• Network protocol:
  • IEEE802.3 (10Base-T)
  • IEEE802.3u (100Base-TX)
  • IEEE802.3ab (1000Base-TX)
  • IEEE802.3x (Flow control)
• Industry Standard
  • EMI: FCC Part 15 CISPR (EN55032) class A
  • EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT)
  • Shock: IEC 60068-2-27
  • Free Fall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6
• Network Medium:
  • 10Base-T: Cat3, 4, 5 or above UTP(100m)
  • 100Base-TX: Cat5  or above UTP(100m)
  • 1000Base-TX: Cat5 or above UTP(100m)
• LED Indicators:
  • PWR (Power indicator)
  • Link (Network Link)
  • LOOP (Loop alarm)
• DIP Switch:
• VLAN: Port Isolation, 1-6 ports are isolated each other, all communicate with uplink port 7/8
• Default: Default mode, Support loop alarm
• Extend: Monitor Mode, 1-6 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode,  port 7 and port 8 as an uplink port
• Power Voltage:
  • Power Input Voltage: AC 100-240 V
  • Switch Input Voltage: DC 5V
• Product Dimensions: 13.7 x 7.7 x 2.5 cm
• Product Weight: 300g

WHAT'S IN THE BOX:

• Cudy GS108 8-Port Gigabit Desktop Switch - Black x1
• Power Adapter x1
• Quick Install Guide x1
