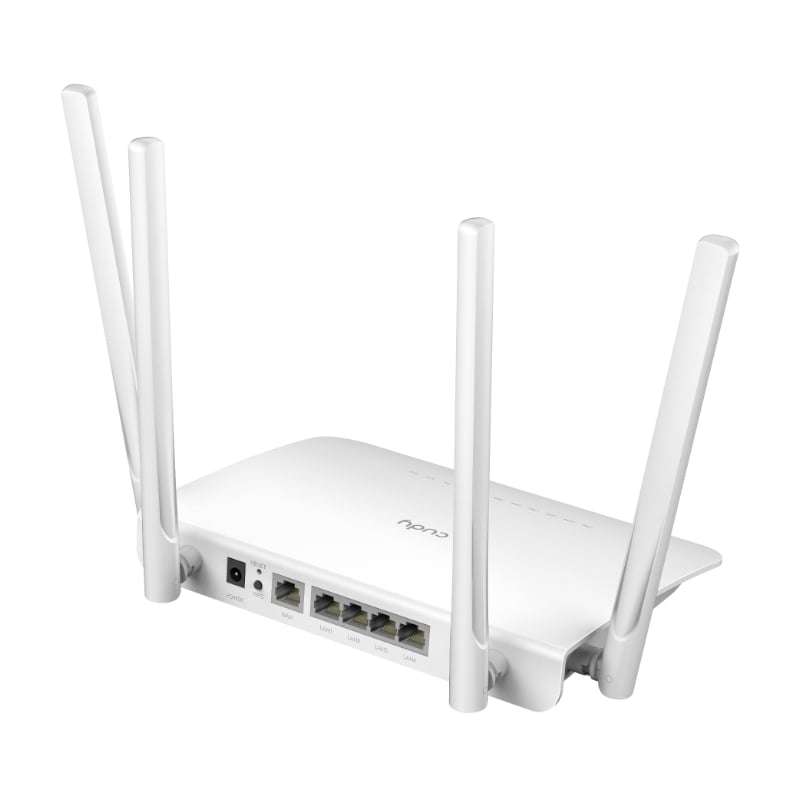

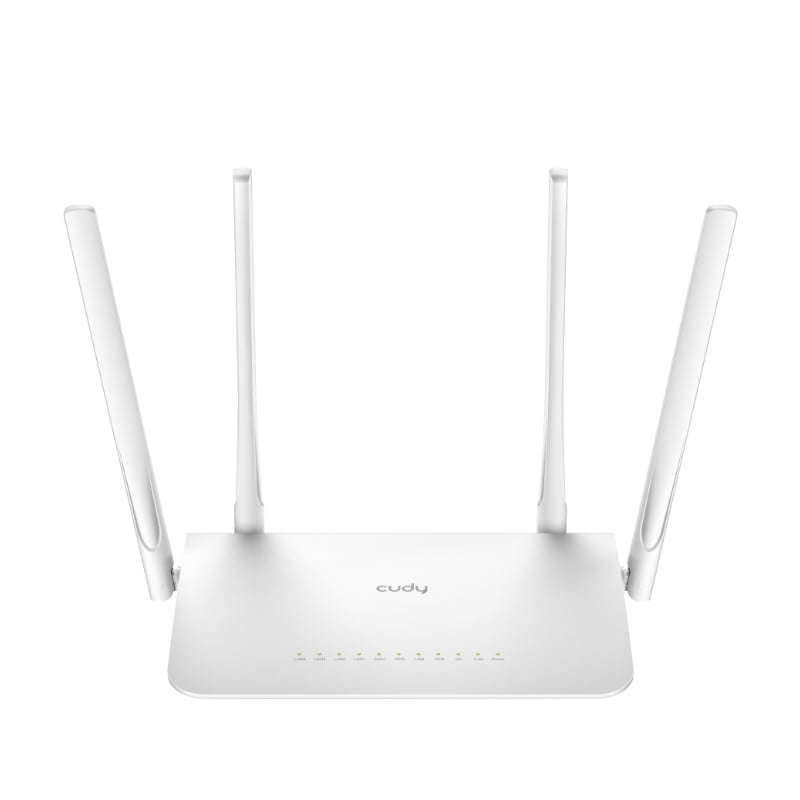

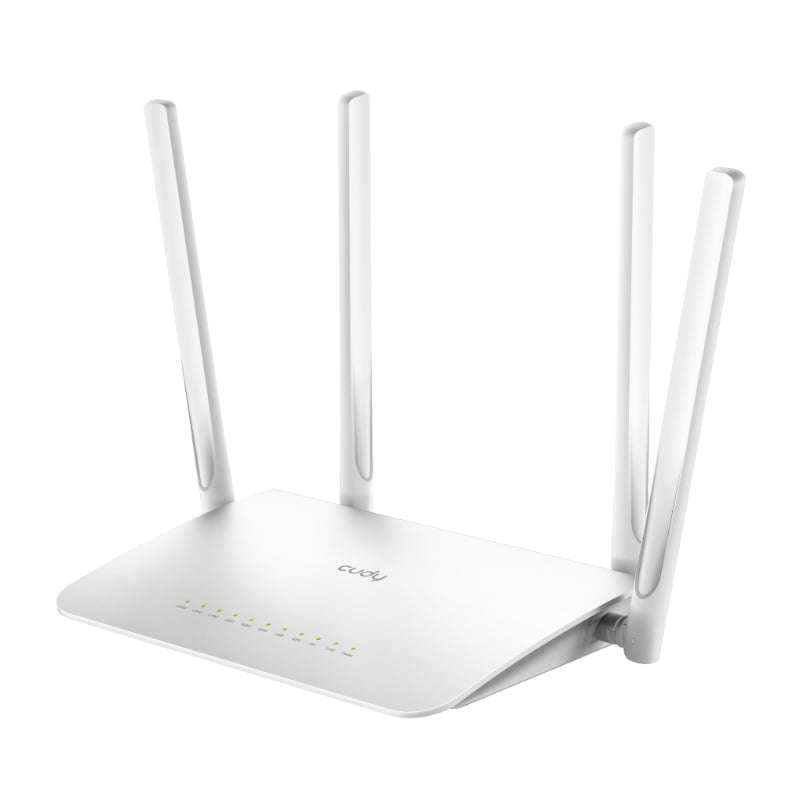

Cudy AC1200 Gigabit Wi-Fi Mesh Router

FEATURES:

AC1200 Dual-Band Wi-Fi Speed

High-Performance Dual Core CPU

16MB Flash and 128MB DDR3

5 x Gigabit Ethernet Ports

4 x 5dBi High Gain Antennas

VPN Clients and DDNS Support

5-IN-1 WiFi Router/ Mesh/Repeater/ WISP/ Access Point

SPECIFICATIONS:

Processor: Dual-Core CPU

Flash: 16MB

DDR: 128MB

Antenna: 4× Fixed Omni-Directional Antennas

Interface:

1× 1000/100/10 Mbps WAN Port

4× 1000/100/10 Mbps LAN Ports

Button: WPS Button, Reset Button

External Power Supply: 12 V / 1 A

Wireless Standards:

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

Frequency: 5 GHz, 2.4 GHz

Signal Rate:

867 Mbps (5 GHz), 300 Mbps (2.4 GHz)

Compatible with 802.11a/b/g/n/ac Wi-Fi standards

Transmit Power:

CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)

FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

Wireless Modes:

Enable/Disable Wireless Radio, WMM, WEP, WPA/WPA2

Wireless Functions: WPA-PSK/WPA2-PSK

WAN Type: Dynamic IP/Static IP/PPPoE

Management:

Parental Control

Guest Network

DHCP: Server, DHCP Client List, Address Reservation

Dynamic DNS: Compatible with 15 more DDNS providers

Guest Network:

2.4 GHz guest network × 1

5 GHz guest network × 1

NAT: Port Forwarding, Port Triggering, UPnP, DMZ

VPN Client: PPTP/L2TP/OpenVPN/WireGuard

System Requirements:

Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Cable or DSL Modem

Subscription with an internet service provider (for internet access)

Product Dimensions: 20.5 x 13.7 x 3.8 cm

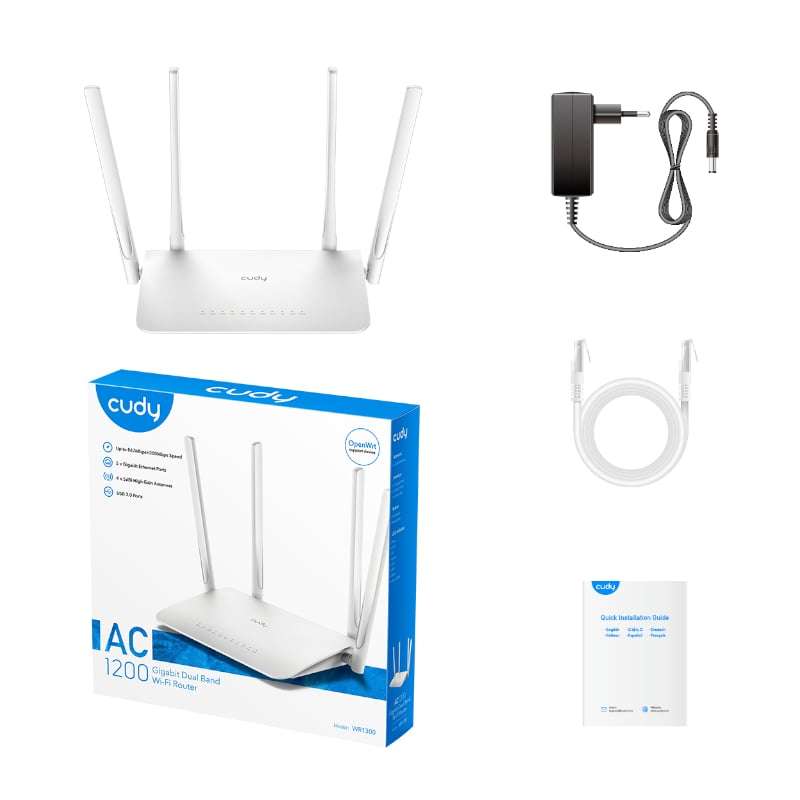

WHATS IN THE BOX:

Cudy AC1200 Gigabit Dual Band Smart WiFi Router White x1

Power Adapter x1

RJ45 Ethernet Cable x1

Quick Installation Guide
