cudy AC1200 WiFi 4G LTE Cat6 Gigabit Router

cudy AC1200 WiFi 4G LTE Cat6 Gigabit Router

The Cudy LT700 AC1200 4G LTE Cat6 Wi-Fi Router offers high-speed dual-band Wi-Fi and lightning-fast 4G LTE Cat.6 Connectivity. It supports a higher level of LTE-A technology, allowing you to achieve data rates of up to 300/50Mbps. The built-in 44 MIMO high-performance antennas also increase your service capacity and expand the internet coverage for your subscribers. All of this combined with 4 detachable SMA Antenna interfaces on the back of the router, lets you easily connect to any outdoor cellular antennas for a better and more stable signal. The LT700 also supports 4G band lock to make it possible to lock the 4G working frequency to one or several bands to keep the stability of operation.

It features Dual SIM slots, allowing you to keep the device online at all times. As a backup for your mobile connection, you can also use the additional WAN/LAN slot if the mobile source is unavailable. For protection it supports DNS Encryption with Cloudflare and Google, this in-turn protects your privacy while preventing eavesdropping and manipulation of DNS data via any man-in-the-middle attacks.

FEATURES:
4G LTE advanced CAT.6 CPE
AC1200 dual-band Wi-Fi
Dual SIM slots (Nano)
4 x Gigabit Ethernet Ports
4 x Detachable Cellular Antennas
2 x Fixed Wi-Fi Antennas
DNS over Cloudare/Google
WireGuard/OpenVPN/PPTP/L2TP/Zerotier

SPECIFICATIONS:
AC Power Adapter Input: 90~260V
AC Power Adapter Output: 12V, 1.5A
DC input: (12V-1.5A) Barrel Plug
Wi-Fi: 2.4GHz (802.11n/g/b, MIMO 300Mbps), 5GHz (802.11ac/an/a, MIMO 867Mbps)
LTE FDD: Max 300Mbps (DL)/50Mbps (UL)
LTE TDD: Max 226Mbps (DL)/48Mbps (UL)
DC-HSPA+: 42 Mbps (DL)/11.5 Mbps (UL)
WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
CPU: Mediatek Dual Core 880MHz
4G Module: Quectel EG120K (Qualcomm)
DRAM: 256MB (2Gbit) DDR3
Flash: 16MB (128Mbit)
4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN
2 x SIM Slots (Nano)
1 x WPS Button
1 x Reset Button
2 x Fixed Wi-Fi Antennas
4 x Detachable Cellular Antennas
LED indicators (Power, Wi-Fi, Internet, Signal)
DHCP: Server, Client List, Address Reservation
NAT: Port Forwarding, Port Triggering, UPnP, DMZ
Firewall: Mac Filter, IP Filter, Domain Filter
DDNS: Compatible with 15 more DDNS providers
VPN: WireGuard/OpenVPN/PPTP/L2TP/Zerotier
DNS over TLS: Cloudare/Google
Schedule: Schedule Reboot /Wi-Fi Schedule
Internet Protocol version 4 or 6 (IPv4/IPv6)
Quality of Service (QoS)
TTL conguration (Extend/Spoof)
Band Selection
Operation Temperature: 0 C to +45 C
Storage Temperature: -40 C to +70 C
Relative Humidity: 5% to 95% Non-Cond
System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access)
Product Dimensions: 25.3 x 15.2 x 4.8 cm

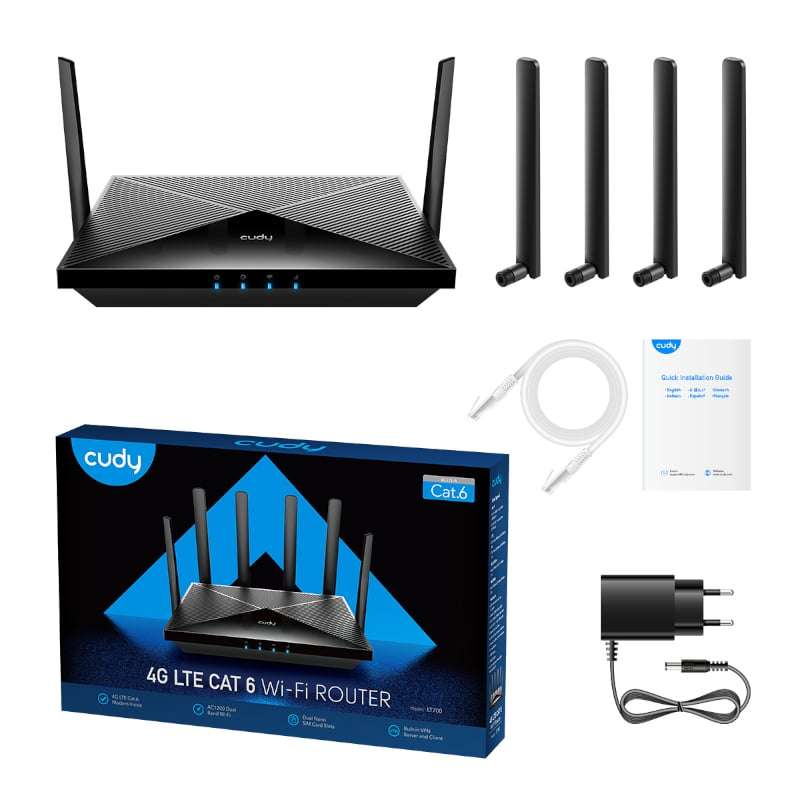

WHAT'S IN THE BOX:
Cudy LT700 AC1200 4G LTE Cat6 Wi-Fi Router Black x1
Power Adapter x1
RJ45 Ethernet Cable x1
Quick Installation Guide x1
