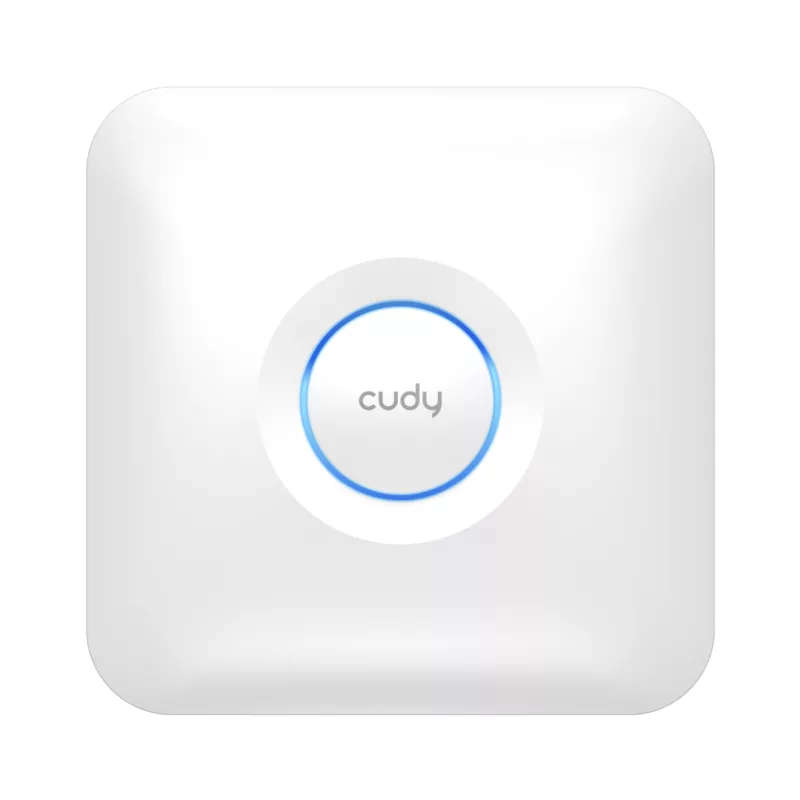

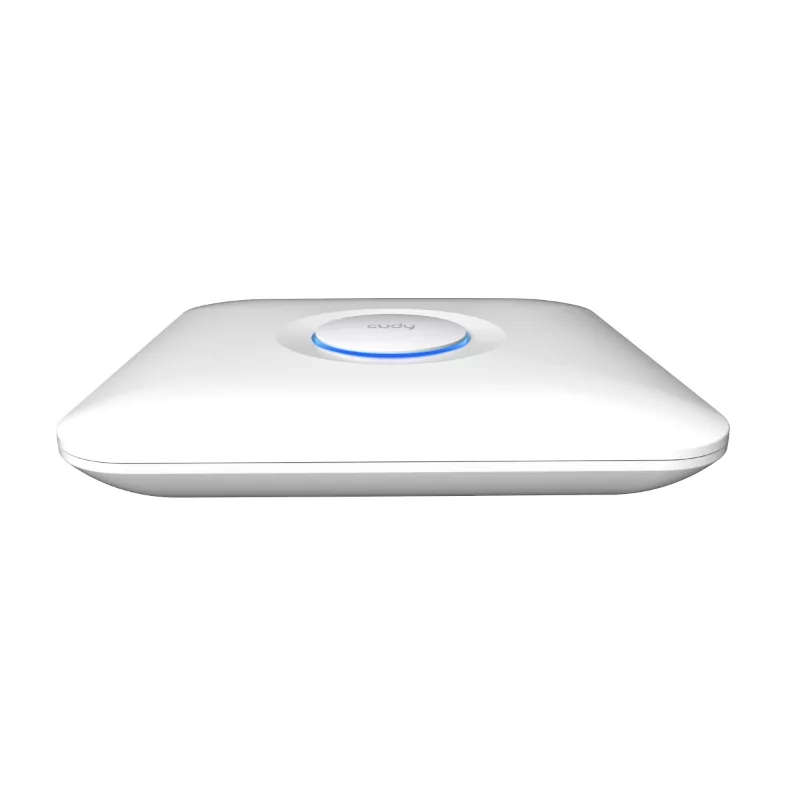

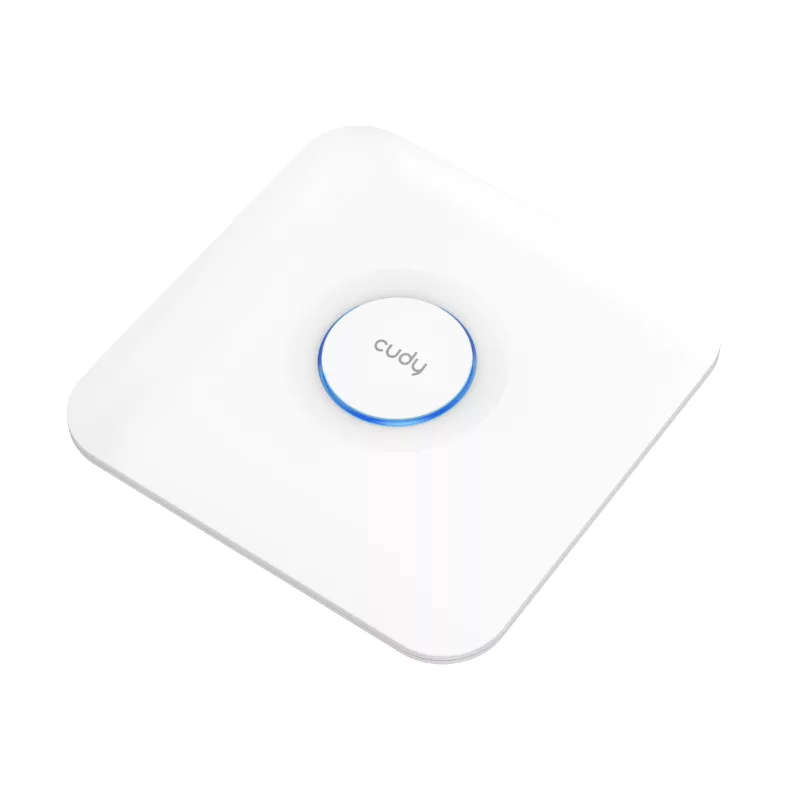

Cudy AC1300 Gigabit Dual Band Ceiling Access Point

The Cudy AP1300 AC1300 Dual-Band Access Point is a great way to extend your existing LAN network into a wireless one. It features a high-speed dual-band network that allows you to access 2.4GHz or 5GHz frequency bands. It can reach transfer speeds of up to 867Mbps on a 5GHz frequency. It also supports 1 x 10/100/1000Mbps for LAN and WAN, as well as support for PoE(802.af) for more convenience. Its simple mounting design makes it easy to attach to a wall or ceiling.

FEATURES:

• Up to 867Mbps Wireless Speed
• Dual-Band Frequency
• 1x10/100/1000Mbps WAN + 1x 10/100/1000Mbps LAN
• Support PoE(802.af) for convenient and affordable installation
• Simple mounting design for easy attachment to a wall or ceiling

SPECIFICATIONS:

• Chipset: Qualcomm QCA9563+QCA8337+QCA9886
• DDR: 128MB; Flash: 16MB
• PA: 2.4G SKY85330-11, 5.8G SKY85735-11
• Protection: Built in Watchdog Chipset
• Antenna: Built in 5 x 3dBi Antennas
• Wireless Frequency:
  • 2.4GHz: 450Mbps
  • 5GHz: 867Mbps
• RF Parameters:
• Output Power (Max): 200mW (23dBm)
• Receiving Sensitivity (Max): -96dBm
• Frequency:
  • 5.8GHz: 5.18-5.825GHz
  • 2.4GHz : 2.412GHz ~ 2.472GHz
• Physical Ports:
  • 1* 10/100/1000Mbps WAN RJ45 Ethernet Port; Support POE Power Supply;
  • 1* 10/100/1000Mbps LAN RJ45 Ethernet Port; Support POE Power Supply;
  • 1* RESET / WPS Button
• Indicator:
  • Three Color Indicator
  • Power Supply: 802.3af/802.3at POE Power Supply(0-100m)
• Power:
• Power Adapter: 48V 0.32A POE Power Adapter(Configured)
• Power Consumption (Max):
• IP Index: IP31
• MTBF: >250000H
• Installation Way: Ceiling-mounted, Wall-mounted
• Case Material: Plastic Case(Imported ABS Material)
• Product Dimensions: 22 x 22 x 3.5 cm

WHAT'S IN THE BOX:

• Cudy AP1300 AC1300 Dual-Band Access Point - White x1
