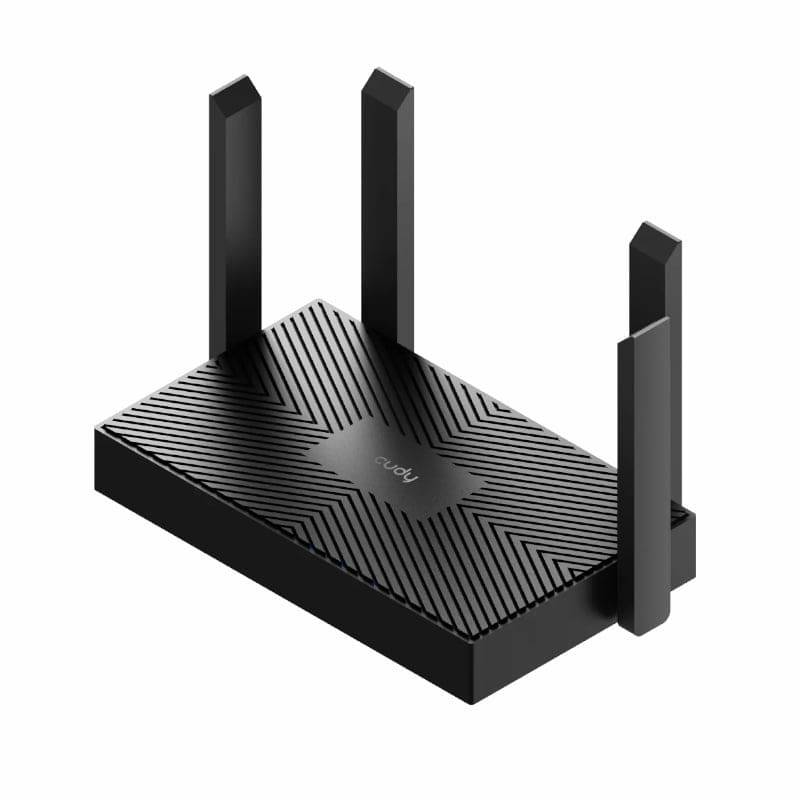

Cudy AX1500 Wi-Fi Router

•  4-Stream Dual-Band Wi-Fi 6
•  4× Gigabit Ethernet Ports
•  100 Connected Devices
•  Covers 100 m2 (1,100 ft2)
• MU-MIMO, OFDMA, Beamforming

The Cudy AX1500 Wi-Fi 6 Router (WR1500) is your gateway to next-generation internet speed and reliability. Wi-Fi 6 offers up to four times the capacity and 38% faster speeds on the 5 GHz band. Enjoy a combined speed of up to 1501 Mbps, ideal for fast downloads, 4K streaming, and seamless web browsing. Connect up to 128 devices with ease, thanks to advanced technologies such as 1024-QAM, HE160, and Gigabit Ethernet ports, which ensure ultra-fast and reliable Wi-Fi for all of your smart home devices.

The AX1500 uses beamforming, MU-MIMO, and OFDMA technologies to improve coverage and reduce latency while easily handling multiple devices. WPA3 provides the highest level of encryption for Wi-Fi, protecting your data from threats.

FEATURES:

•  4-Stream Dual-Band Wi-Fi 6
•  4× Gigabit Ethernet Ports
•  100 Connected Devices
•  Covers 100 m2 (1,100 ft2)
• MU-MIMO, OFDMA, Beamforming

SPECIFICATIONS:

• CPU: 1 GHz Single-Core CPU
• Memory/Storage:
• Flash/ROM: 16 MB (128 Mbit) NOR
• DDR/RAM: 128 MB (1 Gbit) DDR3
• Wireless:
• 5 GHz Wi-Fi Speed: 1201 Mbps
• 2.4 GHz Wi-Fi Speed: 300 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 4× Fixed
• Range Performance: Max: 120 m (394 ft) (Indoor WiFi range varies depending on the layout and wall materials.)
• Wall Performance: Two wooden walls with thickness < 3.8 cm (1.5''), One concrete wall with thickness < 20 cm (7'')
• Wi-Fi Transmission Power: CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz/5 GHz)
• Interfaces:

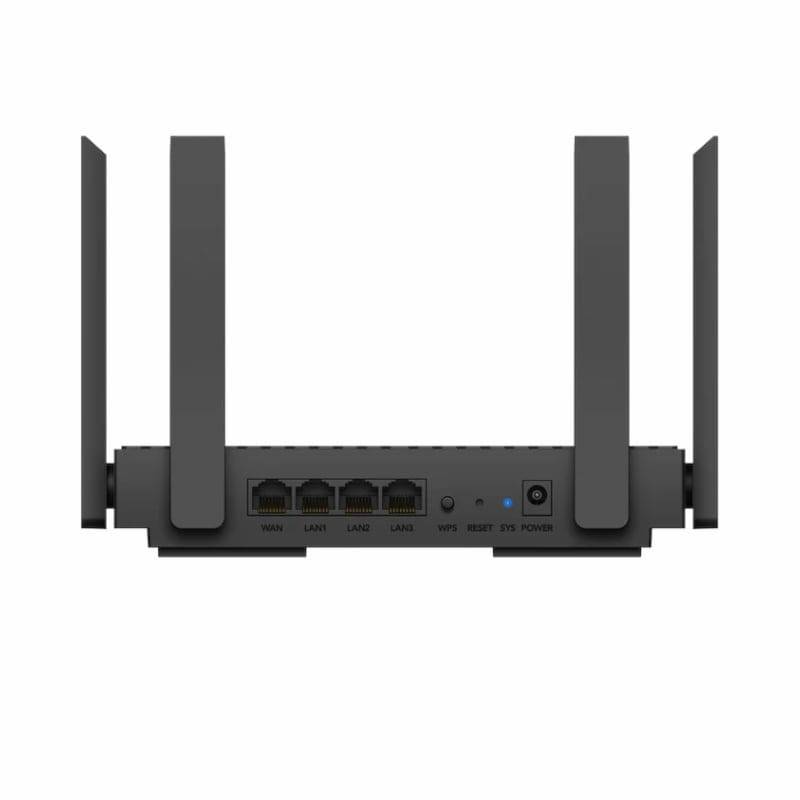

• Gigabit RJ45 Ports: 4
• Ethernet Notes: 1× WAN port; the rest are LAN ports
• LED: System
• Physical Buttons: WPS Button, Reset Button
• Power:
• Power Methods: DC
• DC: 12V, 1A
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC
• Environment:
• Operating Temperature: 0 ~ 40 (32 ~104 )
• Storage Temperature: -40 °C ~ 70 °C (-40 °C ~ 158 °C)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing
•  Installation: Desktop, Wall-Mounting

WHAT'S IN THE box?

• Cudy AX1500 Wi-Fi 6 Router (Black)
• Power Adapter x1
• RJ45 Ethernet Cable x1
• Quick Installation Guide x1
