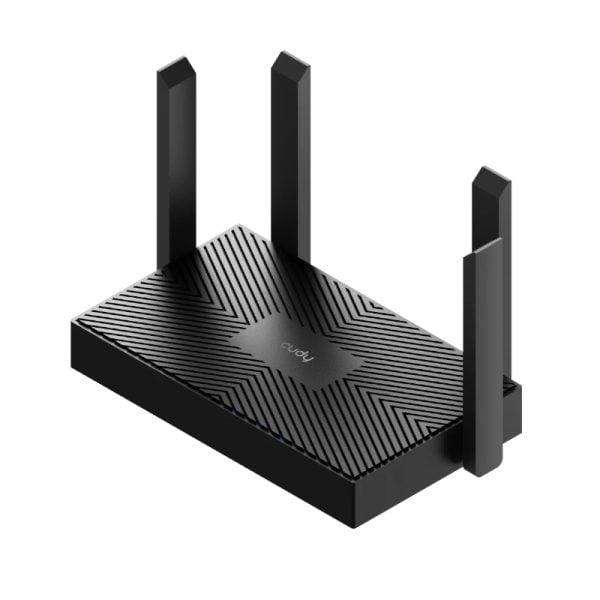

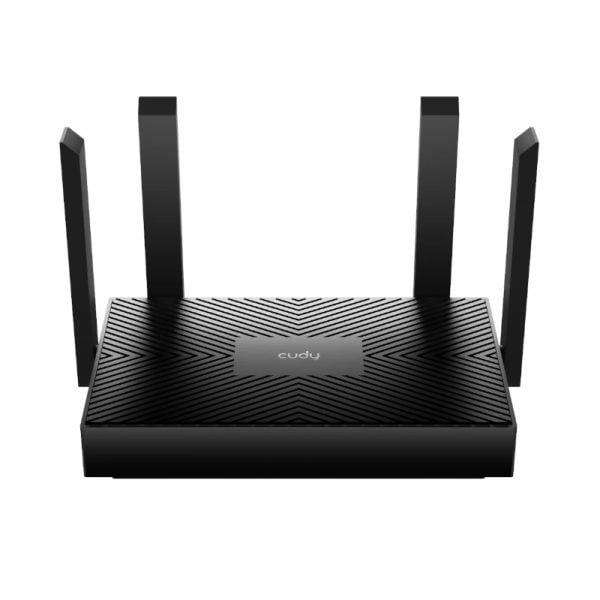

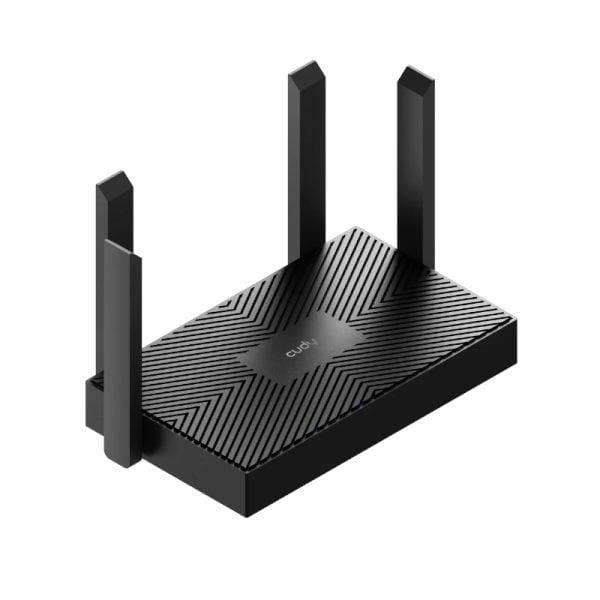

Cudy AX1500 Wi-Fi Router

FEATURES:

 4-Stream Dual-Band Wi-Fi 6

 4× Gigabit Ethernet Ports

 100 Connected Devices

 Covers 100 m2 (1,100 ft2)

MU-MIMO, OFDMA, Beamforming

SPECIFICATIONS:

CPU: 1 GHz Single-Core CPU

Memory/Storage:

Flash/ROM: 16 MB (128 Mbit) NOR

DDR/RAM: 128 MB (1 Gbit) DDR3

Wireless:

5 GHz Wi-Fi Speed: 1201 Mbps

2.4 GHz Wi-Fi Speed: 300 Mbps

5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

Wi-Fi Antennas: 4× Fixed

Range Performance: Max: 120 m (394 ft) (Indoor WiFi range varies depending on the layout and wall materials.)

Wall Performance: Two wooden walls with thickness < 3.8 cm (1.5), One concrete wall with thickness < 20 cm (7)

Wi-Fi Transmission Power: CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz/5 GHz)

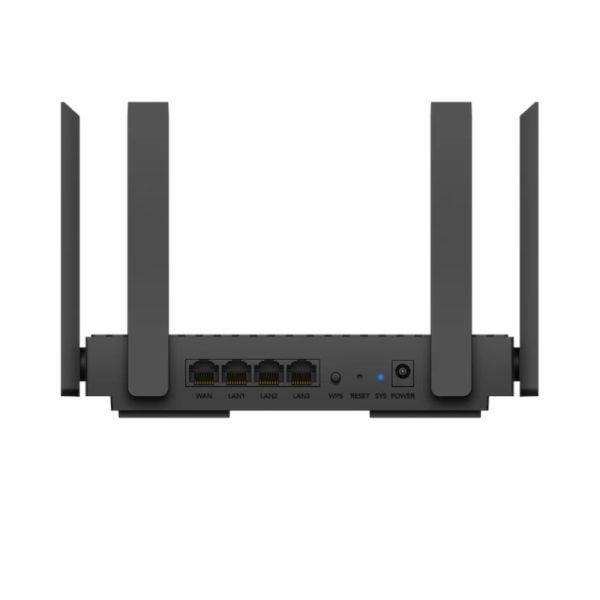

Interfaces:

Gigabit RJ45 Ports: 4

Ethernet Notes: 1× WAN port; the rest are LAN ports

LED: System

Physical Buttons: WPS Button, Reset Button

Power:

Power Methods: DC

DC: 12V, 1A

Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC

Environment:

Operating Temperature: 0 ~ 40 (32 ~104 )

Storage Temperature: -40 °C ~ 70 °C (-40 °C ~ 158 °C)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

 Installation: Desktop, Wall-Mounting

WHATS IN THE box?

Cudy AX1500 Wi-Fi 6 Router (Black)

Power Adapter x1

RJ45 Ethernet Cable x1

Quick Installation Guide x1
