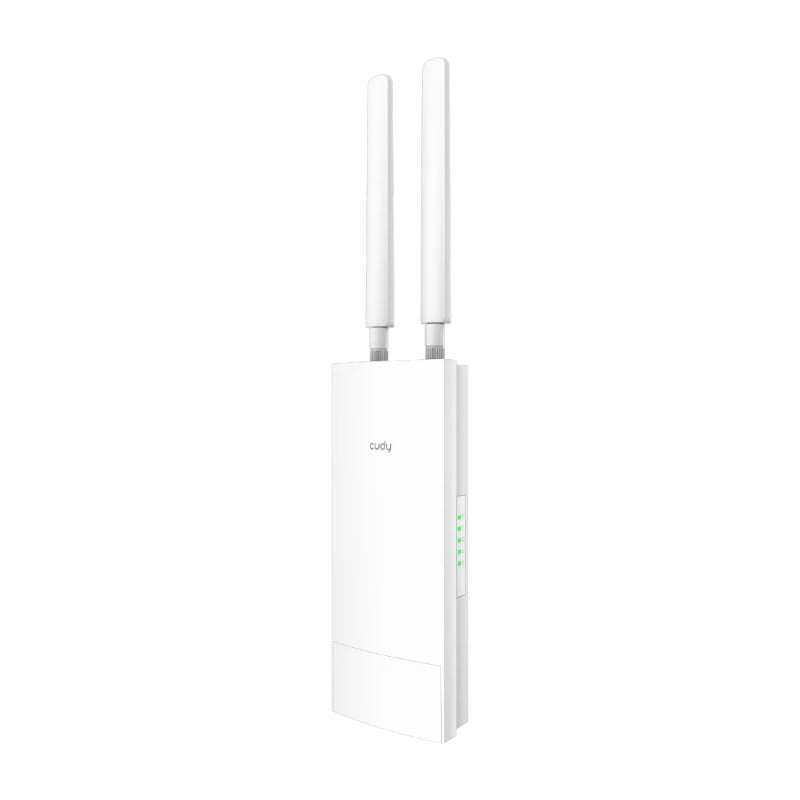

Cudy AX3000 2.5G Dual Band Ceiling Access Point- Outdoor

The Cudy AX3000 2.5G Dual Band Ceiling Access Point - Outdoor is an excellent choice for converting LAN networks into high-speed, dependable wireless networks. This pole or wall-mounted WiFi 6 AP with eFEM provides excellent range performance, making it ideal for high-density environments like parks, farms, and parking lots. Its robust IP65 casing, Power over Ethernet (PoE), and Cudy Mesh features make it ideal for outdoor use. It achieves total throughput of up to 3 Gbps by using the highest 160 MHz channel width and 1024-QAM modulation. OFDMA and MU-MIMO technologies can support over 100 devices with low latency, with a maximum capacity of 512 devices.

The AP's five power amplifiers and 3+2 antenna structure provide excellent signal navigation through obstacles. The IP65 case protects it from rain and dust, and the 6 kV Lightning/Surge and 8 kV ESD protection ensures stability during thunderstorms. It can operate at temperatures ranging from -40°F to 158°F (-40°C to 70°C). Mesh technology provides a unified Wi-Fi name across the premises, allowing for seamless roaming without the need for manual switching. Connecting the PoE adapter's LAN port to various Cudy devices integrates the AP into the Mesh network, with the option of using Ethernet backhaul after pairing. Adaptive Routing improves network performance by switching to better paths when the original ones become congested.

FEATURES:

•  IP65, -40~70°C (-40~158°F), 6kV Surge
• 5-Stream Dual-Band Wi-Fi 6
• 1× Shielded GbE (PoE In)
• 802.3at/af, Passive PoE
• Watchdog, Schedule Reboot
• Max 320 m (1050 ft) Range
• 200 Connected Devices

SPECIFICATIONS:

• CPU: 1.3 GHz Dual-Core CPU
• Chipset: MT7981BA
• Flash: 128 MB (1 Gbit) NAND
• DDR: 256 MB (2 Gbit) DDR3
• Wireless:
• 5 GHz Wi-Fi Speed_ 2402Mbps
• Wi-Fi Bands_ EU + DFS
• 2.4 GHz Wi-Fi Speed_ 574 Mbps
• 5 GHz Wi-Fi Streams_ 3T3R (3×3 MIMO)
• 2.4 GHz Wi-Fi Streams_ 2T2R (2×2 MIMO)
• Wi-Fi Antennas_ 1× Internal+2× External
• 5 GHz Antenna Gain Max_ 6 dBi
• 2.4 GHz Antenna Gain Max_ 4 dBi
• FEM or PA/LNA: 5 GHz_ 3× High-Power, 2.4 GHz_ 2× High-Power
• Range Performance_
• Max: 320 m (1050 ft)
• Park: 280 m (919 ft)
• Street: 70 m (230 ft)
• Woods: 40 m (131 ft)
• Interfaces:
• 2.5G RJ45 Ports_ 1
• Ethernet Notes_ Accepts PoE powering
• LED: System
• Physical Buttons_ Reset Button, WPS Button
• Power Input_ PoE via Ethernet Port
• Power:
• Power Methods_ 802.3at PoE/Passive PoE
• Passive PoE_ 48 ~ 57V
• Power Adapter_ Input_ 100 ~ 240 V, 50/60 Hz ACOutput_ 48V Passive PoE
• Max Power Consumption (W): 18 W
• Idle Power Consumption (W): 5 W
• Reliability:
• System Stability_ Watchdog
• ESD Air Protection_ 4kV
• ESD Contact Protection_ 8kV
• Environment: Operating Temperature_ -10 ~ 60 (14 ~140 ), Storage Temperature_ -40 ~ 70 (-40 ~ 158 )
• Installation: Wall-Mounting, Ceiling-Mounting

WHAT'S IN THE BOX_

• Cudy AX3000 2.5G Dual Band Ceiling Access Point Outdoor White x1
• Power Adapter x1

Lenght: 46
Width: 33.7
Height: 45
Colour:
Warranty: 12 Months
