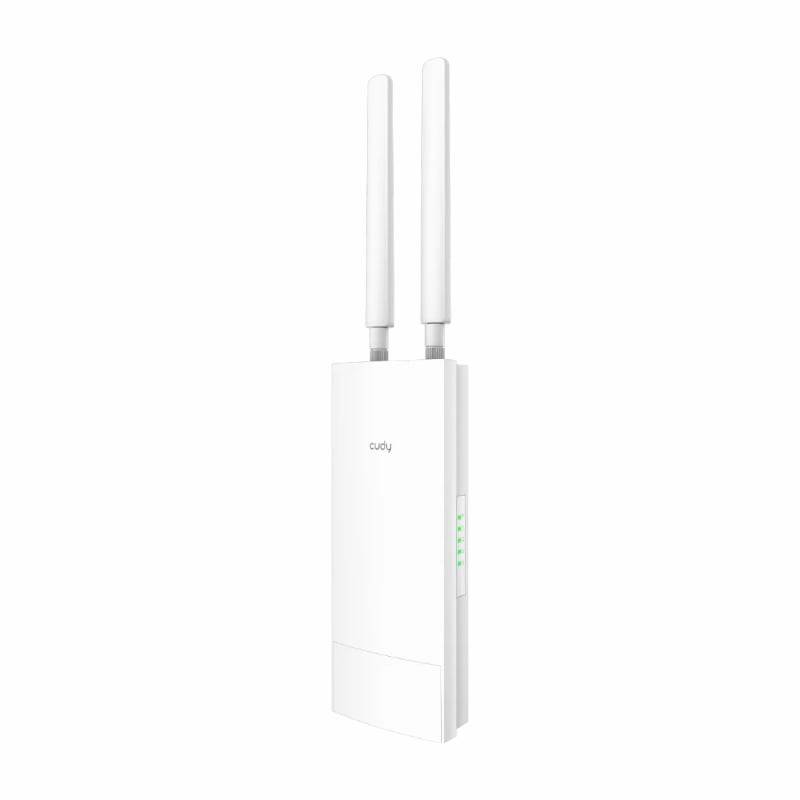

The Cudy AX3000 2.5G Dual Band Ceiling Access Point - Outdoor is an excellent choice for converting LAN networks into high-speed, dependable wireless networks. This pole or wall-mounted WiFi 6 AP with eFEM provides excellent range performance, making it ideal for high-density environments like parks, farms, and parking lots. Its robust IP65 casing, Power over Ethernet (PoE), and Cudy Mesh features make it ideal for outdoor use. It achieves total throughput of up to 3 Gbps by using the highest 160 MHz channel width and 1024-QAM modulation. OFDMA and MU-MIMO technologies can support over 100 devices with low latency, with a maximum capacity of 512 devices.
The AP's five power amplifiers and 3+2 antenna structure provide excellent signal navigation through obstacles. The IP65 case protects it from rain and dust, and the 6 kV Lightning/Surge and 8 kV ESD protection ensures stability during thunderstorms. It can operate at temperatures ranging from -40°F to 158°F (-40°C to 70°C). Mesh technology provides a unified Wi-Fi name across the premises, allowing for seamless roaming without the need for manual switching. Connecting the PoE adapter's LAN port to various Cudy devices integrates the AP into the Mesh network, with the option of using Ethernet backhaul after pairing. Adaptive Routing improves network performance by switching to better paths when the original ones become congested.
FEATURES:
IP65, -40~70°C (-40~158°F), 6kV Surge
5-Stream Dual-Band Wi-Fi 6
1× Shielded GbE (PoE In)
802.3at/af, Passive PoE
Watchdog, Schedule Reboot
Max 320 m (1050 ft) Range
200 Connected Devices
SPECIFICATIONS:
CPU: 1.3 GHz Dual-Core CPU
Chipset: MT7981BA
Flash: 128 MB (1 Gbit) NAND
DDR: 256 MB (2 Gbit) DDR3
Wireless:
5 GHz Wi-Fi Speed: 2402Mbps
Wi-Fi Bands: EU + DFS
2.4 GHz Wi-Fi Speed: 574 Mbps
5 GHz Wi-Fi Streams: 3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 1× Internal+2× External
5 GHz Antenna Gain Max: 6 dBi
2.4 GHz Antenna Gain Max: 4 dBi
FEM or PA/LNA: 5 GHz: 3× High-Power, 2.4 GHz: 2× High-Power
Range Performance:
Max: 320 m (1050 ft)
Park: 280 m (919 ft)
Street: 70 m (230 ft)
Woods: 40 m (131 ft)
Interfaces:
2.5G RJ45 Ports: 1
Ethernet Notes: Accepts PoE powering
LED: System
Physical Buttons: Reset Button, WPS Button
Power Input: PoE via Ethernet Port
Power:
Power Methods: 802.3at PoE/Passive PoE
Passive PoE: 48 ~ 57V
Power Adapter: Input: 100 ~ 240 V, 50/60 Hz ACOutput: 48V Passive PoE
Max Power Consumption (W): 18 W
Idle Power Consumption (W): 5 W
Reliability:
System Stability: Watchdog
ESD Air Protection: 4kV
ESD Contact Protection: 8kV
Environment: Operating Temperature: -10 ~ 60 (14 ~140 ), Storage Temperature: -40 ~ 70 (-40 ~ 158 )
Installation: Wall-Mounting, Ceiling-Mounting
WHAT'S IN THE BOX:
Cudy AX3000 2.5G Dual Band Ceiling Access Point Outdoor White x1
