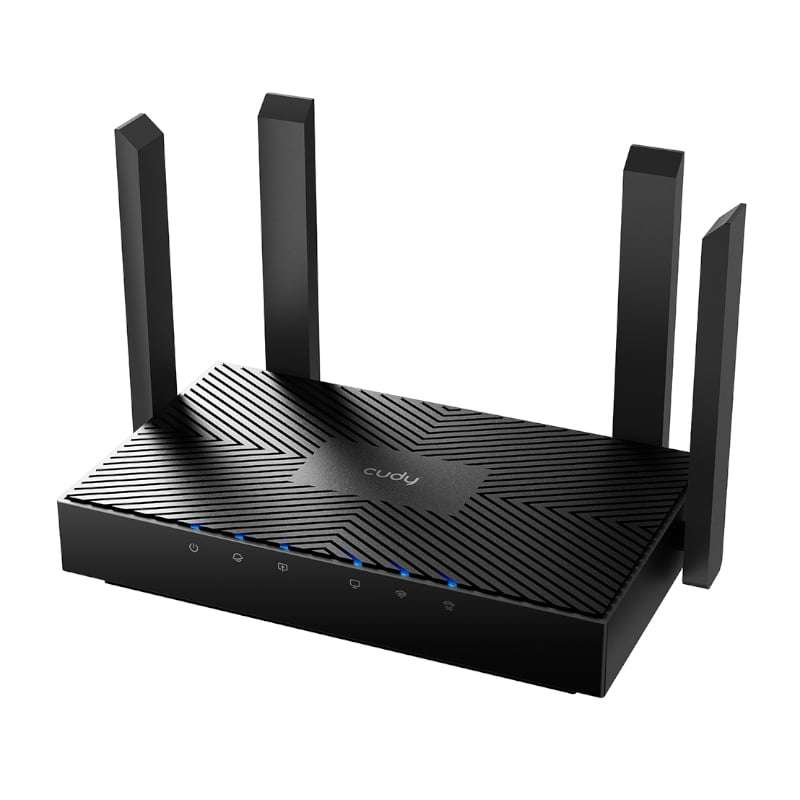

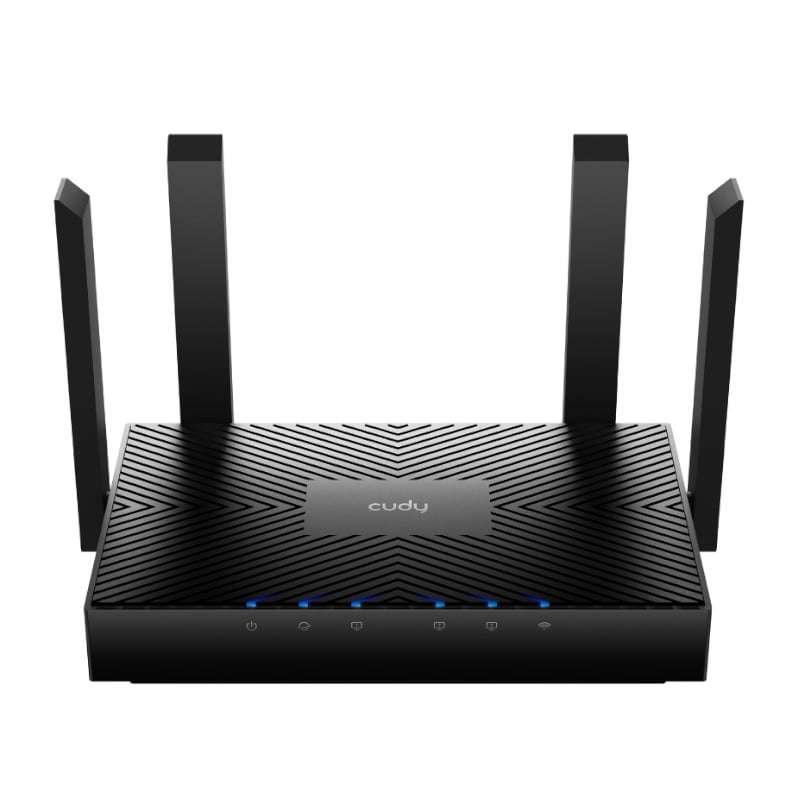

The Cudy WR3000 AX3000 Gigabit Dual Band Wi-Fi 6 Mesh Router features a new Wi-Fi 6 chip with a 4-nm made process, delivering amazing powers and an impressive efficiency bump, enabling the AX3000 to maintain responsiveness and handle intensive transmission tasks such as online gaming streams and 4K live feeds. Equipped with Wi-Fi 6, the AX3000 boasts the highest 160Mhz bandwidth and 1024-QAM to reach up to 3Gbps speeds, which is more than 2.5x faster than the last-gen AC 2×2 Wi-Fi router. This high throughput allows massive amounts of data including your 4K video streaming and hopping to end devices without any throttling. The upgraded Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA, providing up to 8X (2.4 GHz) to 16X (5 GHz) greater network capacity to be more responsive under heavy use.
FEATURES:
Super-Fast AX3000 Wi-Fi 6
1.3 GHz Dual-Core Cortex-A53 CPU
4× 10/100/1000Mbps Ethernet Ports
160 MHz Channel Width
DL/UL OFDMA and DL/UL MU-MIMO
Wireguard/OpenVPN/L2TP/PPTP VPN Server and Client
IPv4/IPv6
TR069/TR098/TR181/TR111
SPECIFICATIONS:
Processor: 1.3 GHz Dual-Core ARM Cortex-A53 CPU
Antennas: 4 × Fixed Omnidirectional Antennas

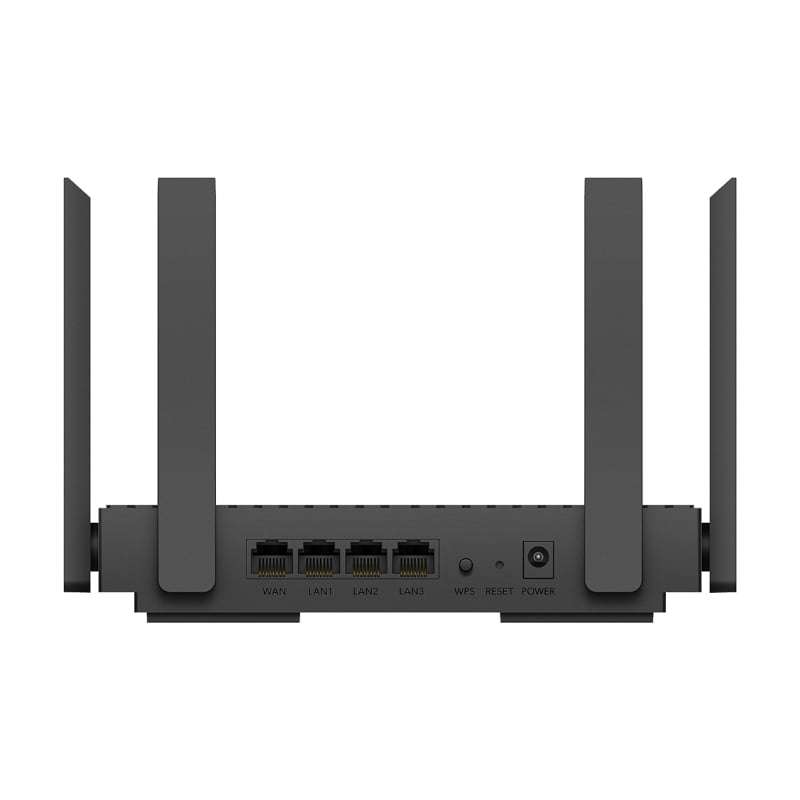

Ethernet Ports:
1 × 10/100/1000Mbps WAN Port
3 × 10/100/1000Mbps LAN Ports
Buttons: WPS Button, Reset Button
External Power Supply: 12 V / 1 A
Product Dimensions without Antennas: 18 x 10.7 x 3.5 cm
Product Dimensions with Antennas: 20 x 11.7 x 3.5 cm
Wireless Standards: IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/n/b/g 2.4GHz
Wireless Frequency: 5GHz, 2.4GHz
Wireless Bandwidth: 20/40/80/160 MHz
Signal Rate:
2402Mbps (5 GHz), 574Mbps (2.4 GHz)
Compatible with 802.11a/b/g/n/ac Wi-Fi standards
Transmit Power:
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
FCC: <30d Bm (2.4 GHz & 5 GHz)
Wireless Modes: Enable/Disable Wireless Radio, WMM
Wireless security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3
Other Features: MU-MIMO, Beamforming
VPN Server and Clinet: Wireguard/OpenVPN/L2TP/PPTP
DNS over TLS: Cloudflare/Google/Quad9
WAN Type: Dynamic IP/Static IP/PPPoE
DHCP: Server, DHCP Client List, Address Reservation
Dynamic DNS: Compatible with 15 more DDNS providers
Guest Network:
2.4 GHz guest network × 1
5 GHz guest network × 1
NAT: Port Forwarding, Port Triggering, UPnP, DMZ
System Requirements:
Microsoft Windows, macOS, NetWare, UNIX or Linux
Firefox 12.0, Chrome 20.0, Safari 4.0, or other Javascript-enabled browsers
A Cable or DSL Modem, or other devices providing wired internet
Subscription with an internet service provider for internet access
Product Dimensions: 20 x 11.7 x 3.5 cm (Antennas not included)

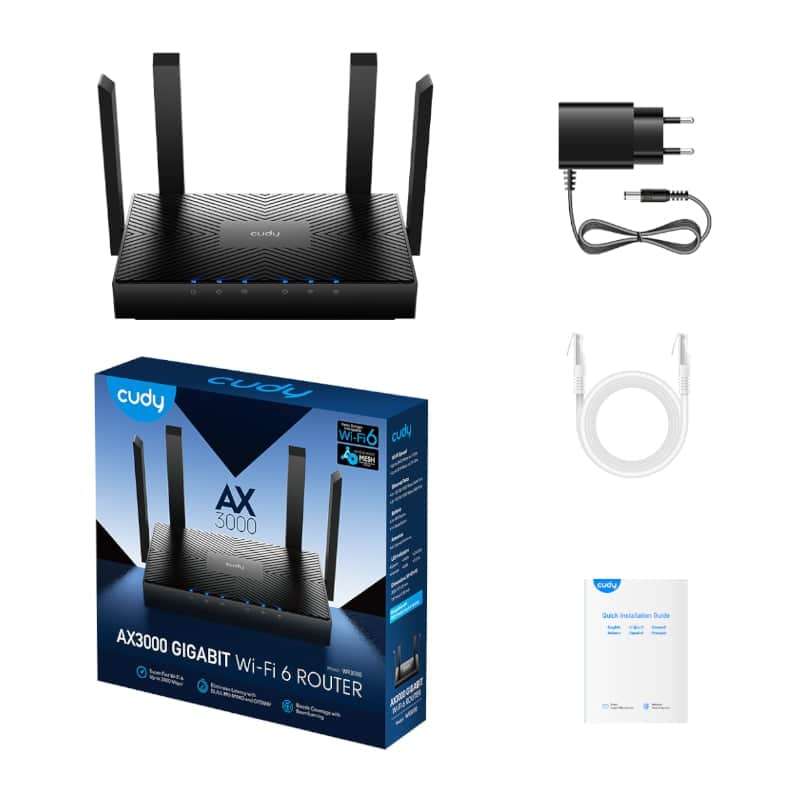

WHAT'S IN THE BOX:
Cudy WR3000 AX3000 Gigabit Dual Band Wi-Fi 6 Mesh Router -Black x1
Power Adapter x1
RJ45 Ethernet Cable x1
Quick Installation Guide x1
