The Cudy AX3000 Mesh Wi-Fi 6 System is a powerful networking solution designed to meet the demands of modern homes with high-bandwidth activities like 4K streaming, online gaming, and smart home integration. Featuring five advanced antennas and Wi-Fi 6 technology, it delivers blazing speeds of up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz, ensuring seamless connectivity across your home. With coverage options for spaces up to 6500 sq ft using a three-pack system, it the perfect choice for large households or multi-level homes with demanding internet needs.
Advanced parental controls allow you to manage online activity by setting time limits and blocking inappropriate websites, ensuring a safe browsing environment for kids. Security is enhanced with WPA3 encryption, protecting your network from brute-force attacks, while a Guest Network feature keeps your personal devices separated from visitors devices for an added layer of privacy. Additionally, the system supports six built-in VPN protocols, offering compatibility with over 50 VPN providers and enabling you to host your own VPN server for secure remote access.
With a 1.3 GHz dual-core CPU and efficient system tools, the Cudy AX3000 ensures reliable performance and easy network management. The intuitive system panel provides clear insights into network status, while the built-in diagnostic tool simplifies troubleshooting. Whether you re managing over 200 connected devices, running simultaneous streams, or maintaining a secure and private network, the Cudy AX3000 Mesh Wi-Fi 6 System offers a dependable and versatile solution tailored for today connected lifestyle.
FEATURES:
- 1.3 GHz Dual-Core CPU
- 4-Stream Dual-Band Wi-Fi 6
- 2402Mbps + 574Mbps Wi-Fi 1
- 200 Connected Devices 2
- Fast Roaming
- Cudy Mesh, VPN Server and Client
- Multi-Band Simultaneous Backhaul
- Cudy App, Cloud Control
- Contains 3 x Mesh Units
SPECIFICATIONS:
- Chipset: MT7981
- CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53
- Flash/ROM: 128 MB (1Gbit) NAND
- DDR/RAM: 256 MB (2Gbit) DDR3
- 5.0GHz Wi-Fi Speed: 2402Mbps
- 2.4GHz Wi-Fi Speed: 574Mbps
- 5.0GHz Wi-Fi Streams: 2T2R (2 2 MIMO)
- 2.4GHz Wi-Fi Streams: 2T2R (2 2 MIMO)
- Wi-Fi Antennas: 5 Internal
- 5.0GHz Antenna Gain Max: 5.1dBi
- 2.4GHz Antenna Gain Max: 4.2dBi
- FEM or PA/LNA: 5 GHz: 3 Internal | 2.4 GHz: 2 Internal
- Beamforming: True
- Range Performance: Max: 220 m (722 ft) Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
- Wall Performance: Two wooden walls with thickness
- Multi-Pack Indoor Coverage:
- 2 Pack: 400 m (4300 sq ft)
- 3 Pack: 600 m (6500 sq ft)
- Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.

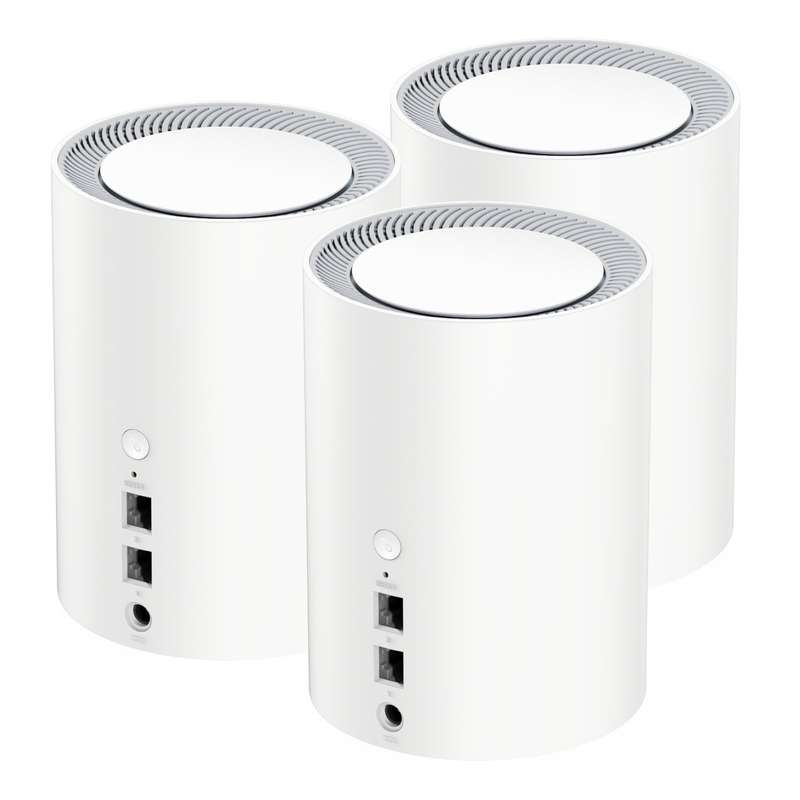

- Interfaces
- 2.5G RJ45 Ports: 1
- Gigabit RJ45 Ports: 1
- Ethernet Notes: The 2.5G port is WAN port, the Gigabit port is LAN port
- LED: System | Speed/Link/ACT of Ethernet Port
- Physical Buttons: WPS Button | Reset Button
- Power Input: DC Jack
- Power Methods: DC
- DC: 12V 1A
- Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC | Output: 12V 1A DC
- Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
- Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
- Certifications: FCC, CE
- Product Dimensions: 11 x 15.4 cm
- Product Weight: 360g

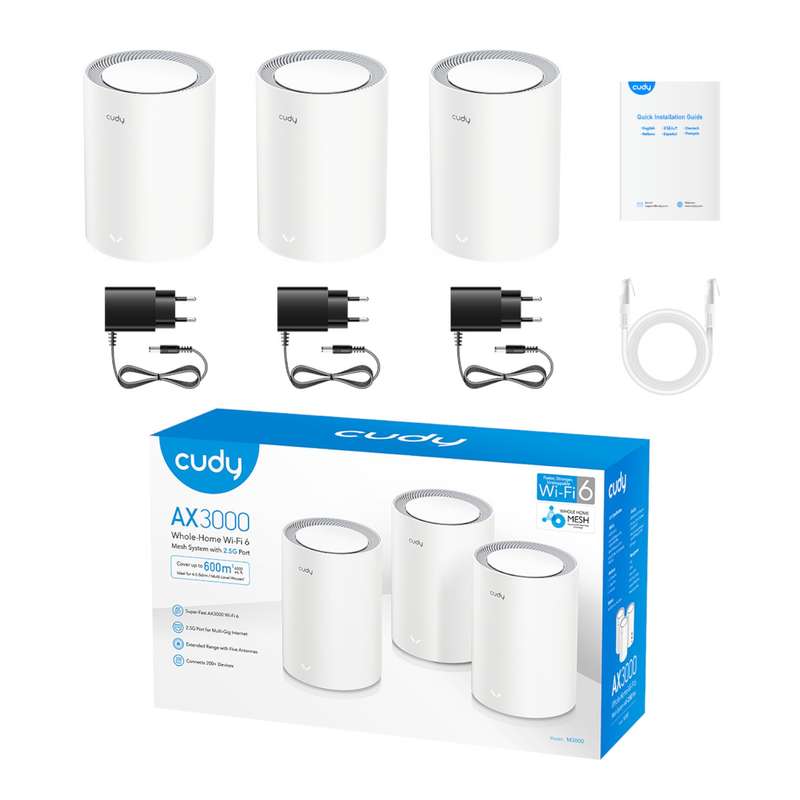

WHAT IN THE BOX:
- Cudy AX3000 Mesh Wi-Fi 6 System White x3
- Power Adapter x3
- Ethernet Cable x1
- Installation Guide x1
