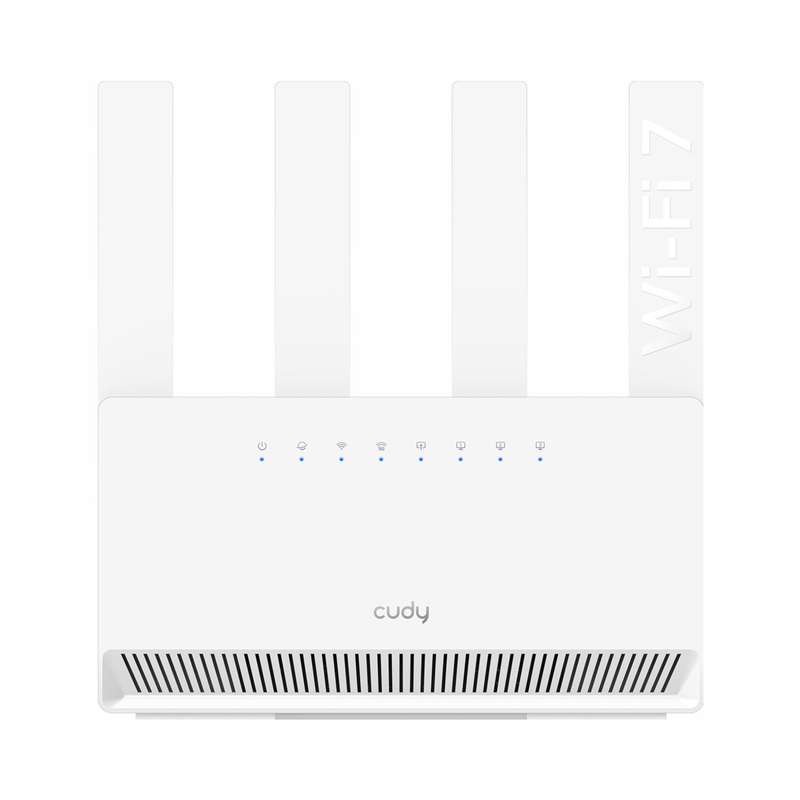

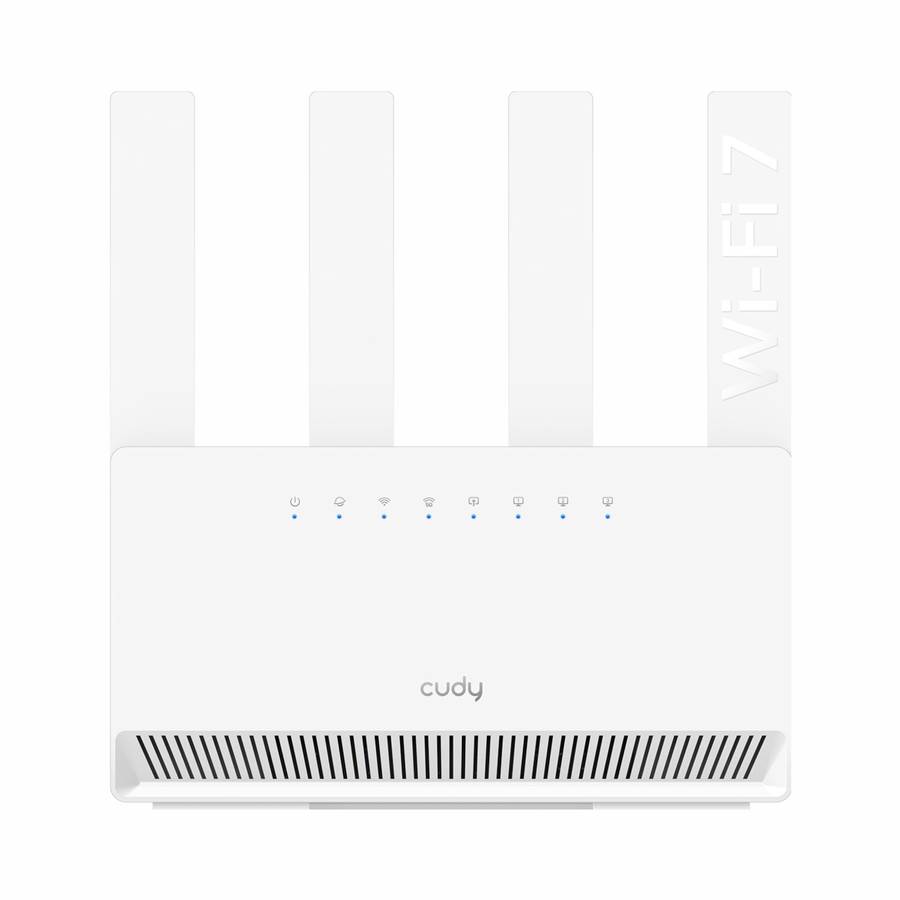

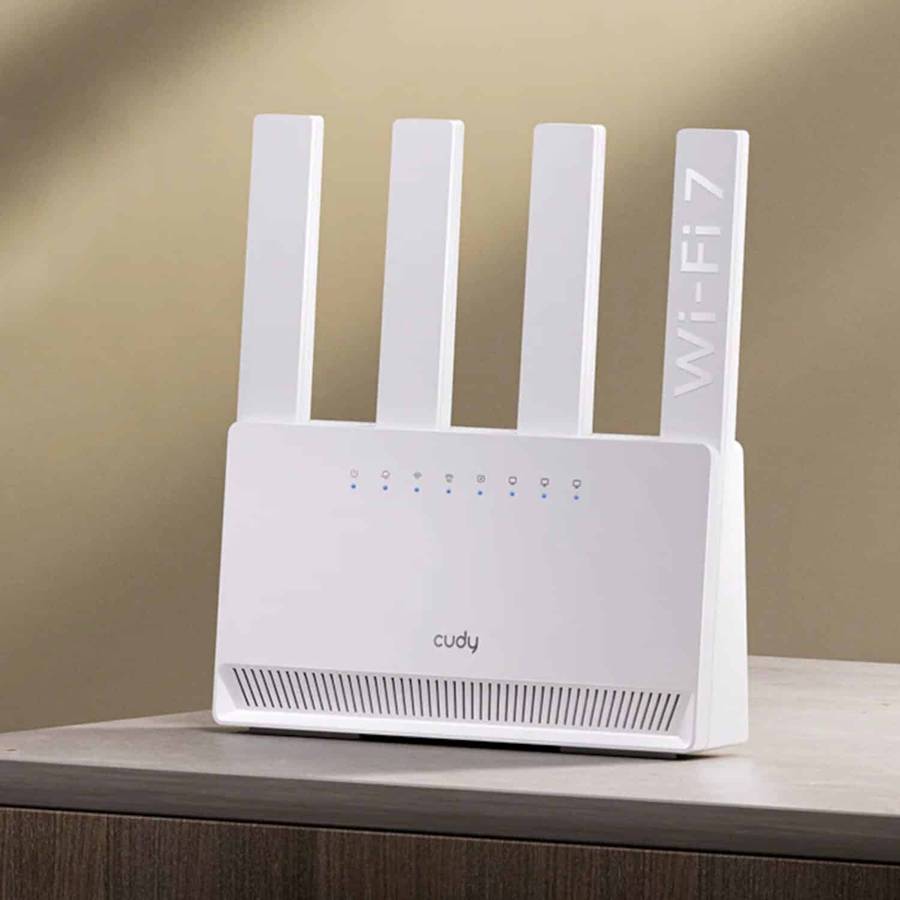

The Cudy BE3600E Wi-Fi 7 Gigabit Router (WR3600E 1.0) is engineered to deliver exceptional wireless performance, catering to the demands of modern households and small businesses. Equipped with a 2 GHz Quad-Core CPU from Broadcom, it ensures seamless data processing and efficient network management. The router's 4-Stream Dual-Band Wi-Fi 7 technology offers combined speeds of up to 3,570 Mbps2,882 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz bandproviding robust and reliable connectivity for multiple devices.
Designed for expansive coverage, the Cudy BE3600E Wi-Fi 7 Gigabit Router effectively blankets areas up to 130 m², making it suitable for various home and office layouts. Its four Gigabit Ethernet ports facilitate high-speed wired connections, ideal for devices requiring stable and rapid internet access. Supporting up to 200 connected devices, this router is well-suited for environments with numerous smart devices and heavy network traffic. Advanced features such as VPN Server and Client capabilities enhance security for remote connections, while the Cudy App and Cloud Control offer user-friendly management and customization options.
FEATURES:
VPN server and client support
Broadcom 2 GHz Quad-Core CPU
Cudy app and cloud control management
Four ports provide high-speed wired connections
4-Stream dual-band Wi-Fi 7 delivers speeds of up to 3,570 Mbps
Effective coverage up to 130 m², suitable for various home and office sizes
Supports up to 200 connected devices, accommodating numerous smart devices and heavy network traffic
SPECIFICATIONS:
CPU
Chipset: BCM6764
CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage
Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 512 MB (4 Gbit) DDR3L
Wireless
Wi-Fi Standards: Wi-Fi 7
Max Wi-Fi Modulation: 4K-QAM
Wi-Fi Efficiency:
MLO
MRU
Puncturing
OFDMA
MU-MIMO
BSS Color
Max Capacity: 512
Recommended Client Upper Limit: 200
Max Wi-Fi Channel Width: 160 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz
WPS: True
5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Fixed
5 GHz Antenna Gain Max: 6.8dBi
2.4 GHz Antenna Gain Max: 5.2dBi
FEM or PA/LNA:
5 GHz: 2× External
2.4 GHz: 2× Internal
Beamforming: True
Range Performance: Max: 220 m
Wall Performance:Two wooden/concrete walls with thickness < 10 cm
One concrete wall with thickness < 20 cm
Interfaces

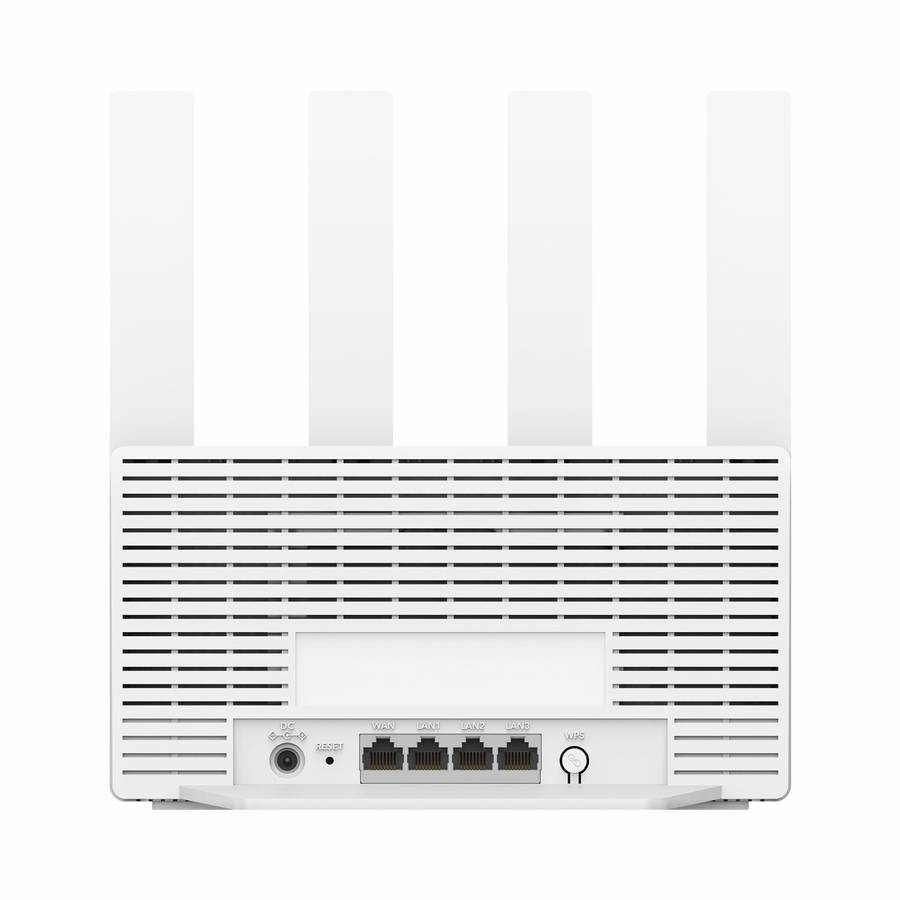

Gigabit RJ45 Ports: 4
Ethernet Notes: 1× WAN port, the rest are LAN ports
LED:
System
Internet
WAN
LAN
2.4 GHz Wi-Fi
5 GHz Wi-Fi
Physical Buttons:
WPS Button
Reset Button
Power Input: DC Jack
Power
Power Methods: DC
DC: 12V 1A
Power Adapter:Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption: 8.5W
Reliability
Operating Temperature: 0 ~ 40
Storage Temperature: -40 ~ 70
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Certifications: FCC, CE
Mechanical
Installation: Desktop
Device Dimensions: 20.9 × 4.8 × 22.04 cm
Antenna Length: 17.5 cm
Product Weight 339.8 g

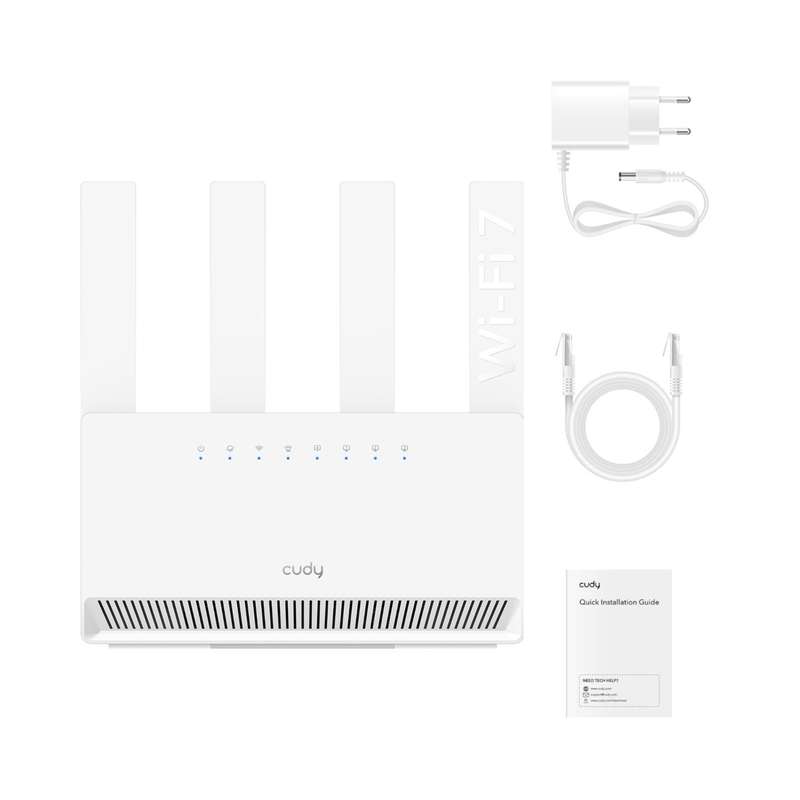

WHAT'S IN THE BOX:
Cudy BE3600E Wi-Fi 7 Gigabit Router x1
Power Adapter x1
Ethernet Cable x1
Installation Guide x1
