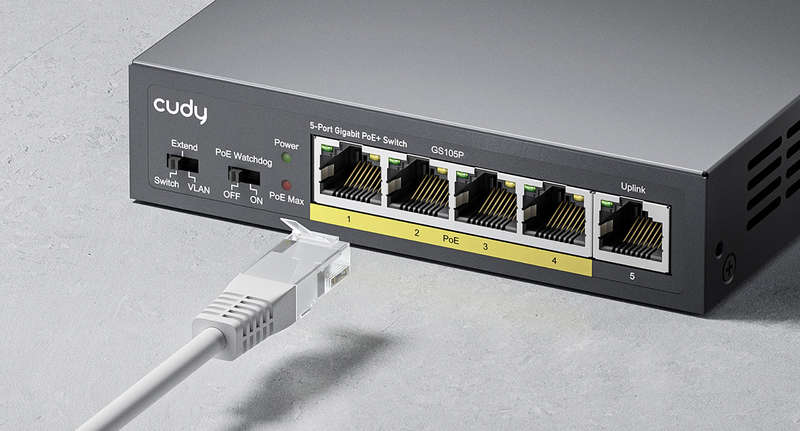

Cudy GS105P 5-port Gigabit Ethernet Unmanaged PoE Switch
A wall-mounted PoE switch with a 36W power supply and a silent cooling system, featuring Default/Extend/VLAN mode switch and Watchdog on/off switch.
IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.
Watchdog Guards the System
Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.

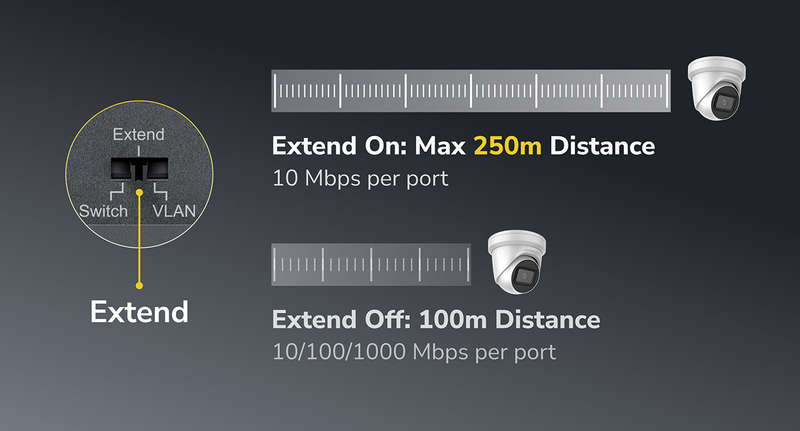

Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.
Plug and Play
Connect your router to the uplink port, client devices to PoE ports, and power on the PoE switch—then you're good to go.
Fit into a Distribution Box
Fits easily into most distribution boxes and makes cable management a breeze.
Peace of Mind with Outstanding EMC
Shield your system from surges in power grid and ESD for rock-solid reliability.
- ESD: Contact 6kV; Air 8kV
- Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Metal Casing. Wallmount Ready.
Metal casing delivers simplicity and protection for the network hub. Need to save floor spaces? The wall-mounting kit is included in the box to help you.
Features:
- 4× GbE with 802.3at/af Mode A PoE
- 1× Uplink GbE
- 36W Power Supply
- Default/VLAN/Extend Modes
- Watchdog On/Off
- PoE Max Status LED
- Desktop, Wall-Mount
- 119×85×28 mm (4.69×3.35×1.1)
Specifications:
- Speed : 1G
- Number of Ports : 5
- Number of PoE Ports : 4
- PoE Power per Port : Up to 30
- PoE Budget : Up to 63W
- Packet buffer size : 128 KB
- Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
- Jumbo Frame Support : 9,216 bytes
- MAC Table Size : 2K
- IEEE 802.1p QoS : Yes
- Max Power Consumption : 67.5W
- Operating Temperature : 0-40°C (32°F - 104°F)
- MTBF (hours) : 4,113,947 hours (469 years)
- FCC Class : Class B
