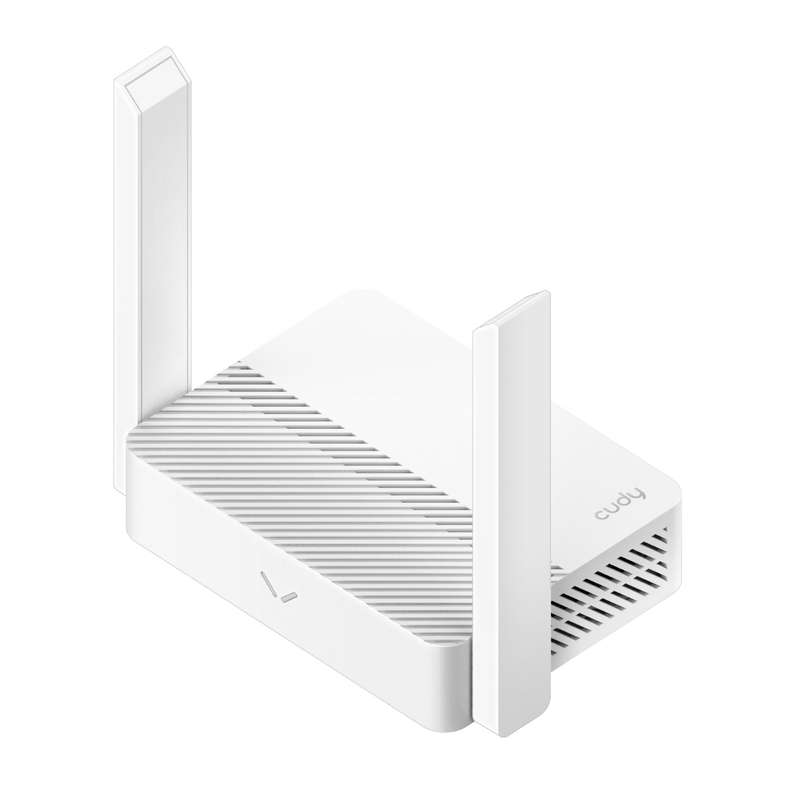

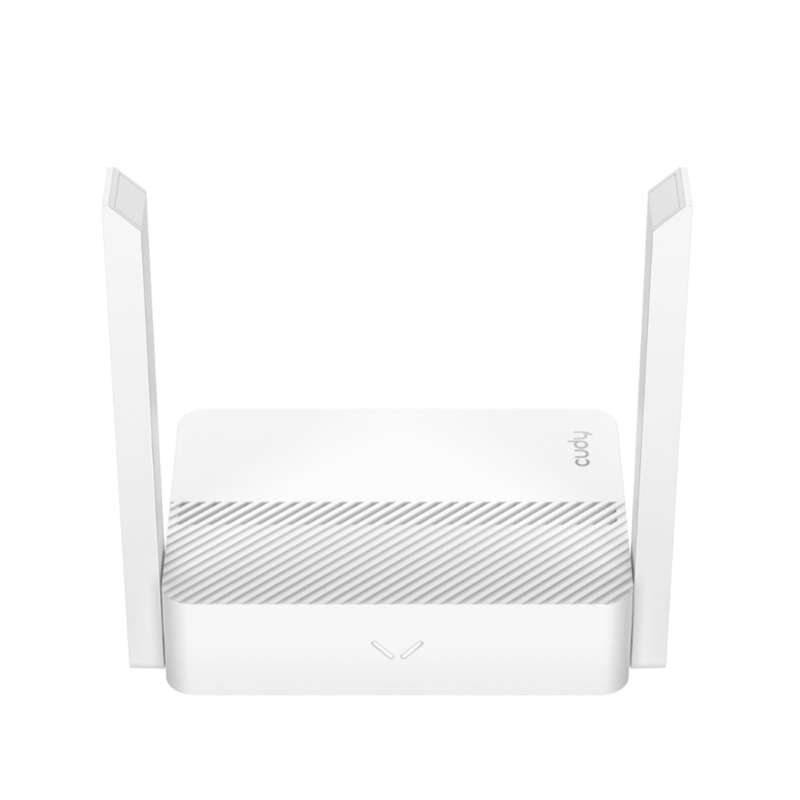

The Cudy LT300 4G LTE N300 Wi-Fi Router is a compact, plug-and-play networking solution designed for versatile scenarios including home use, office setups, surveillance systems, exhibitions, and RV travel. With a built-in Nano SIM slot and support for 4G LTE Cat. 4, this router offers uninterrupted wireless connectivity without the need for a traditional broadband contract. Its dual 10/100Mbps Ethernet ports provide reliable wired options, while 2.4GHz Wi-Fi speeds of up to 300Mbps ensure stable performance for your everyday devices.
Engineered for uninterrupted internet access, the LT300 features WAN failover, allowing it to switch between broadband, WISP, and cellular networks to maintain a stable connection. This is ideal for areas with unreliable internet or for mobile setups where consistent access is essential. Equipped with 2x2 MIMO internal antennas, the router delivers broad wireless coverage with up to 100 meters of range, making it suitable for both indoor and outdoor deployments depending on your environment.
Setting up the LT300 takes only minutes thanks to its intuitive interface and clear system status panel. Parents can regulate online activity with built-in tools like bedtime scheduling and domain blacklisting, while professionals can take advantage of robust VPN capabilities including OpenVPN, WireGuard, L2TP, and PPTP for secure and private browsing. With WPA3 encryption, your wireless communications stay protected against data breaches and unauthorised access.
Manage your network anytime, anywhere with the Cudy App, which offers both cloud-based and local control options. Monitor system activity, adjust settings, or troubleshoot remotely with ease. Designed with practical physical features like WPS and reset buttons, signal strength LEDs, and low 8W power consumption, the LT300 balances performance, security, and convenience in one streamlined unit. Certified by FCC and CE, it's built for reliability across Europe, the Middle East, and Africa.
FEATURES:
- 4G LTE and 2x MIMO Fast Wi-Fi
- 300Mbps Wi-Fi support
- WAN Failover for high redundancy
- 100+ Carriers making it highly compatible
- VPN server and client support
- Cudy App Cloud Control
- Nano SIM Slot x1
SPECIFICATIONS:
- Chipset: MT7628
- CPU Details: 580MHz Single-Core, MIPS24KEC
- Flash/ROM: 8 MB (64 Mbit ) NOR
- DDR/RAM: 64 MB (512 Mbit) DDR2
- Cellular Standards: 4G Cat. 4
- Cellular Antennas: 2x Fixed
- SIM Options: 1x Nano SIM Slot
- Suitable Region: Europe, Middle East, Africa
- Max DL Speed: 150Mbps (LTE-FDD), 130Mbps (LTE-TDD)
- Max UL Speed: 50Mbps (LTE-FDD), 30Mbps (LTE-TDD)
- Advanced: DL 2x2 MIMO
- Cellular Bands:
- LTE-FDD: B1/3/5/7/8/20/28
- LTE-TDD: B38/40/41
- WCDMA: B1/5/8
- 2.4GHz Wi-Fi Speed: 300Mbps
- 2.4GHz Wi-Fi Streams: 2T2R (2x2 MIMO)
- Wi-Fi Antennas: 2x Internal
- 2.4GHz Antenna Gain Max: 2.83 dBi
- FEM or PA/LNA: 2.4GHz: 2x Internal
- Range Performance:
- Max: 100 m (328 ft)
- Indoor Wi-Fi range varies depending on the layout and wall materials.
- See the Wall Performance spec for placement suggestions.
- Wall Performance:
- One wooden walls with thickness < 10 cm (4'')
- One concrete wall with thickness < 10 cm (4'')
- Physical Buttons: WPS Button | Reset Button
- 10/100Mbps RJ45 Ports: 2
- Ethernet Notes: One port supports WAN/LAN configuration, and the rest are LAN ports
- LED: System | Cellular Signal Strength
- Power Input: DC Jack
- Power Methods: DC
- DC: 12V 1A
- Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 12V 1A DC
- Max Power Consumption: 8W
- Idle Power Consumption: 3W
- EMS: ESD: Contact: 4kV; Air: 8kV
- Environment:
- Operating Temperature: 0 degC ~ 40 degC (32 degF ~104 degF)
- Storage Temperature: -40 degC ~ 70 degC (-40 degF ~ 158 degF)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
- Certifications: FCC, CE
- Product Dimensions: 11.8 x 8 x 2.7 cm
- Product Weight: 172.2g

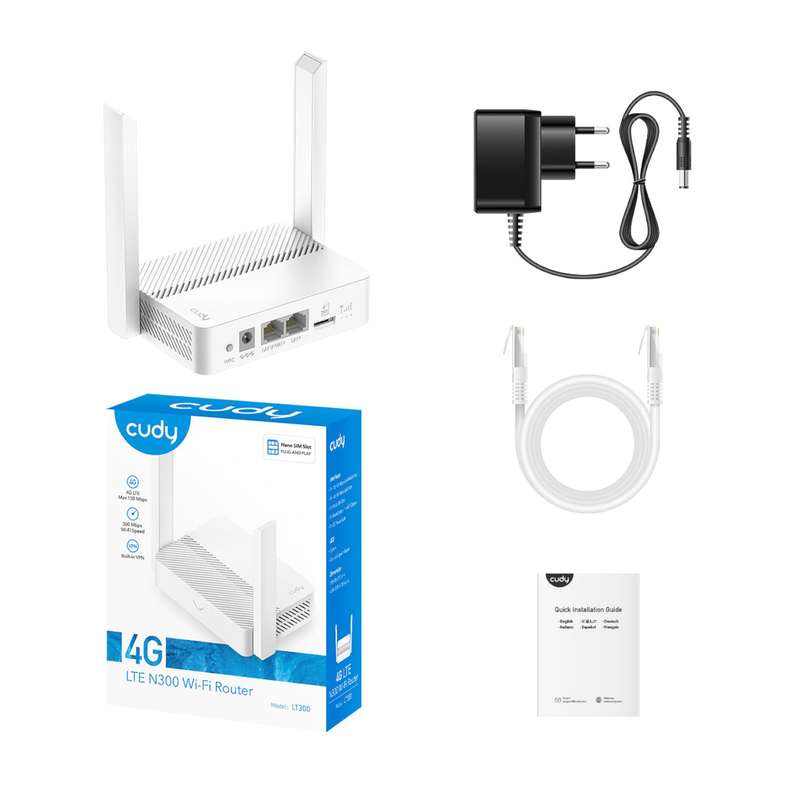

WHAT'S IN THE BOX:
- Cudy LT300 4G LTE N300 Wi-Fi Router - White x1
- Power Adapter x1
- Ethernet Cable x1
- Installation Guide x1
