FEATURES:
Up to 150Mbps / 50Mbps LTE speed
Up to 300Mbps Wi-Fi speed
Support PPTP/L2TP VPN client for security connections
Support 20+ DDNS for remote management
USB port for easy storage and sharing
4G watchdog can automatically redial when disconnected
Wi-Fi schedule supports configuration of available Wi-Fi time
Flexible WAN/LAN port for dual connectivity
SPECIFICATIONS:
Chipset: MT7628
CPU Details: 580MHz Single-Core, MIPS24KEC
Flash/ROM: 8 MB (64 Mbit ) NOR
DDR/RAM: 64 MB (512 Mbit) DDR2
Cellular Standards: 4G Cat. 4
Cellular Antennas: 2× Fixed
Detachable Cellular Antennas Connector: SMA Female
SIM Options: 1× Nano SIM Slot
Suitable Region: Europe, Middle East, Africa
Max DL Speed: 150Mbps (LTE-FDD), 130Mbps (LTE-TDD)
Max UL Speed: 50Mbps (LTE-FDD), 30Mbps (LTE-TDD)
Advanced: DL 2×2 MIMO
Cellular Bands:
LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
2.4 GHz Wi-Fi Speed: 300Mbps
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Internal
Beamforming: True
Range Performance:
Max: 130 m (427 ft)
Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance:
One wooden walls with thickness < 10 cm (4)
One concrete wall with thickness < 10 cm (4)
Physical Buttons: Reset Button

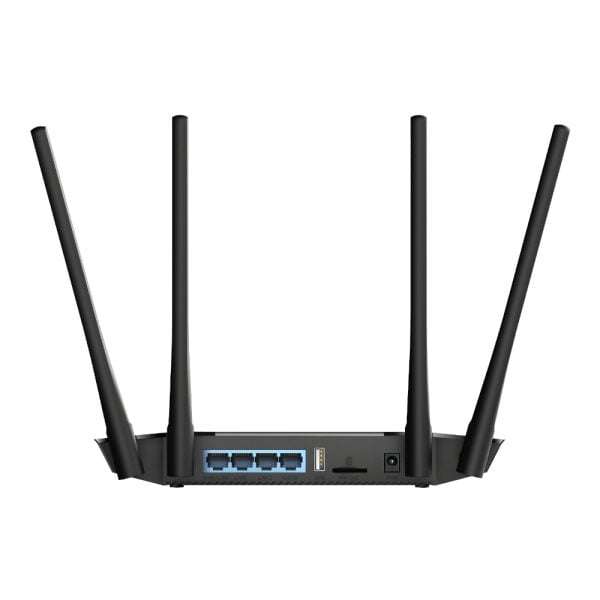

10/100Mbps RJ45 Ports: 4
Ethernet Notes: One port supports WAN/LAN configuration, and the rest are LAN ports
USB Ports: 1× USB 2.0
LED: System
Power Input: DC Jack
Power Methods: DC
DC: 12V 1A
Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC | Output: 12V 1A DC
ESD Contact Protection: 4kV
ESD Air Protection: 8kV
Operating Temperature: 0 ~ 40 (32 ~104 )
Storage Temperature: -40 ~ 70 (-40 ~ 158 )
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Product Dimensions: 22.9 x 12.3 x 3.2 cm

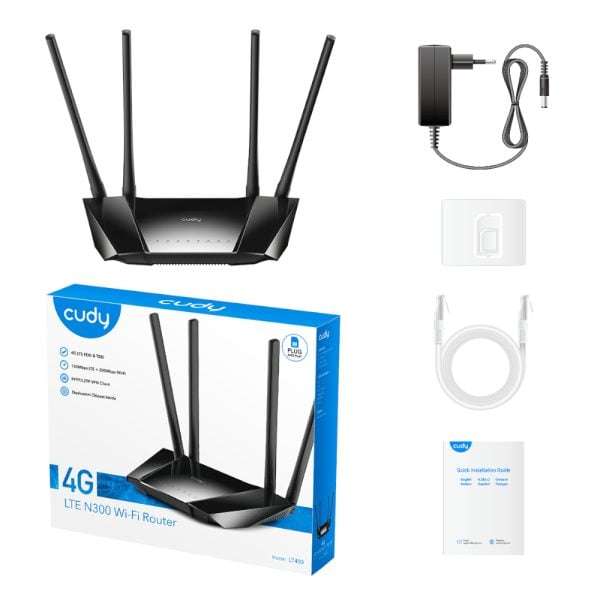

WHATS IN THE BOX:
Cudy LT400 4G LTE N300 300Mbps Wi-Fi Router Black x1
Power Adapter x1
RJ45 Ethernet Cable x1
Quick Installation Guide x1
