The Cudy LT400 4G LTE N300 300Mbps Wi-Fi Router is a versatile outdoor networking solution, designed to provide reliable internet connectivity even in challenging environments. With 4G Cat. 4 support, it delivers download speeds of up to 150 Mbps and upload speeds of 50 Mbps, ideal for tasks like web browsing, video streaming, surveillance, and POS services. The N300 Wi-Fi ensures a strong and stable network, supported by Beamforming technology and two built-in antennas for enhanced coverage. Its IP65-rated weather-resistant casing makes it durable and suitable for pole or wall mounting in outdoor settings.
Setting up the LT400 is as simple as inserting a SIM card and connecting it to the included PoE adapter, allowing for network deployment up to 100 meters from the adapter. For larger areas, you can expand coverage by pairing the LT400 with additional Cudy access points, enabling seamless Wi-Fi connectivity across cafes, homes, or offices. The router also features flexible WAN/LAN port configurations, a USB port for storage and sharing, and SMA connectors for customizable antenna upgrades, providing adaptability to meet your networking needs.
Built with convenience and security in mind, the LT400 supports PPTP/L2TP VPN clients for secure connections and Wi-Fi scheduling for efficient management. Its 4G watchdog feature ensures automatic reconnection in case of network drops, maintaining uninterrupted service. With its robust design, user-friendly setup, and reliable performance, the Cudy LT400 is an excellent choice for a high-performance network.
FEATURES:
Up to 150Mbps / 50Mbps LTE speed
Up to 300Mbps Wi-Fi speed
Support PPTP/L2TP VPN client for security connections
Support 20+ DDNS for remote management
USB port for easy storage and sharing
4G watchdog can automatically redial when disconnected
Wi-Fi schedule supports configuration of available Wi-Fi time
Flexible WAN/LAN port for dual connectivity
SPECIFICATIONS:
Chipset: MT7628
CPU Details: 580MHz Single-Core, MIPS24KEC
Flash/ROM: 8 MB (64 Mbit ) NOR
DDR/RAM: 64 MB (512 Mbit) DDR2
Cellular Standards: 4G Cat. 4
Cellular Antennas: 2× Fixed
Detachable Cellular Antennas Connector: SMA Female
SIM Options: 1× Nano SIM Slot
Suitable Region: Europe, Middle East, Africa
Max DL Speed: 150Mbps (LTE-FDD), 130Mbps (LTE-TDD)
Max UL Speed: 50Mbps (LTE-FDD), 30Mbps (LTE-TDD)
Advanced: DL 2×2 MIMO
Cellular Bands:
LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
2.4 GHz Wi-Fi Speed: 300Mbps
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Internal
Beamforming: True
Range Performance:
Max: 130 m (427 ft)
Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance:
One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 10 cm (4'')
Physical Buttons: Reset Button
10/100Mbps RJ45 Ports: 4
Ethernet Notes: One port supports WAN/LAN configuration, and the rest are LAN ports
USB Ports: 1× USB 2.0
LED: System
Power Input: DC Jack
Power Methods: DC
DC: 12V 1A
Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC | Output: 12V 1A DC
ESD Contact Protection: 4kV
ESD Air Protection: 8kV
Operating Temperature: 0 ~ 40 (32 ~104 )
Storage Temperature: -40 ~ 70 (-40 ~ 158 )
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Product Dimensions: 22.9 x 12.3 x 3.2 cm

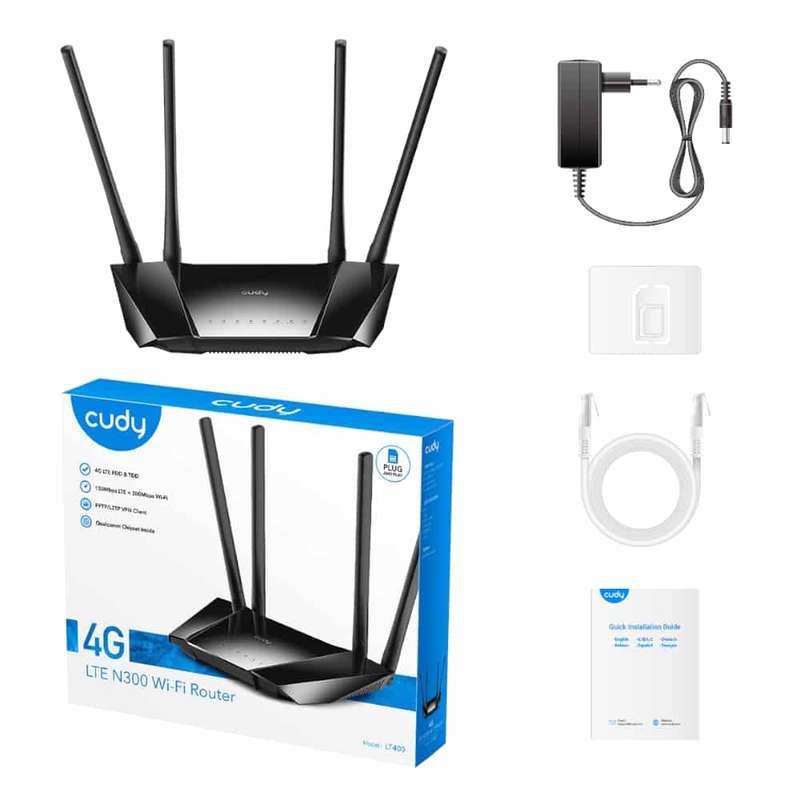

WHAT'S IN THE BOX:
Cudy LT400 4G LTE N300 300Mbps Wi-Fi Router - Black x1
Power Adapter x1
RJ45 Ethernet Cable x1
Quick Installation Guide x1
