The Cudy R700 Gigabit Multi-WAN VPN Router brings next-generation wireless performance to modern homes and offices, delivering seamless connectivity and extended coverage with industry-leading Wi-Fi 6 technology. Designed to eliminate dead zones and enable high-speed wireless expansion, the R700 combines advanced dual-band speeds with smart roaming features, ensuring uninterrupted streaming, conferencing, and gaming across your entire space.
With combined speeds of up to 3000 Mbps (2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz), the R700 ensures high-efficiency data delivery across multiple connected devices. Four external high-gain antennas and a robust dual-core processor enhance signal stability and penetration, even through walls or between floors. Whether you're working remotely, managing smart home systems, or supporting high-definition streaming, the Cudy R700 delivers consistent, high-speed performance.
EasyMesh compatibility allows the R700 to integrate effortlessly with other mesh-enabled routers and extenders, forming a unified, scalable network with seamless roaming capabilities. Smart LED signal indicators simplify placement for optimal coverage, while the device's three-in-one functionality operating as a repeater, access point, or Gigabit bridge ensures flexible deployment in diverse network environments.
Equipped with a full Gigabit Ethernet port, the R700 is ideal for bandwidth-heavy wired devices, including smart TVs, game consoles, and desktop PCs. Enhanced security protocols, including WPA3-SAE, provide advanced encryption and improved network protection for modern smart homes and small businesses.
Compact, powerful, and future-ready, the Cudy R700 redefines what a range extender can do providing the speed, control, and flexibility to match today's digital lifestyles.
FEATURES:
AX3000 dual-band Wi-Fi 6 (2402 Mbps + 574 Mbps)
EasyMesh supports seamless mesh networking
Dual-core CPU for stable multi-device performance
Gigabit Ethernet port for high-speed wired access
Smart signal indicator for optimal placement
Four high-gain external antennas for wide coverage
Three-in-one operation: Repeater, AP, Gigabit Bridge
Advanced WPA3 encryption for secure connectivity
SPECIFICATIONS:
CPU
CPU Details: 880 MHz Dual-Core
Memory/Storage
Flash/ROM: 16 MB (128 Mbit) NOR
DDR/RAM: 128 MB (1 Gbit) DDR3
Interfaces

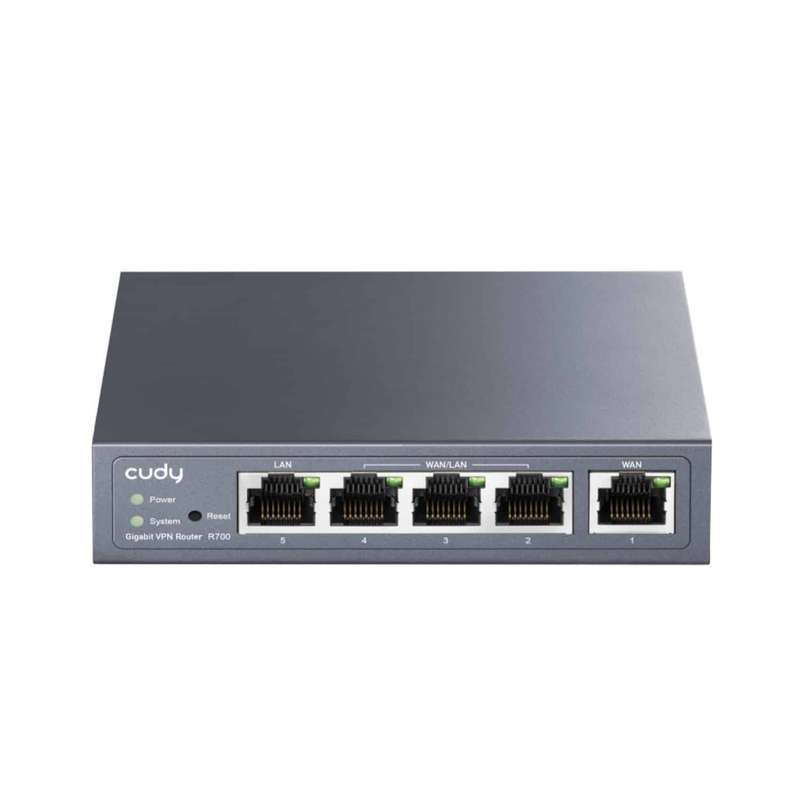

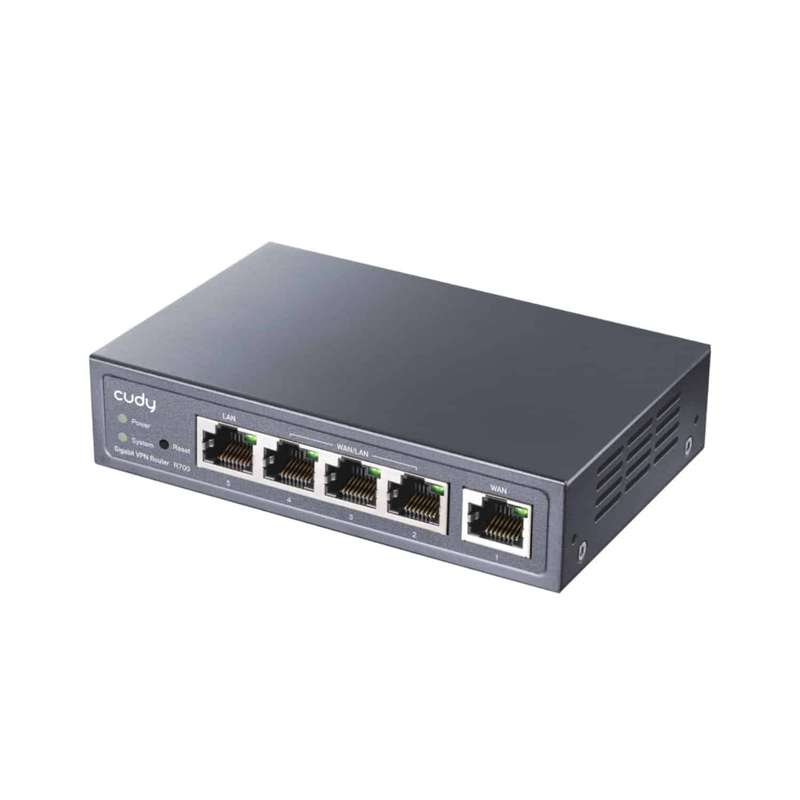

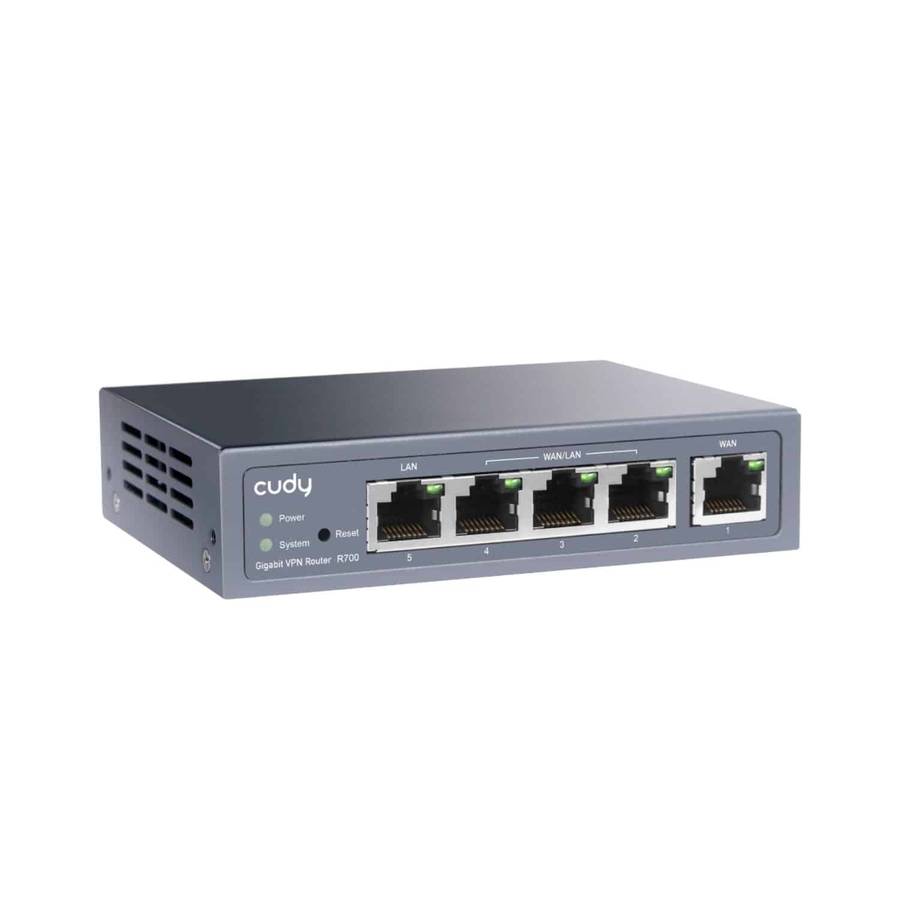

Gigabit RJ45 Ports: 5
Ethernet Notes: 1× WAN Port, 3× WAN/LAN Ports, 1× LAN Port
LED:
Power
System
Speed/Link/ACT of Ethernet Port
Physical Buttons: Reset Button

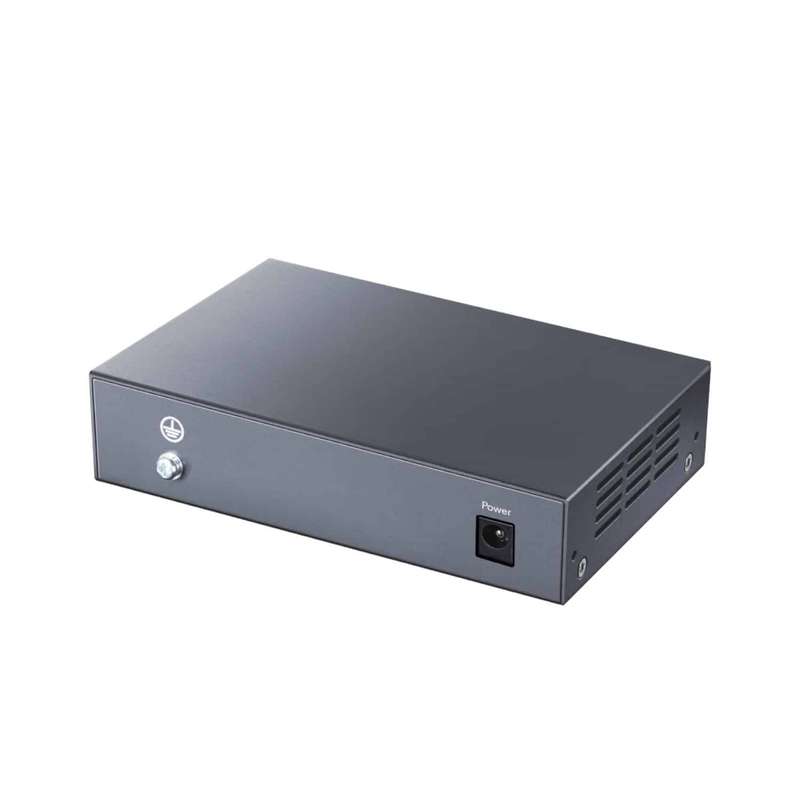

Power Input: DC Jack
Power
Power Methods: DC
DC: 12V 1A
Power Adapter:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Reliability
Environment:
Operating Temperature: 0 ~ 40 (32 ~104 )
Storage Temperature: -40 ~ 70 (-40 ~ 158 )
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Grounding Methods: Grounding Point
Certifications: FCC, CE
Mechanical
Installation:
Desktop
Wall-mount
Casing Material: Metal
Dimension: 1.19×8.5×2.8 cm
Product Weight: 273 g

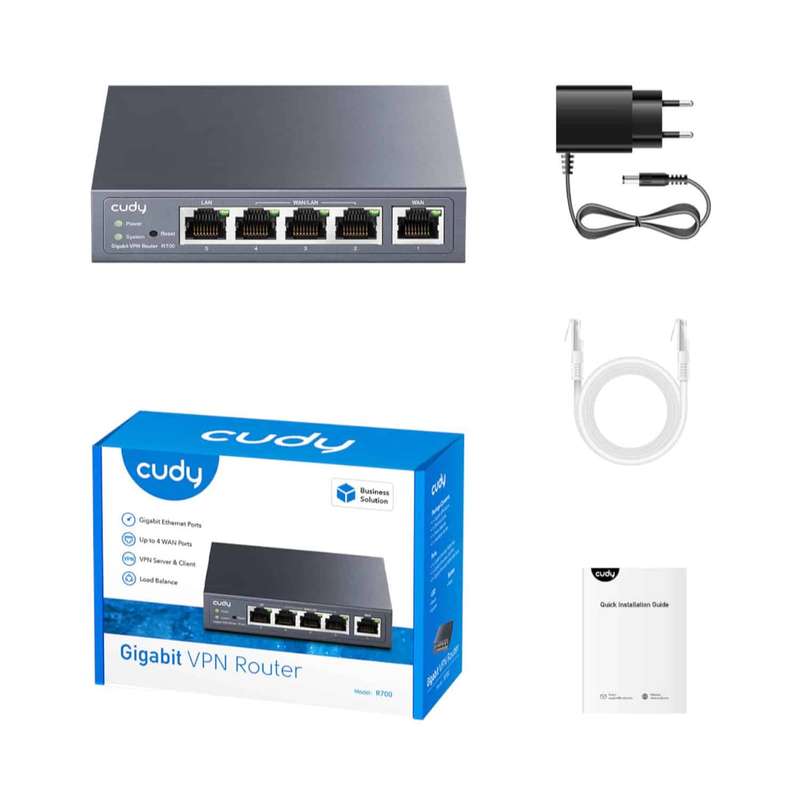

WHAT'S IN THE BOX:
Cudy R700 Gigabit Multi-WAN VPN Router x1
Power Adapter x1
Ethernet Cable x1
Installation Guide x1
