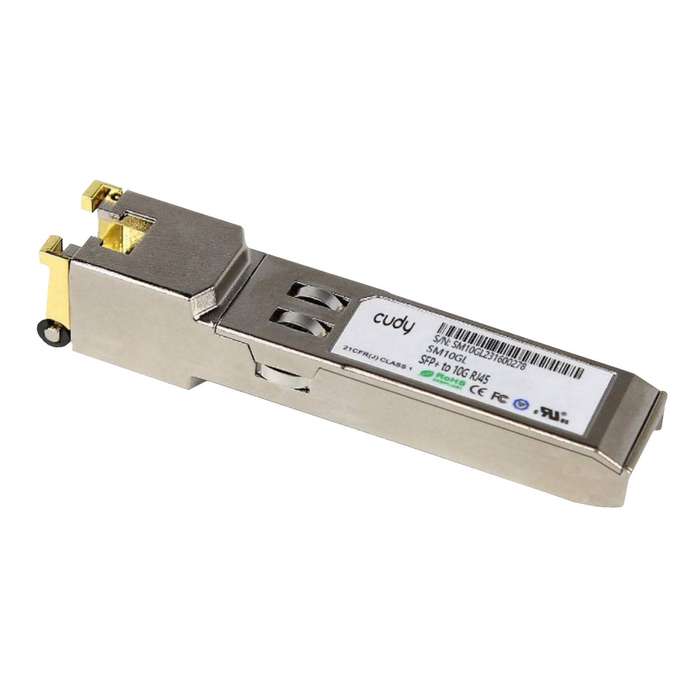

The Cudy SM10GL SFP+ to 10G RJ45 Ethernet Module delivers blazing-fast, reliable network performance for data centers, enterprise networks, and high-demand work environments. Designed in compliance with the SFP Multi-Source Agreement (MSA), this transceiver supports 10Gbase-T, 5Gbase-T, 2.5Gbase-T, and 1000base-T standards as per IEEE 802.3, ensuring broad compatibility with a wide range of networking equipment. Whether you're upgrading an existing system or expanding your network capabilities, the SM10GL is built for seamless integration and maximum performance.
This hot-pluggable SFP+ transceiver features a compact RJ45 connector assembly, making it easy to install without system downtime. Supporting 10 Gigabit Ethernet over Cat 6a cabling, it enables cost-effective copper connectivity without compromising on speed. The single +3.3V power supply ensures efficient energy consumption, while compliance with RoHS standards guarantees an environmentally friendly, lead-free build.
Built to handle high-performance networking demands, the Cudy SM10GL offers a data rate of up to 10Gbps with optimised impedance matching for stable transmission. With an operating temperature range of 0°C to +60°C, it is suitable for various deployment scenarios, from enterprise racks to high-traffic server rooms. The robust electrical design includes precise signal integrity control for minimal data loss, ensuring smooth and consistent connectivity even under heavy loads.
Whether you're running 10G backbone links, high-speed workstations, or NAS systems, the Cudy SM10GL SFP+ to RJ45 Module is the perfect solution for flexible and scalable network upgrades. Offering support for multiple Ethernet speeds, tool-free installation, and outstanding thermal stability, it meets the needs of modern IT infrastructures while providing a cost-efficient alternative to fibre solutions.
FEATURES:
- Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T on line port
- Support 10Gbase-R on host port
- Hot-pluggable SFP footprint
- Compact RJ-45 connector assembly
- RoHS compliant and lead-free
- Single +3.3V power supply
- 10 Gigabit Ethernet over Cat 6a cable
- Ambient Operating temperature_ 0°C to +60°C
SPECIFICATIONS:
- Connector: RJ45
- Data Rate_ 10Gbps
- Form Factor_ SFP
- +3.3 V olt Electrical Power Interface_
- Supply Current_ 800mA(Typ)/ 1000mA(Max)
- Input Voltage_ 3.13V(Min)/ 3.3V(Typ)/ 3.47V(Max)
- Maximum Voltage_ 4V
- Low-Speed Signals, Electronic Characteristics_
- SFP Output LOW (Min/Max): 0/ 0.5V
- SFP Output HIGH (Min/Max): host_Vcc -0.5/ host_Vcc + 0.3V
- SFP Input LOW (Min/Max): 0/ 0.8V
- SFP Input HIGH (Min/Max): 2/ Vcc + 0.3V
- High-Speed Electrical Interface, Transmission Line-SFP:
- Line Frequency_ 125MHz
- Tx Output Impedance_ 100 Ohm
- Rx Input Impedance_ 100 Ohm
- High-Speed Electrical Interface, Host-SFP:
- Single ended data input swing (Min/Max): 250/1200mV
- Single ended data output swing (Min/Max): 350/800mV
- Rise/Fall Time_ 185 psec
- Tx Input Impedance_ 50 Ohm
- Rx Output Impedance_ 50 Ohm
- Operating Temperature (Min/Max): 0/60°C
- Storage Temperature (Min/Max): -40/85°C
- Serial Bus Timing, Requirements_
- I 2C Clock Rate (Min/Max): 0/ 200 000Hz
- Product Dimensions_ 6.8 x 1.5 x 1.4 cm
WHAT'S IN THE BOX_
- Cudy SM10GL SFP+ to 10G RJ45 Ethernet Module x1
Lenght: 0
Width: 0
Height: 0
Colour: Grey
Warranty: 12 Months
