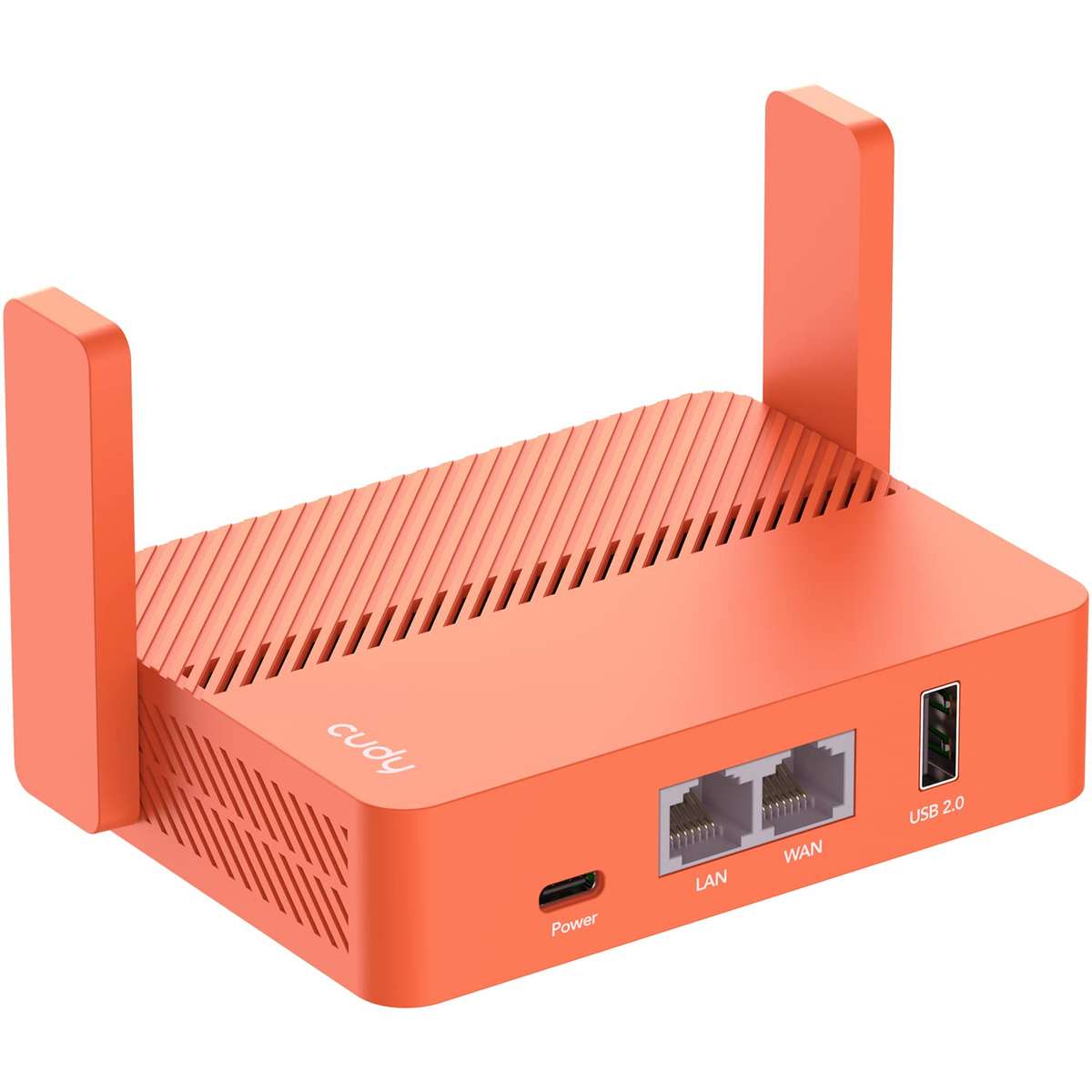

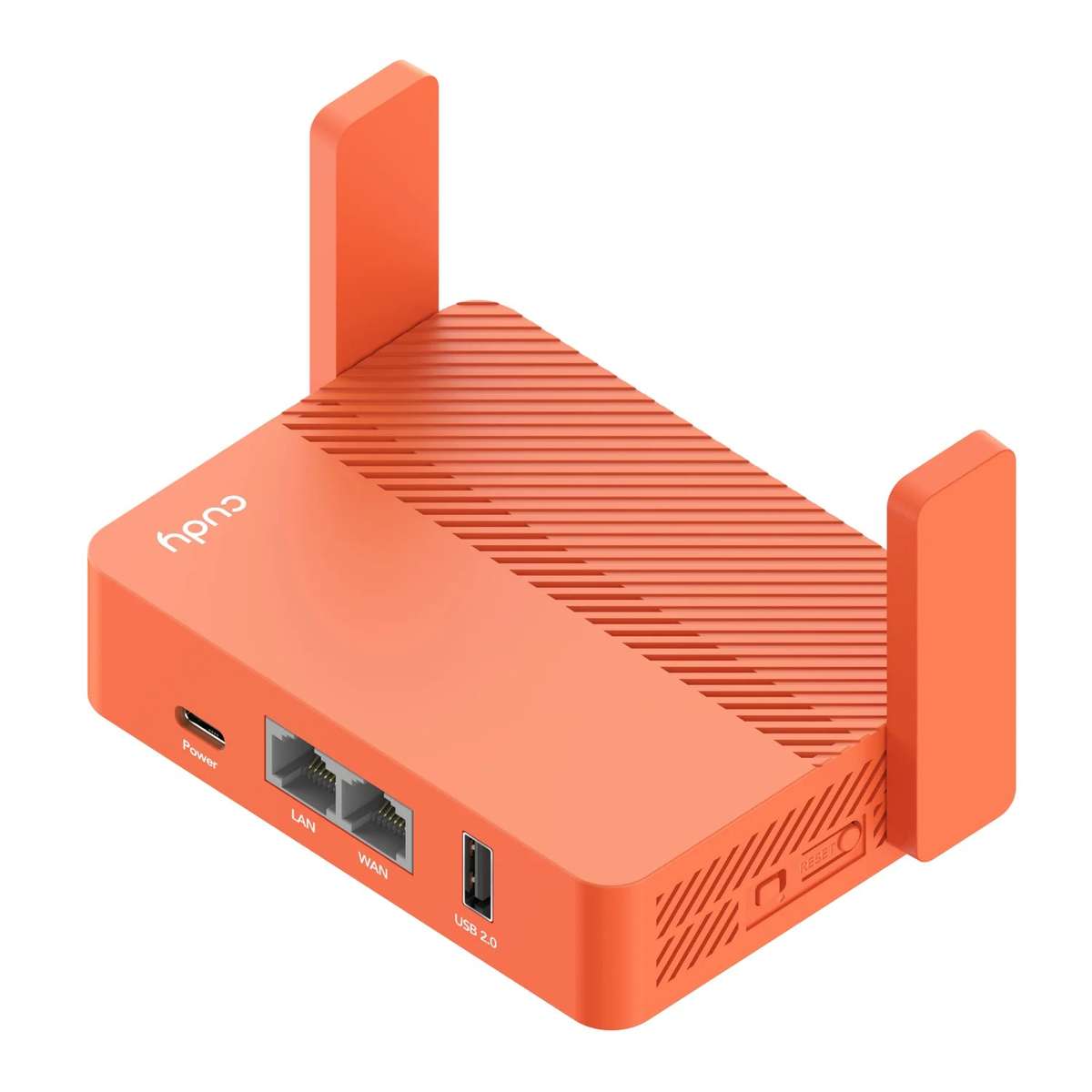

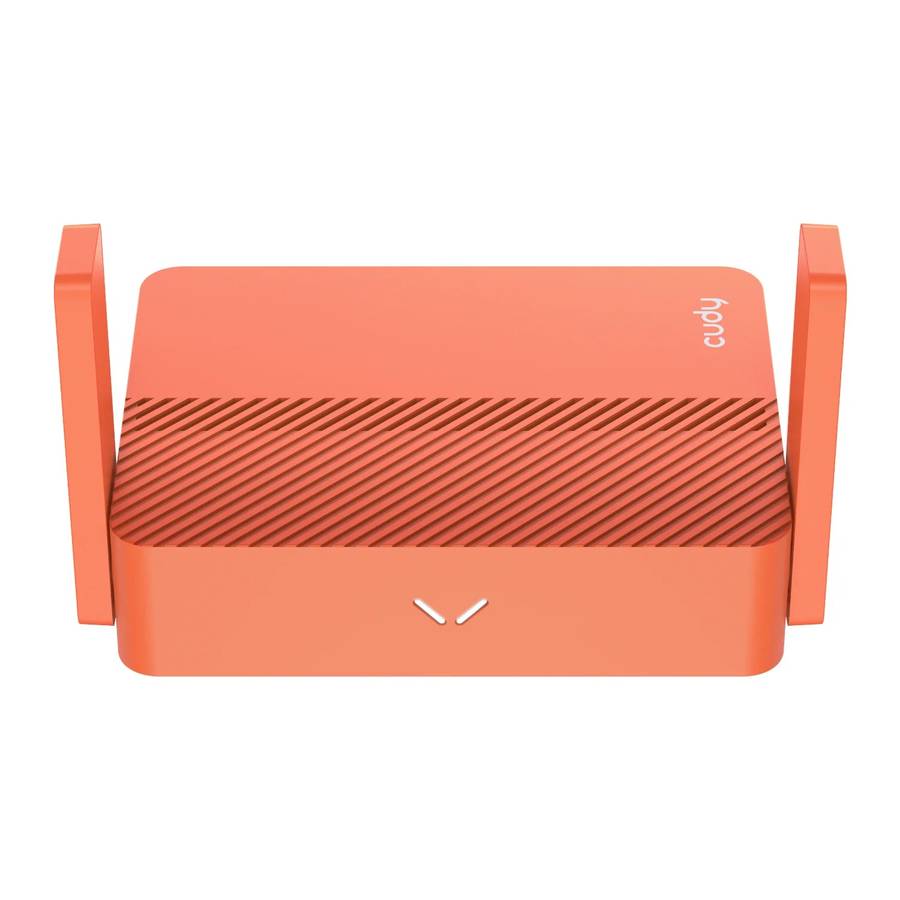

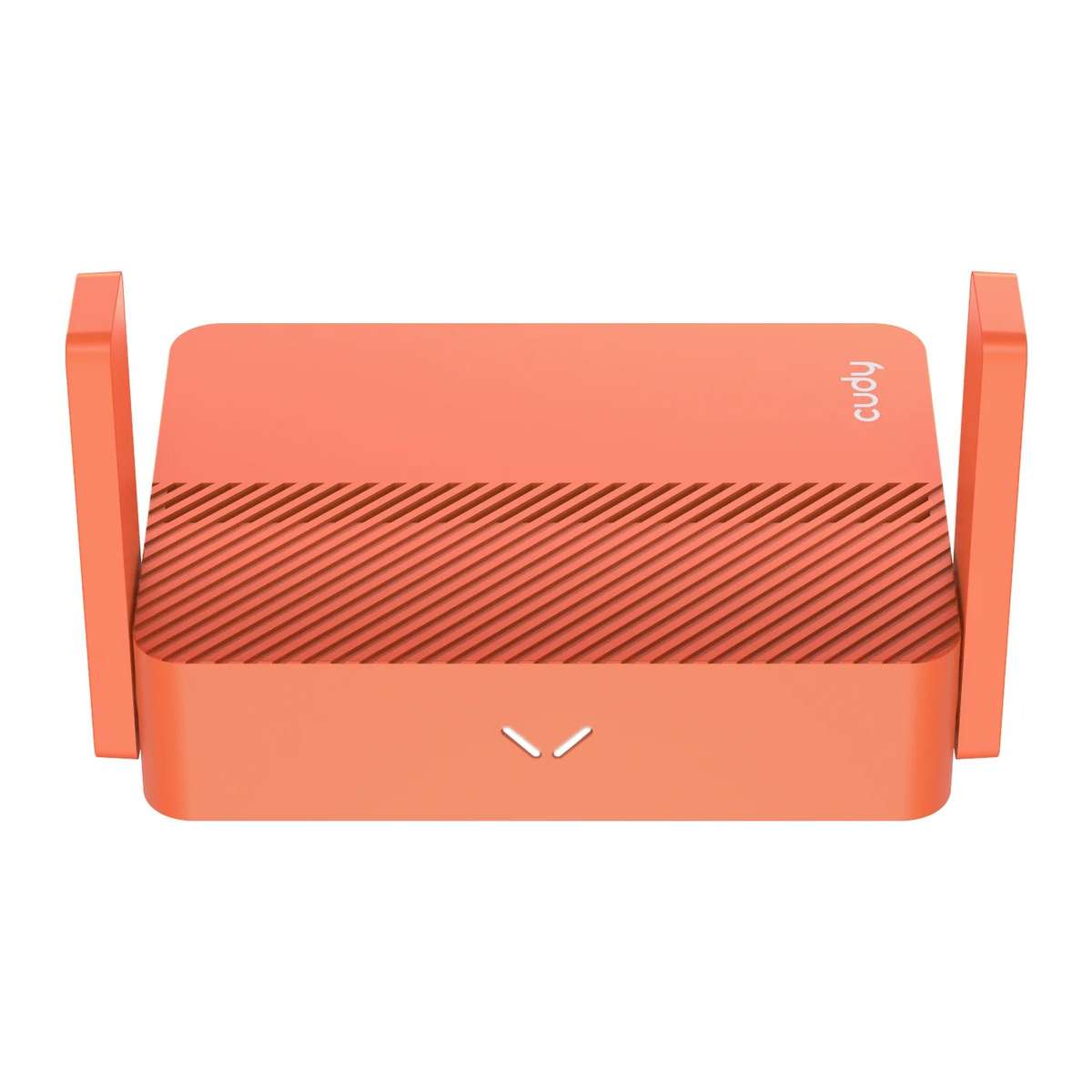

The Cudy AC1200 Wireless Mini VPN Router (TR1200) is a compact and versatile router designed to deliver high-speed Wi-Fi connectivity for home and small office networks. Supporting dual-band wireless speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, it provides stable and reliable internet coverage across a range of devices. Its built-in VPN capabilities ensure secure connections for remote work, online privacy, and safe data transmission.
Equipped with two fixed antennas, beamforming technology, and a small, portable design, the AC1200 router ensures optimal signal direction and coverage up to 150 meters in open-space conditions. USB-C power input and low energy consumption make it convenient for desktop setups or travel, while easy-to-use interfaces, including a WAN/LAN port and USB-A 2.0 port, support versatile networking options.
Key Features & Benefits
Dual-Band Wi-Fi 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) for high-speed connectivity
VPN Support Secure remote access and data protection
Beamforming Technology Focused signal for improved coverage and performance
Compact & Portable Desktop-friendly design with low power consumption
USB-C Powered Convenient and efficient power input
Reliable Dual Antennas Stable connection for multiple devices
Ideal Uses
Home and small office networking
Secure VPN connections for remote work
Streaming, online gaming, and web browsing
Portable Wi-Fi solution for travel or temporary setups
Specifications
Condition: item, fully tested and ready to use
Manufacturer: Cudy
Model: TR1200
Product Type: Wireless Mini VPN Router
Processor & Memory
CPU: 580 MHz Single-Core, MIPS24KEC
Flash/ROM: 16 MB (128 Mbit) NOR
RAM: 128 MB DDR3
Wireless
5 GHz Speed: 867 Mbps (2T2R, 2×2 MIMO)
2.4 GHz Speed: 300 Mbps (2T2R, 2×2 MIMO)
Antennas: 2 × Fixed
Beamforming: True
Max Range: 150 m (492 ft) in open space
Interfaces & Ports
RJ45 Ethernet: 1 × WAN, 1 × LAN (10/100 Mbps)
USB: 1 × USB-A 2.0
System LED Indicators
Reset Button & Configurable DIP Switch
Power
Input: 5V 2A (USB-C)
Max Power Consumption: 8W
Idle Power Consumption: 3W
Mechanical & Environmental
Dimensions: 118 × 80 × 27.5 mm (4.65 × 3.15 × 1.08 in)
Weight: 101.8 g (3.59 oz.)
Operating Temperature: 0 ~ 40
Storage Temperature: -40 ~ 70
Humidity: 10% ~ 90% non-condensing
Certifications
FCC, CE
Warranty
3 Month Warranty
What's in the Box
Cudy AC1200 Wireless Mini VPN Router (TR1200)
