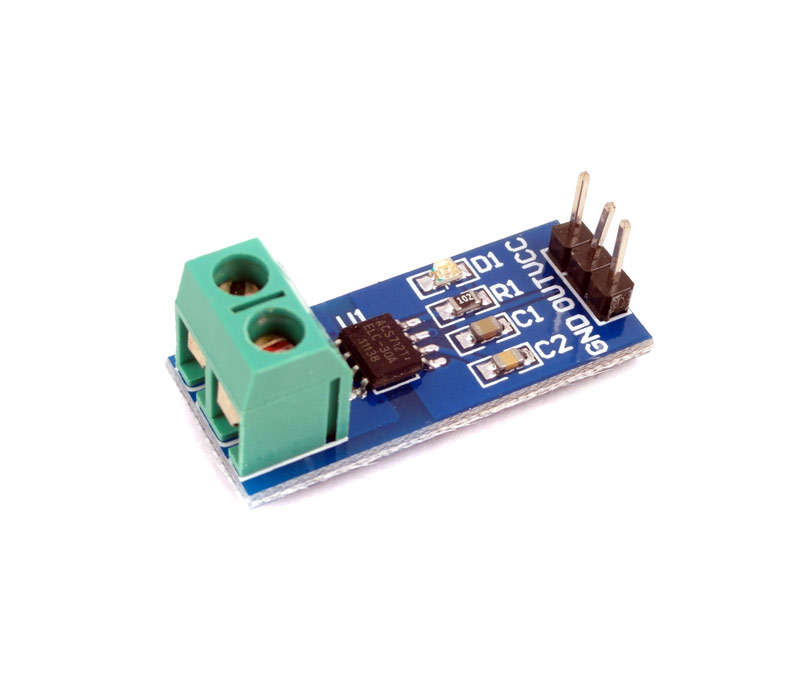

Current Sensor For Arduino or Raspberry PiACS712 30A

Description

Accurate sensor to measure AC/DC current up to 30A. The sensor can even measure high AC mains current and is still isolated from the measuring part due to integrated hall sensor. The board operates on 5V.

ACS712 current sensor operates from 5V and outputs analog voltage proportional to current measured on the sensing terminals. You can simple use a microcontroller ADC to read the values.

Sensing terminal can even measure current for loads operating at high voltages like 230V AC mains while output sensed voltage is isolated from measuring part.

Features

• 100 mV/A output sensitivity
• 5.0 V, single supply operation
• Output voltage proportional to AC or DC currents
• Factory-trimmed for accuracy
• Extremely stable output offset voltage
• Nearly zero magnetic hysteresis
• Ratiometric output from supply voltage
• Low-noise analog signal path
• Device bandwidth is set via the new FILTER pin
• 5 µs output rise time in response to step input current
• 80 kHz bandwidth
• Total output error 1.5% at TA = 25°C
• Small footprint, low-profile SOIC8 package
• 1.2 mΩ internal conductor resistance
• 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
