Curvomark Level Pro Mag Contour #8 14777

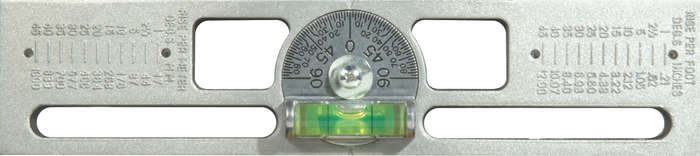

PRO - MAG LEVEL No 8

A lightweight easy to use tool for determining angles, the Pro-MagLevel has two cast-in

25-pound pull magnets that hold securely to any steel surface

The unit has a 360° degree adjustable DSL with two 90° degreequadrants graduated in 21/2-degree increments

Also cast in are tables used to convert degree-of-angle torise-in-inches-per-foot or millimeters-per-meter.

A groove on the bottom edge permits use on a small pipe

The Pro-Mag Level is 225 mm long, 50 mm high and 20 mm thick

It is made from cast aluminium

The unit is ideal for pipe fitter, welder, jig builder or anyone whohas to determine angles or do setup work

Code

CNT8
