CURVOMARK MARKER CONTOUR STD #1 CNT1

CONTOUR MARKER STANDARD

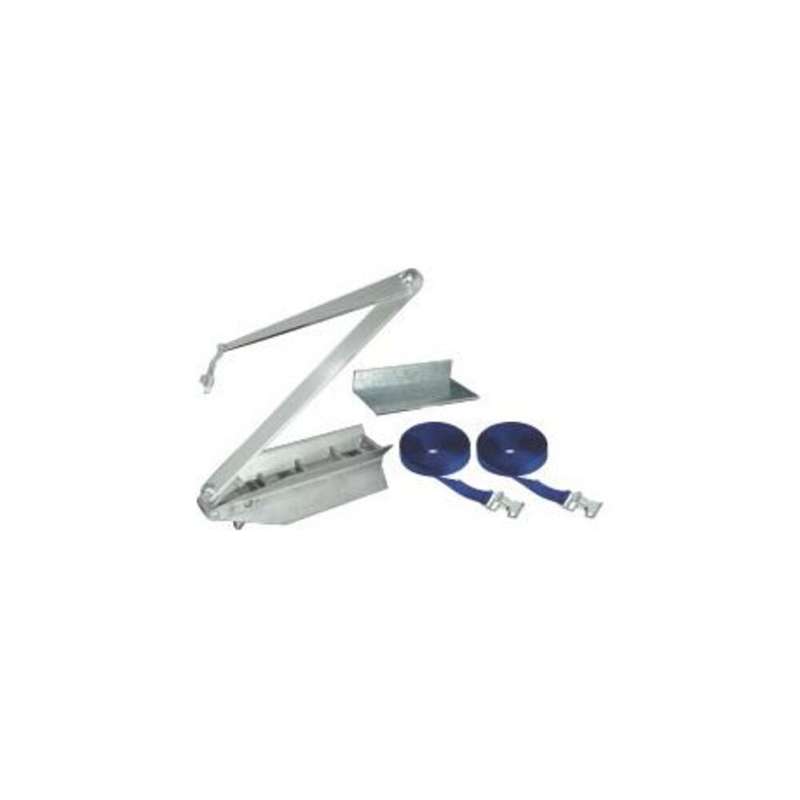

It consists of an X-shaped frame, calibrated protractor, and a triple-jointed marking arm and holder

The holder accepts a soapstone crayon (included), felt pen or pencil

It is used to lay out pipe and structural steel joints

Laterals at any angle, tees, wyes, crosses, elbows any type or size of joint can be quickly and precisely laid out

Pipe from 38 to 450 mm diameter or structural steel members up to 450 mm

It can be used right side up or upside down, depending on the direction of the line to be scribed

The protractor is calibrated on both sides one in degrees, the other in rise-inches-per-foot-to service any type of measurement need

The unit comes with a Structural Adaptor designed to simplify the layout of structural joints, including I-beams, angles, channels, square tubing and similar shapes

The Contour Marker is made from durable, lightweight aluminium. It requires minimal maintenance, only occasional oiling of the joints, to provide long service life

No more complicated mathematical formulas. No more cut and try

No more needless material waste

CodePipe ø

CNT138-450 mm
