Curvomark Marker Contour Std #1

CONTOUR MARKER STANDARD

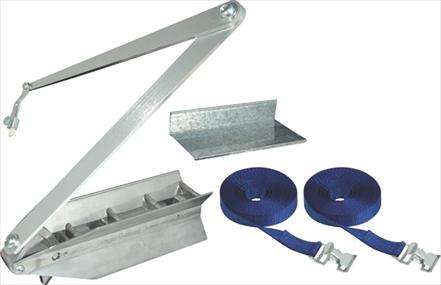

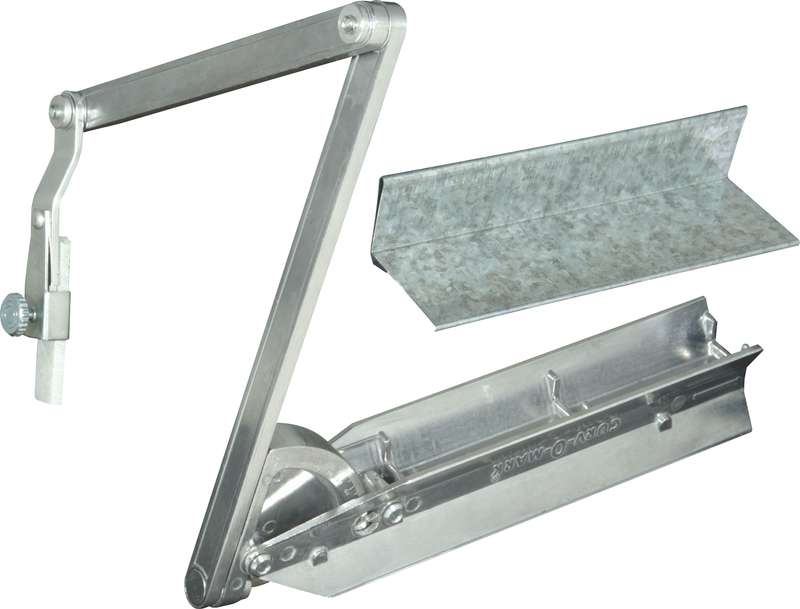

It consists of an X-shaped frame, calibrated protractor, and atriple-jointed marking arm and holder

The holder accepts a soapstone crayon (included), felt pen orpencil

It is used to lay out pipe and structural steel joints

Laterals at any angle, tees, wyes, crosses, elbows - any type or sizeof joint can be quickly and precisely laid out

Pipe from 38 to 450 mm diameter or structural steel members up to 450mm

It can be used right side up or upside down, depending on thedirection of the line to be scribed

The protractor is calibrated on both sides - one in degrees, theother in rise-inches-per-foot-to service any type of measurementneed

The unit comes with a Structural Adaptor designed to simplify thelayout of structural joints, including I-beams, angles, channels, squaretubing and similar shapes

The Contour Marker is made from durable, lightweight aluminium. Itrequires minimal maintenance, only occasional oiling of the joints, toprovide long service life

No more complicated mathematical formulas. No more cut and try

No more needless material waste

Code Pipe ø

CNT1 38-450 mm
