Cutter Hinge Kvb Hw D15 Ce

The Perfect Joint. Now Even More Versatile. The New Basic Structure Connectors And Furniture Connectors For The Domino Df 500 Joining Machine.

Strengths And Benefits

• The Clever Domino System Enables Very Simple And Precise Positioning Of Joints, Thereby Rendering Additional Stops And Positioning Aids Unnecessary. For Working Efficiently And Quickly
• The Connectors' Large Tightening Distance And Long Bolts Make Furniture Assembly Significantly Easier. Cupboard Assembly Is Therefore No Problem, And You Can Do It Easily On Your Own.
• The Flush Screwed Fixture Elements Protect Each Furniture Component From Being Scratched
• Routing And Cutting Tolerances Of Up To 1.4 Mm Are Compensated For Without Problems By The Fixture
• The New Detachable Domino Basic Structure Connectors And Furniture Connectors Are Perfectly Suited For A Panel Thickness Of 18 Mm To 28 Mm

• For Df 500

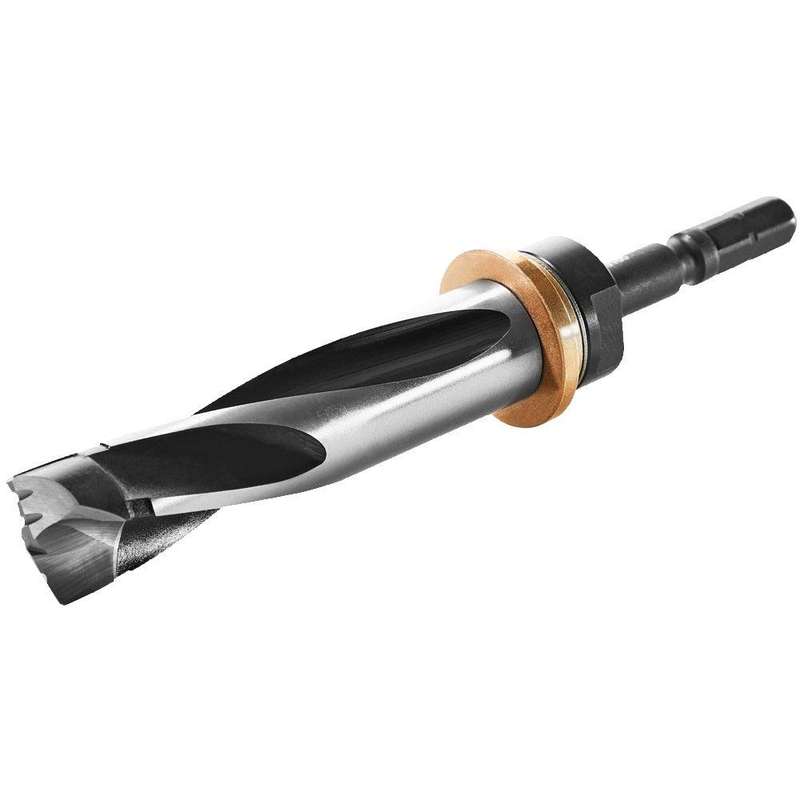

• 15 Mm Hinge Location Cutter Is Required For Drilling Holes In The Surface Of The Domino D 8 Mm Joint Fixture
• Shaft Mount: Centrotec
• The Drill Bit Is Adapted To The Festool Drill Template (203164)

Items Included
Depth Stop, In Self Service Display Pack

Warranty All Inclusive
