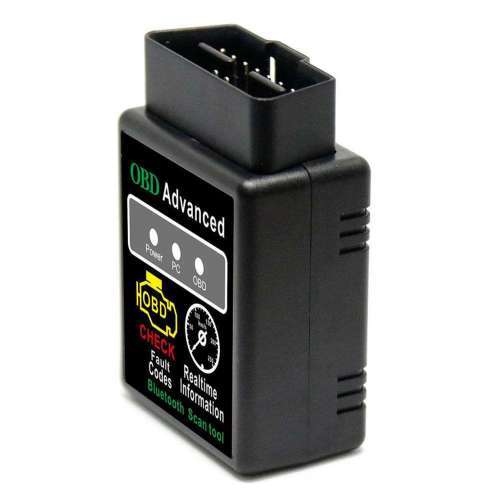

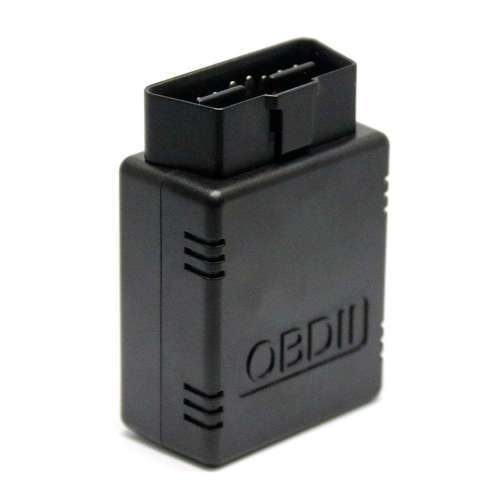

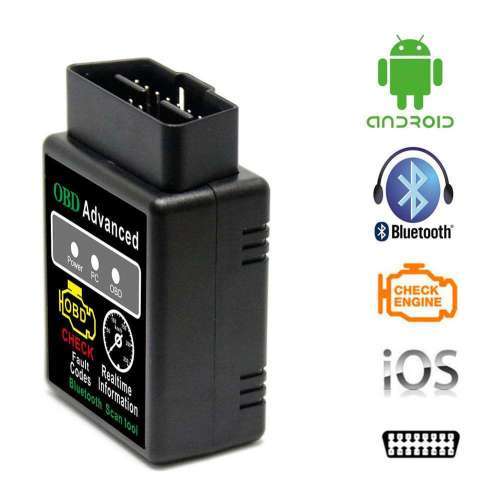

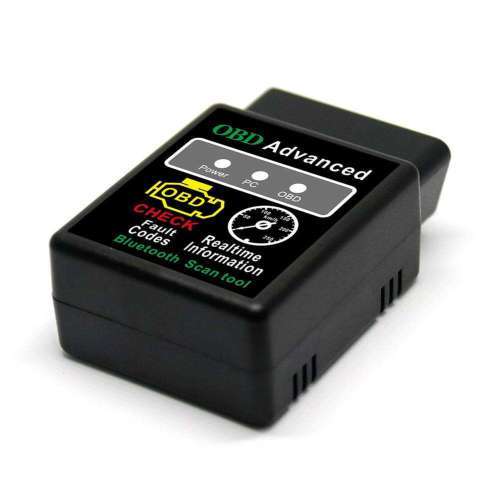

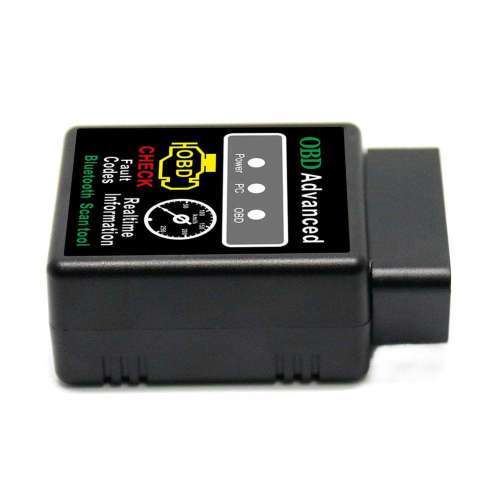

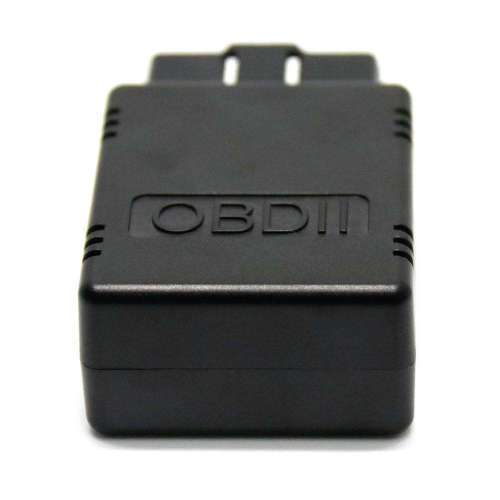

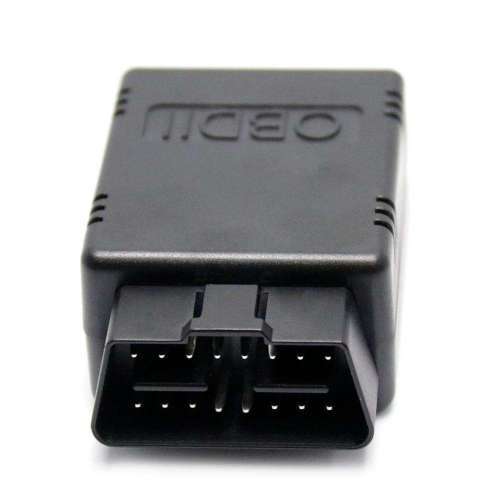

CY-B06 Bluetooth Diagnostic OBDII Reader / Scanner

 Product parameters:

Supply voltage: 12V
Working temperature: -20-80°C
The ELM327 is a standard OBD II automotive engine system diagnostic detector that supports Android (Symbian) PPC (Windows Mobile) Win XP (32-bit) Win 7 (32-bit) and other operating systems. Combined with vehicle detection software, it can read data from various sensors of the car and detect the state of the car in real time, providing real-time and effective reference data for driving safety
Supported OBD2 protocols:
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO 14230-4 KWP (fast init, 10.4 Kbaud)
ISO 15765-4 CAN (11bit ID, 500 Kbaud)
ISO 15765-4 CAN (29bit ID, 500 Kbaud)
ISO 15765-4 CAN (11bit ID, 250 Kbaud)
ISO 15765-4 CAN (29bit ID, 250 Kbaud)

Read error diagnostic code - generic and manufacturer specific, and show their meaning
Clear error code and turn off MIL (Check Engine indicator)
Display current sensor data
contain:
Engine revolutions per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Speed
Short-term fuel conditions
Long-term fuel situation
Intake manifold pressure
Fuel injection time
Intake air temperature
Air speed
Throttle absolute position
Fuel system status
Fuel pressure
Fuel consumption monitoring

Supported models: Universal, supporting most models on the market

Package Content:

packing list

CY-B06 Bluetooth Diagnostic OBDII Reader / Scanner*1
