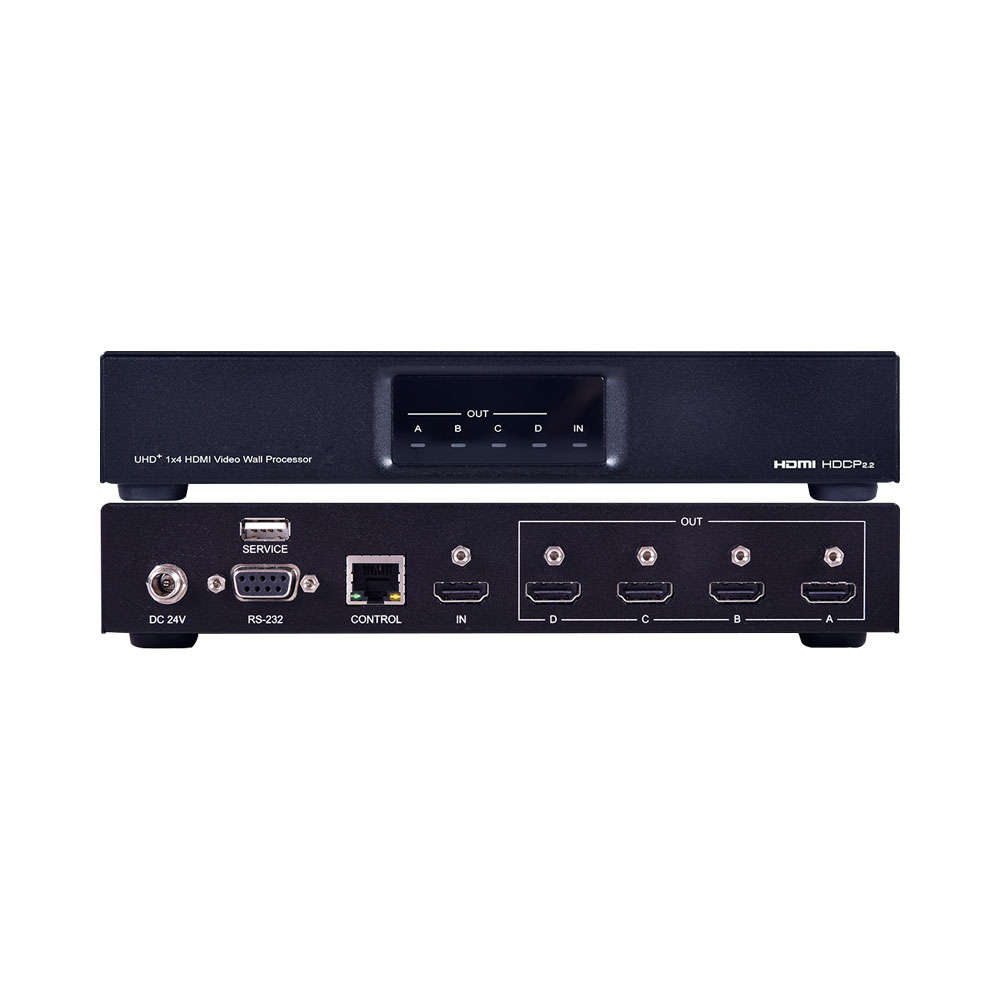

Cyp Cdps-4Kq-Ad 4K 1X4 Hdmi Video Wall Processor

CYP CDPS-4KQ-AD | 4K 1×4 HDMI Video Wall Processor

This unit can take any standard 4K HDMI source and generate a high quality 2×2 video wall with bezel compensation and full audio bypass. Input supports 4K HDMI video, up to and including 4K @60Hz (4:4:4, 8-bit) as well as 10/12-bit. Each of the 4 outputs supports resolutions fixed at 1080p @60Hz to generate a true 4K video wall with RS-232 port support for event-triggered commands. Built-in advanced EDID management options including internal, external and user configurations as well as advanced HDCP processing allows this video wall unit to handle almost any source situation. A dedicated PC application allows the user to fully customize the video wall and associated features. Multiple control interfaces are available including OSD, RS-232, Telnet and PC tool.

FEATURES:

• 1× HDMI input supports 4K sources up to 18Gbps (600MHz)
• 4× HDMI output supports resolutions fixed at 1080p @60Hz
• Input supports 4K resolutions up to 4096 × 2160 @60Hz (4:4:4, 8-bit)
• Input supports 4K @24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit colour (HDR is automatically converted to SDR for 1080p output)
• Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
• Basic signal event automation (via RS-232) to connected HDMI display
• Dedicated PC application for easy control of the unit

SPECIFICATIONS:
