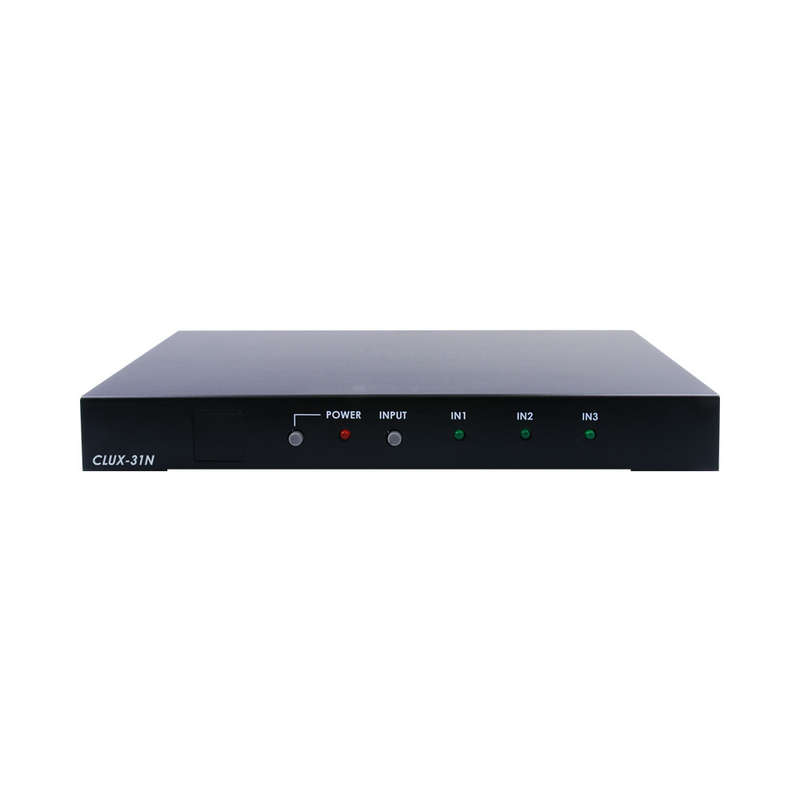

CYP CLUX-31N | HDMI 3-to-1 Switcher
The HDMI 3-to-1 Switcher allows 3× HDMI sources to be connected to the same HDMI TV/Monitor input. It has IR, automatic and manual input selection and a 'last memory' function that remembers the last input selection used. The EDID bypass function ensures the best resolution. The switcher is also DVI compatible with the use of a DVI to HDMI adapter.
FEATURES:
SPECIFICATIONS:
INTERFACE | |
Input Port | 3× HDMI |
Output Port | 1× HDMI |
VIDEO | |
HDMI Compliance | HDMI 1.4 (DVI 1.0) |
HDCP Compliance | 1.4 |
Input Signal Types | 1080p @60Hz 12-bit |
Output Signal Type | 1080p @60Hz 12-bit |
RESOLUTIONS | |
Maximum Input | HDMI 1920 × 1200 @60Hz |
Maximum Output | HDMI 1920 × 1200 @60Hz |
POWER | |
Power Supply | 5V 1A DC |
Power Consumption | 3.2W |
ENCLOSURE | |
Chassis Material | Aluminium |
Chassis ColoUr | Black |
Dimensions (W × H × D) | 200 × 30 × 106mm |
Weight | 266g |
FIELD FIRMWARE UPDATE | |
Interface | PCB on board, uses RS232 |
