DCT-21 - HD Audio Center
The HD Audio Center from Cypress Technology is an excellent device for converting digital and analog audio sources. This Audio device allows for the simultaneous conversion of digital audio input to analog audio output or analog audio input to digital audio output. The HD Audio Center from Cypress Technology is useful for a number of applications, for example, if you are using a digital visual entertainment system (i.e. HDTV, Blu-Ray/DVD Player, game consoles, etc) and would like to use analog speaks for the sound system, this Cypress product allows you to use those two systems together, and vice versa. These two conversions can be done simultaneously as well as separately, and the HD Audio Center can also split the signal from the audio source being converted to a range of other audio sources, as it supports 2CH PCM audio, HDMI, USB Audio 2.0, Optical, and Coaxial digital input/output too.

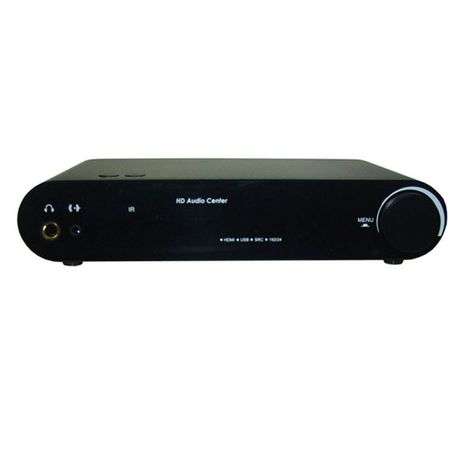

For professionals the Ti TPA6120A2 headphone amplifier, XLR (Low noise Professional Balance) and 6.3mm headphone jack offer unparalleled audio quality you still have access to the more traditional 3.5mm (RCA input/output) headphone jack. It features a sampling rate converter to 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz or 192KHz (up to 24 bits) output this device, and a highly accurate PLL, a low Jitter reduction clock system, and an OLED display and IR remote for controlling the device.
Specifications
Input Ports
1x HDMI, 1x USB, 1x Coaxial, 1x Optical, 1x R/L & 1x Line-in.

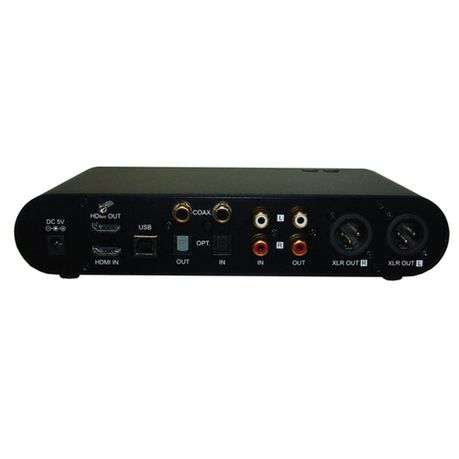

Output Ports
1x HDMI, 1x USB, 1x Coaxial, 1x Optical, 1x R/L & 1x XLR, 1x6.3mm headphone jack.
HDMI Video
Bypass
Digital Audio Input/Output
PCM 2CH
Stereo Input/Output Level
2Vrms
Stereo XLR Input/Output Level
4Vrms
Headphone Impedance
16? ~ 600?
ESD Protection
Human body model:
± 8kV (air-gap discharge)
± 6kV (contact discharge)
Power Supply
12V DC/1.25A (US/EU standards, CE/FCC/UL certified)
Dimensions (mm)
108(W) x 221(D) x 41(H)
Weight
680g
Chassis Material
Aluminum
Silkscreen Colour
Black
Power Consumption
6W
What's in the box
1 x CYP HD Audio Center
