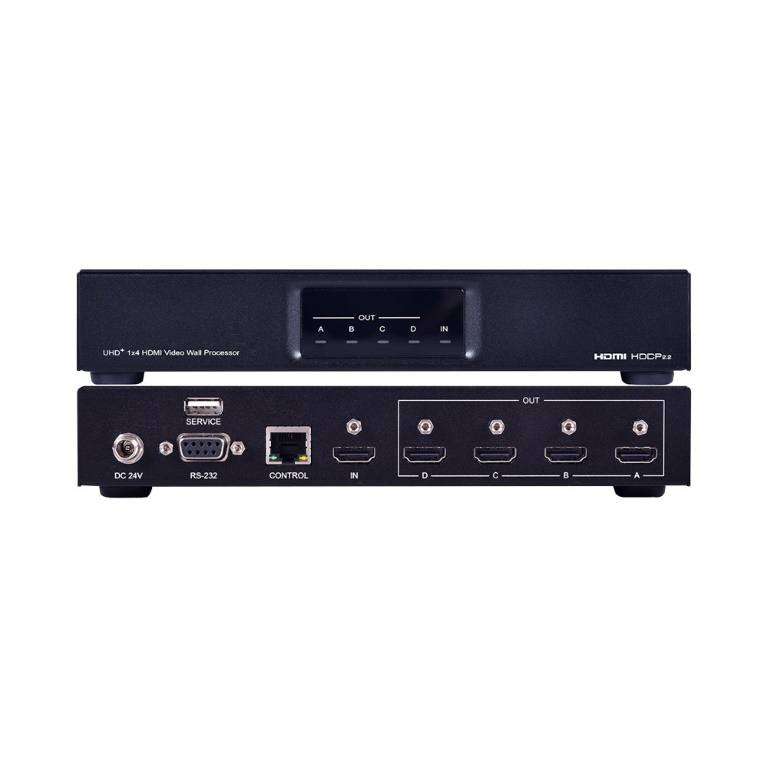

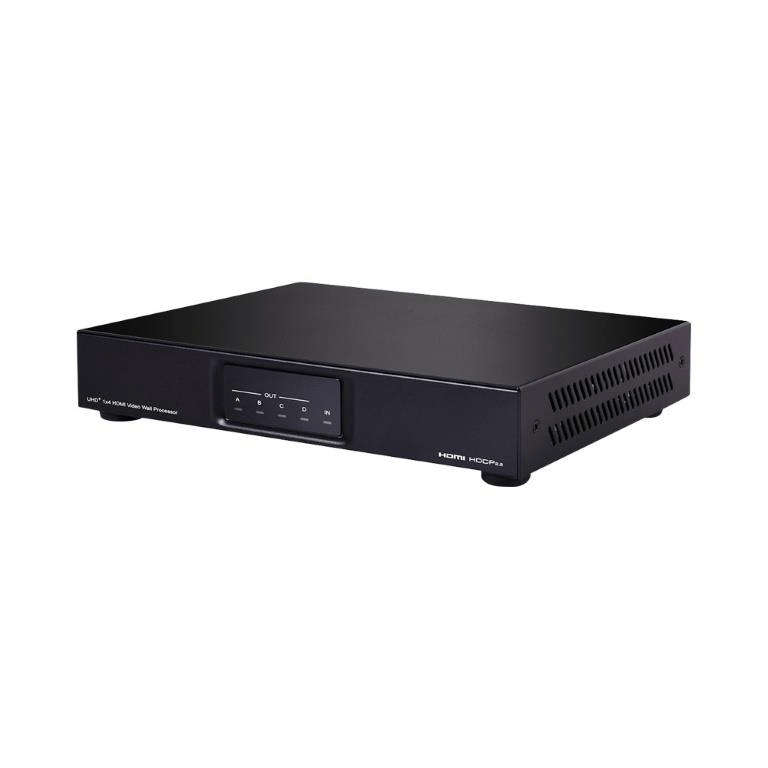

Cypress UHD+ 1x4 HDMI Video Wall Processor CNV-CDPS-4KQ-AD
This unit can take any standard 4K HDMI source and generate a high quality 2×2 video wall with bezel compensation and full audio bypass. Input supports 4K HDMI video, up to and including 4K -60Hz (4:4:4, 8-bit) as well as 10/12-bit. Each of the 4 outputs supports resolutions fixed at 1080p -60Hz to generate a true 4K video wall with RS-232 port support for event-triggered commands. Built-in advanced EDID management options including internal, external and user configurations as well as advanced HDCP processing allows this video wall unit to handle almost any source situation. A dedicated PC application allows the user to fully customize the video wall and associated features. Multiple control interfaces are available including OSD, RS-232, Telnet and PC tool.
Features
- 1x HDMI input supports 4K sources up to 18Gbps (600MHz)
- 4x HDMI output supports resolutions fixed at 1080p -60Hz
- Input supports 4K resolutions up to 4096 x 2160 -60Hz (4:4:4, 8-bit)
- Input supports 4K -24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit colour (HDR is automatically converted to SDR for 1080p output)
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
- Basic signal event automation (via RS-232) to connected HDMI display
- Dedicated PC application for easy control of the unit
Technical Specification

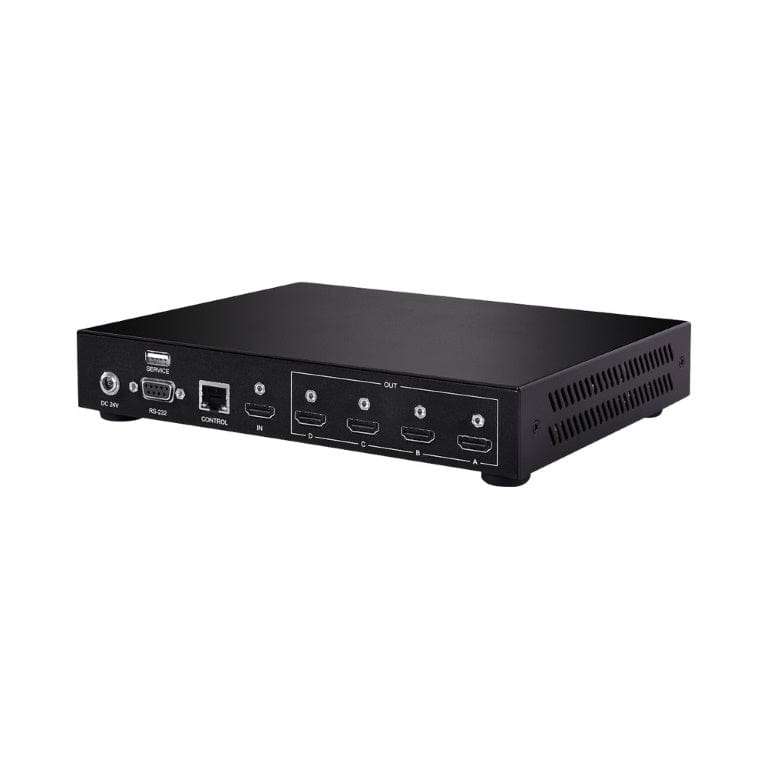

Interfaces
- 1x HDMI Input
- 4x HDMI Output
- 1x I/O Control (RJ45)
- 1x RS232
- 1x USB Service Port
Video
HDMI Compliance HDMI 2.0 (DVI 1.0)
HDCP Compliance: 2.x
Input Signal Type: 4096 x 2160 -60Hz 8-bit YUV 4:4:4
Output Signal Type: 1920 x 1080 -60Hz 8-bit
Resolutions
Maximum Input: HDMI 4096 x 2160 -60Hz
Maximum Output: HDM: 1920 x 1080 -60Hz
Audio
Input Signal Types: HDMI 2CH / 7.1CH LPCM, Bitstream, HD Bitstream
Output Signal Types: HDMI 2CH / 7.1CH LPCM, Bitstream, HD Bitstream
Enclosure
Chassis Material: Steel
Chassis Colour: Black
Weight: 652g
Power
Power Supply: 24V 0.75A
Power Consumption: 9W
Field Firmware Update
- USB Flash Drive, PC application
