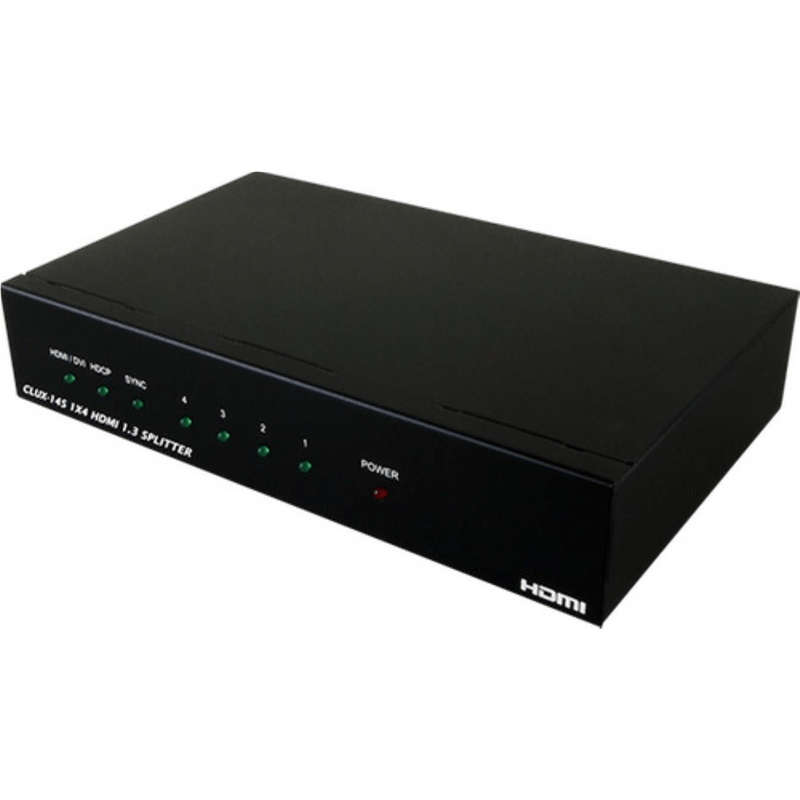

Cypress V1.3 1x4 HDMI Splitter

Specifications

Each product in this series is compatible with HDMI specifications, a cutting-edge technology that defines the supports to transfer Deep Color (10-bit and12-bit ) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps).
Besides splitting and distributing, the HDMI DA series also does signal amplification and equalization, so as to provide
high-performance I/O of audio and video. Each of the buffered outputs can run up to 30 meters and can be cascaded.

• HDMI 1.3, HDCP1.1, and DVI1.0 compliant
• Deep Color video up to 12-bit, 1080p-60 Hz
• One HDMI source to connect up to four HDMI displays simultaneously
• HDCP keysets allow each output to work independently when connecting to an HDMI display
• Splits an HDMI source up to four outputs without signal loss
• Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission (32-192 kHz Fs sample rate)
• Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p
• HDMI cable distance test with 1080p resolution: Input/Output source can run up to 30M/5.1CH
• Can select EDID source from TV or this splitter
• Fully HDCP compliant
• Inputs 1x HDMI [1x Uncompressed AV and Data]
• Outputs 4x HDMI [4x Uncompressed AV and Data]
• PSU: 5V/2.6A
