CYS-S0150D 15KG Metal Gear Digital Servo for RC Buggy Car Truck Truggy parts

CYS-S0150D 15KG Metal Gear Digital Servo for RC Buggy Car Truck Truggy parts


Specification:
? Item No. CYS-S0150D Type Analog Weight 56g Size 40.1*20.1*38.8mm Control System (+)Pulse Width Control 1500usec Neutral Required Pulse Operating Voltage 6.0~7.4Volts Operating Temperature Range (-)10 to +50 degree C Operating Speed (6.0V) 0.16sec/60?ﾣ at no load Operating Speed (7.4V) 1.4sec/60?ﾣ at no load Stall Torque (6.0V) 14kg.cm Stall Torque (7.4V) 15kg.cm
? Operating Angle 45deg.one side pulse traveling 500 usec 360 Modifiable No Direction Anticlockwise/Pulse Traveling 1000~2000usec Current Drain (6.0V) 20mA/idle and 200mA no load operating Current Drain (7.4V) 20mA/idle and 300mA no load operating Stall Current 2.7A/3.2A Dead Band Width 4usec Motor Type 3 Pole Ferrite Drive Bearing Type Dual Ball Bearing Horn gear spline 25T Gear Type Metal

Important Notes: ? -Refer to the figure when installing the servo accessories. -For engine powered airplanes and boats, rubber must be used to reduce vibration. - Please choose correct model for your application. -Torque over-loaded will damage the servo's mechanism-.? - Keep the servo clean and away from dust, corrosive gas and humid air.

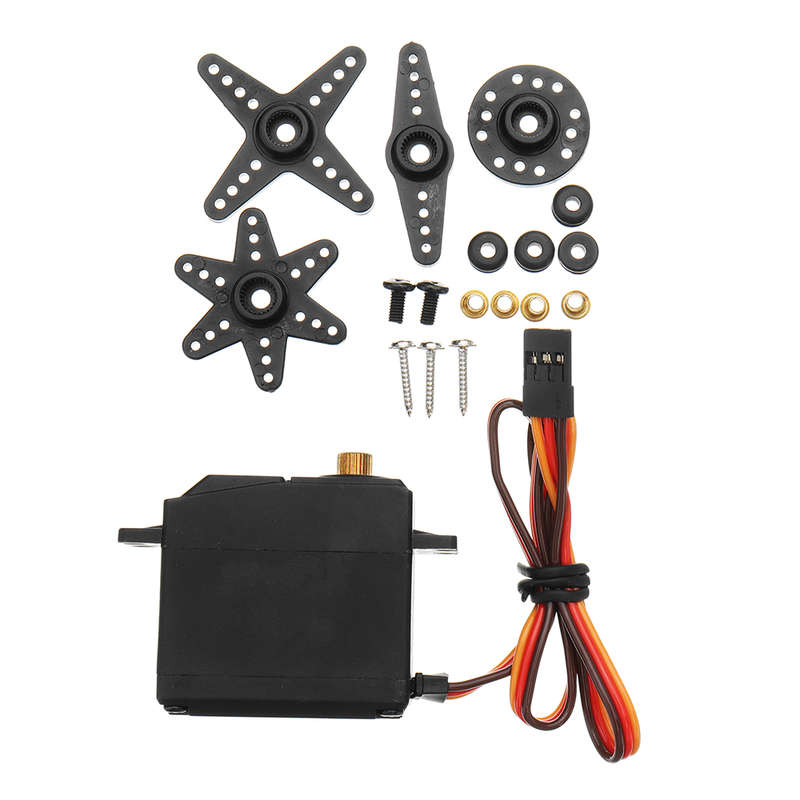

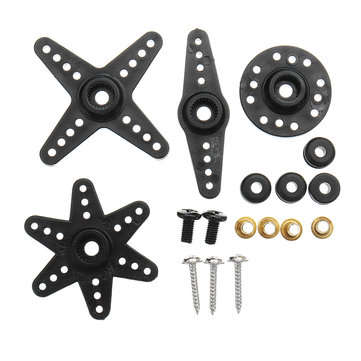

Package Included: 1 *?CYS-S0150D 15KG Digital Servo 1 * Spare Parts Set
